2012 FM Auto Evantra Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting FM Auto Evantra wheels? This page gives the 2012 FM Auto Evantra bolt pattern (5x112), centre bore, factory rim size and the offset range for aftermarket and forged FM Auto Evantra rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
FM Auto Evantra (2012): 5x112 bolt pattern, 66.5mm center bore. Factory wheels: F: 20x8.5J R: 20x11.0J. Reference fitment ranges.
Bolt Pattern5x112
Center Bore66.5mm
Wheel Load Rating700–850 kg/wheel (Performance / Sports Car segment reference)
Year2012
CategorySupercar
Data check: the bolt pattern and center bore on this page have not yet been confirmed by a second independent source. Measure your hub or ask us before ordering. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | F: 20x8.5J R: 20x11.0J |
| Flush Fitment | F 20x9.0J ET30 / R 20x11.5J ET25 |
| Maximum Aggressive | F 20x9.5J ET25 / R 21x12.0J ET20 |
Forged wheels for the FM Auto EvantraMachined to the 5x112 bolt pattern and 66.5 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
Every gram of rotational mass on a supercar fights the acceleration, braking, and rotational inertia numbers the factory spent enormous engineering effort achieving. A forged wheel for the FM Auto Evantra holds the OE strength rating at meaningfully less weight, which is a real, measurable performance gain rather than a cosmetic one.
The FM Auto Evantra runs a 5x112 bolt pattern, 66.5mm center bore, and a F: 20x8.5J wheel from the factory. Our Flush Fitment reference is F 20x9.0J ET30 / R 20x11.5J ET25, which tucks the tire under the fender lip on a stock-height FM Auto Evantra. Our Maximum Aggressive reference is F 20x9.5J ET25 / R 21x12.0J ET20 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
FM Auto Evantra OE Wheel Specs
The 2012 FM Auto Evantra (Supercar) uses a 5x112 bolt pattern with a 66.5mm center bore. Factory wheels are F: 20x8.5J R: 20x11.0J.
Why the factory spec works for most owners:
- Balances ride comfort with everyday fuel efficiency
- A widely used size in this segment, so tire and wheel availability stays strong
- Keeps unsprung weight low for stable, predictable handling
- Maintains clearance for the factory brake calipers and suspension components
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the FM Auto Evantra (2012) we drill the 5x112 pattern and cut the centre bore to 66.5mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 6,436 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look with minimal rubbing, F 20x9.0J ET30 / R 20x11.5J ET25 is the recommended starting point on a stock or mildly lowered FM Auto Evantra.
Maximum Aggressive Fitment
F 20x9.5J ET25 / R 21x12.0J ET20 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
5-Tier Configuration Options
A Factory-Style F 20x8.5J ET35 / R 20x11.0J ET30
Recommended setup: F 20x8.5J ET35 / R 20x11.0J ET30 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
B Comfortable Upgrade F 20x9.0J ET33 / R 20x11.5J ET28
Recommended setup: F 20x9.0J ET33 / R 20x11.5J ET28 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C Balanced / Flush Fit F 20x9.0J ET30 / R 20x11.5J ET25
Recommended setup: F 20x9.0J ET30 / R 20x11.5J ET25 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D Aggressive F 20x9.5J ET28 / R 21x12.0J ET23
Recommended setup: F 20x9.5J ET28 / R 21x12.0J ET23 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E Max Aggressive F 20x9.5J ET25 / R 21x12.0J ET20
Recommended setup: F 20x9.5J ET25 / R 21x12.0J ET20 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | F 20x8.5J ET35 / R 20x11.0J ET30 | F 20x9.0J ET33 / R 20x11.5J ET28 | F 20x9.0J ET30 / R 20x11.5J ET25 | F 20x9.5J ET28 / R 21x12.0J ET23 | F 20x9.5J ET25 / R 21x12.0J ET20 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: F 20x8.5J ET35 / R 20x11.0J ET30
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: F 20x9.0J ET30 / R 20x11.5J ET25
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: F 20x9.5J ET25 / R 21x12.0J ET20
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most FM Auto Evantra owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: F 20x8.5J ET35 → ~6.13″ F backspacing, R 20x11.0J ET30 → ~7.18″ R backspacing
- Flush: F 20x9.0J ET30 → ~6.18″ F backspacing, R 20x11.5J ET25 → ~7.23″ R backspacing
- Max: F 20x9.5J ET25 → ~6.23″ F backspacing, R 21x12.0J ET20 → ~7.29″ R backspacing
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact FM Auto spec, or want a wheel built to a custom offset for your FM Auto Evantra? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the FM Auto Evantra (2012)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x112 pattern and the 66.5mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose.
Designs we already tool for the 5x112 pattern — each one is re-cut to your sizes and offsets:
Mercedes-Benz OEM-Style Satin Black Machined 5 Y-Spoke Forged Wheels – Mercedes S-Class / CLS Fitment (5-Lug)
Mercedes-Benz OEM-Style Gloss Black Hole Disc Windowed Ring Forged Wheels – Mercedes G-Class / GLS Fitment (5-Lug)
APEX VS-5RS Matte Black 1-Piece Forged Wheels – Mercedes-AMG GT Fitment (21-22in, 5x112)
Mercedes-Benz OEM-Style Polished 15-Spoke Forged Wheels – Mercedes CLA / A-Class Fitment (5-Lug)Frequently Asked Questions
What bolt pattern (PCD) does the FM Auto Evantra use?
The 2012 FM Auto Evantra uses a 5x112 bolt pattern.
How many lug bolts does the FM Auto Evantra use?
The FM Auto Evantra uses a 5-lug bolt pattern (5x112), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the FM Auto Evantra?
The FM Auto Evantra's center bore is 66.5mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the FM Auto Evantra?
Factory wheels on the FM Auto Evantra are F: 20x8.5J R: 20x11.0J.
What is the biggest wheel size I can fit on my FM Auto Evantra without rubbing?
The most aggressive fitment we recommend without fender work is F 20x9.5J ET25 / R 21x12.0J ET20. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the FM Auto Evantra?
For a flush look with minimal to no rubbing, we recommend F 20x9.0J ET30 / R 20x11.5J ET25 as a starting point on a stock or mildly lowered FM Auto Evantra.
Do I need wheel spacers for my FM Auto Evantra?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my FM Auto Evantra?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 6.18" backspacing up front and 7.23" in the rear.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my FM Auto Evantra?
Yes — the FM Auto Evantra's factory and our recommended flush/max fitments already use staggered sizing (different width front and rear), and ANKUSI can forge matching staggered sets to your target offsets.
Vehicles With the Same Hub as the FM Auto Evantra (5x112, 66.5 mm Bore)
In our database, 167 other vehicle entries from 6 makes use exactly the same 5x112 bolt pattern and 66.5 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x112 is used by 21.6% of the vehicle entries in our database (1,407 of 6,503); 11.9% of those also use a 66.5 mm center bore.
Hub-Centric Rings for a 66.5 mm Center Bore
A wheel with a center bore larger than 66.5 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 66.6 mm | 66.6 → 66.5 mm |
| 67.1 mm | 67.1 → 66.5 mm |
| 70.1 mm | 70.1 → 66.5 mm |
| 70.5 mm | 70.5 → 66.5 mm |
| 73.1 mm | 73.1 → 66.5 mm |
ANKUSI forged wheels are bored to exactly 66.5 mm for this vehicle, so no ring is needed.
Sources and Last Update
Data checked against: avtoreference.com, tirewheelguide.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 20x8.5 wheels · 20 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the FM Auto Evantra
Every design below is forged to order, so it can be machined to the FM Auto Evantra's 5x112 bolt pattern and 66.5 mm center bore, with the width and offset calculated for your setup.
APEX-Style Matte Black 10 Split-Spoke Forged Wheels
Porsche 911 / M3 Fitment · 5-Lug

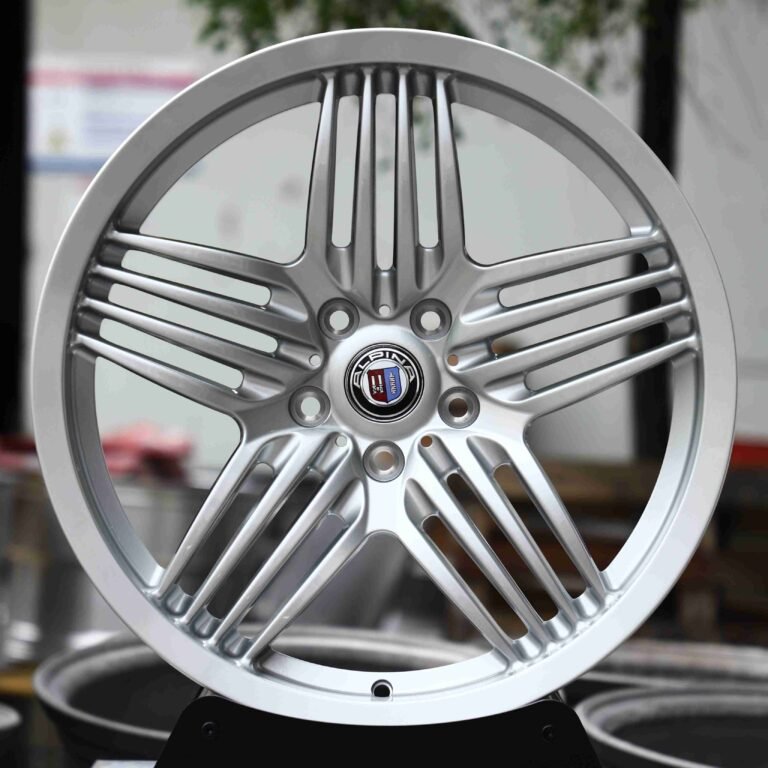

Alpina-Style Brushed Silver Triple 5-Spoke Forged Wheels
