1969 Ferrari Dino 246 GT L Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Ferrari Dino 246 GT L wheels? This page gives the 1969 Ferrari Dino 246 GT L bolt pattern (5x108), centre bore, factory rim size and the offset range for aftermarket and forged Ferrari Dino 246 GT L rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Ferrari Dino 246 GT L (1969): 5x108 bolt pattern, 67.1mm center bore. Factory wheels: F: 14x6.5J R: 14x6.5J. Reference fitment ranges.
Bolt Pattern5x108
Wheel Bolt/NutM14x1.5 Bolt
Center Bore67.1mm
Wheel Load Rating650–750 kg/wheel (Standard Passenger Car segment reference)
Caliper TypeBrembo fixed multi-piston aluminum monoblock caliper (OEM, standard across Ferrari lineup)
Year1969
CategoryClassic
Data check: the bolt pattern and center bore on this page have not yet been confirmed by a second independent source. Measure your hub or ask us before ordering. How we verify
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | F: 14x6.5J R: 14x6.5J |
| Flush Fitment | 15x7.0J at ET-5 offset |
| Maximum Aggressive | 15x7.5J at ET-10 offset |
Forged Wheel Designs for the Ferrari Dino 246 GT L
Every design below is forged to order, so it can be machined to the Ferrari Dino 246 GT L's 5x108 bolt pattern and 67.1 mm center bore, with the width and offset calculated for your setup.
Silver Split Mesh Forged Wheels
Monoblock · Silver

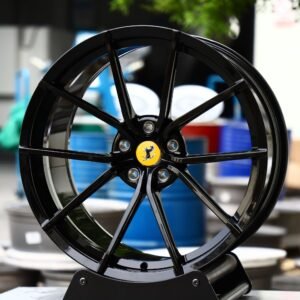

Ferrari OEM-Style Gloss Black 5-Spoke Machined Face Forged Wheels
Monoblock · Gloss Black
HRE Performance P200-Style Metallic Gray 10 Y-Spoke Parallel Spoke Cut Forged Wheels
Replica · Metallic Gray
Gloss Black Multi-Spoke Forged Wheels
Monoblock · Gloss Black
HRE-Style Gloss Black Web-Mesh Forged Wheels
Replica · Gloss Black
HRE-Style Gunmetal Web-Mesh Forged Wheels
Replica · Gunmetal
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
Most of the engineering value in a forged wheel over a cast one shows up in rotational mass, not outright strength — both can meet the same load rating, but the forged piece gets there lighter. On a sedan platform tuned for everyday balance, that weight saving is felt directly in steering response and ride quality.
The Ferrari Dino 246 GT L runs a 5x108 bolt pattern, 67.1mm center bore, and a F: 14x6.5J wheel from the factory. Our Flush Fitment reference is 15x7.0J ET-5, which tucks the tire under the fender lip on a stock-height Ferrari Dino 246 GT L. Our Maximum Aggressive reference is 15x7.5J ET-10 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Ferrari Dino 246 GT L OE Wheel Specs
The 1969 Ferrari Dino 246 GT L (Classic) uses a 5x108 bolt pattern with a 67.1mm center bore. Factory wheels are F: 14x6.5J R: 14x6.5J.
Why the factory spec works for most owners:
- Balances ride comfort with everyday fuel efficiency
- A widely used size in this segment, so tire and wheel availability stays strong
- Keeps unsprung weight low for stable, predictable handling
- Maintains clearance for the factory brake calipers and suspension components
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Ferrari Dino 246 GT L (1969) we drill the 5x108 pattern and cut the centre bore to 67.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: F 14x6.5J ET0 → ~3.75″ F backspacing, R 14x6.5J ET0 → ~3.75″ R backspacing
- Flush: 15x7.0J ET-5 → ~3.8″ backspacing
- Max: 15x7.5J ET-10 → ~3.86″ backspacing
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Ferrari spec, or want a wheel built to a custom offset for your Ferrari Dino 246 GT L? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Frequently Asked Questions
What bolt pattern (PCD) does the Ferrari Dino 246 GT L use?
The 1969 Ferrari Dino 246 GT L uses a 5x108 bolt pattern.
How many lug bolts does the Ferrari Dino 246 GT L use?
The Ferrari Dino 246 GT L uses a 5-lug bolt pattern (5x108), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Ferrari Dino 246 GT L?
The Ferrari Dino 246 GT L's center bore is 67.1mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Ferrari Dino 246 GT L?
Factory wheels on the Ferrari Dino 246 GT L are F: 14x6.5J R: 14x6.5J.
What is the biggest wheel size I can fit on my Ferrari Dino 246 GT L without rubbing?
The most aggressive fitment we recommend without fender work is 15x7.5J at ET-10 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Ferrari Dino 246 GT L?
For a flush look with minimal to no rubbing, we recommend 15x7.0J at ET-5 offset as a starting point on a stock or mildly lowered Ferrari Dino 246 GT L.
Do I need wheel spacers for my Ferrari Dino 246 GT L?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Ferrari Dino 246 GT L?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 3.8" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Ferrari Dino 246 GT L?
The Ferrari Dino 246 GT L runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
