2015 Datsun mi-DO Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Datsun mi-DO wheels? This page gives the 2015 Datsun mi-DO bolt pattern (4x98), centre bore, factory rim size and the offset range for aftermarket and forged Datsun mi-DO rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Datsun mi-DO (2015): 4x98 bolt pattern, 58.6mm center bore. Factory wheels: 14x5.5J F/R. Reference fitment ranges.
Bolt Pattern4x98
Wheel Bolt/NutM12x1.25 Nut
Center Bore58.6mm
Wheel Load Rating650–750 kg/wheel (Standard Passenger Car segment reference)
Year2015
CategoryHatchback
✓ Verified by ANKUSI's Engineering Team — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 14x5.5J F/R |
| Flush Fitment | 15x6.5J at ET30 offset |
| Maximum Aggressive | 16x7.0J at ET28 offset |
Forged wheels for the Datsun mi-DOMachined to the 4x98 bolt pattern and 58.6 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
Hot hatches and performance compacts are built around quick direction changes, so rotational mass at the wheel has an outsized effect on how the car actually feels to drive. Forging trims that mass while holding the same strength margin as the factory wheel, which is exactly the trade-off this kind of platform rewards.
The Datsun mi-DO runs a 4x98 bolt pattern, 58.6mm center bore, and a 14x5.5J, front and rear, wheel from the factory. Our Flush Fitment reference is 15x6.5J ET30, which tucks the tire under the fender lip on a stock-height Datsun mi-DO. Our Maximum Aggressive reference is 16x7.0J ET28 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Datsun mi-DO OE Wheel Specs
The 2015 Datsun mi-DO (Hatchback) uses a 4x98 bolt pattern with a 58.6mm center bore. Factory wheels are 14x5.5J F/R.
Why the factory spec works for most owners:
- Keeps the factory ride quality and noise levels intact
- A common fitment for this class, so replacement tires are easy to source
- Preserves clearance around the OE brakes and suspension geometry
- Delivers predictable, easy-to-live-with handling for daily use
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Datsun mi-DO (2015) we drill the 4x98 pattern and cut the centre bore to 58.6mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 6,436 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look with minimal rubbing, F/R 15x6.5J ET30 is the recommended starting point on a stock or mildly lowered Datsun mi-DO.
Maximum Aggressive Fitment
F/R 16x7.0J ET28 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
5-Tier Configuration Options
A Factory-Style 14x5.5J ET35
Recommended setup: 14x5.5J ET35 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
B Comfortable Upgrade 15x6.0J ET33
Recommended setup: 15x6.0J ET33 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C Balanced / Flush Fit 15x6.5J ET30
Recommended setup: 15x6.5J ET30 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D Aggressive 16x7.0J ET29
Recommended setup: 16x7.0J ET29 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E Max Aggressive 16x7.0J ET28
Recommended setup: 16x7.0J ET28 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | 14x5.5J ET35 | 15x6.0J ET33 | 15x6.5J ET30 | 16x7.0J ET29 | 16x7.0J ET28 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: 14x5.5J ET35
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: 15x6.5J ET30
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: 16x7.0J ET28
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most Datsun mi-DO owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: 14x5.5J ET35 → ~4.63″ backspacing
- Flush: 15x6.5J ET30 → ~4.93″ backspacing
- Max: 16x7.0J ET28 → ~5.1″ backspacing
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Datsun spec, or want a wheel built to a custom offset for your Datsun mi-DO? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Datsun mi-DO (2015)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 4x98 pattern and the 58.6mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose — most Datsun orders on this platform land somewhere between the 15x6.5J ET30 flush setup and the 16x7.0J ET28 aggressive setup referenced above.
Designs we already tool for the 4x98 pattern — each one is re-cut to your sizes and offsets:

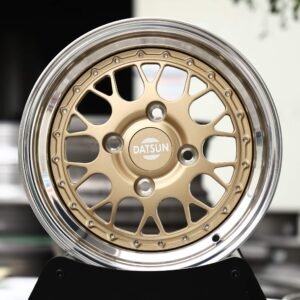

Datsun OEM-Style Gold Cross-Spoke Mesh 2-Piece Polished Lip Forged Wheels – Datsun on-DO / mi-DO Fitment (4-Lug)
Rays-Style Gunmetal Mesh Polished Deep Lip Forged Wheels – Fiat 500 / Mini Cooper Fitment (4-Lug)
APEX-Style Bright Silver 8 Twin-Spoke Mesh Forged Wheels – Fiat 500 / Mini Cooper Fitment (4-Lug)
Nissan Micra / Alfa Romeo MiTo Forged Wheels – Black / Machined 4-Spoke (4-Lug)Frequently Asked Questions
What bolt pattern (PCD) does the Datsun mi-DO use?
The 2015 Datsun mi-DO uses a 4x98 bolt pattern.
How many lug bolts does the Datsun mi-DO use?
The Datsun mi-DO uses a 4-lug bolt pattern (4x98), so you need a 4-lug forged wheel to bolt straight on.
What is the center bore size on the Datsun mi-DO?
The Datsun mi-DO's center bore is 58.6mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Datsun mi-DO?
Factory wheels on the Datsun mi-DO are 14x5.5J F/R.
What is the biggest wheel size I can fit on my Datsun mi-DO without rubbing?
The most aggressive fitment we recommend without fender work is 16x7.0J at ET28 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Datsun mi-DO?
For a flush look with minimal to no rubbing, we recommend 15x6.5J at ET30 offset as a starting point on a stock or mildly lowered Datsun mi-DO.
Do I need wheel spacers for my Datsun mi-DO?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Datsun mi-DO?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 4.93" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Datsun mi-DO?
The Datsun mi-DO runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
