2024 Chevrolet Trax Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Chevrolet Trax wheels? This page gives the 2024 Chevrolet Trax bolt pattern (5x115), centre bore, factory rim size and the offset range for aftermarket and forged Chevrolet Trax rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2024 Chevrolet Trax uses a 5x115 bolt pattern with a 70.3 mm centre bore and M12x1.5 lug nuts. Factory wheels: 18x7.5J at ET42, front and rear. For aftermarket wheels, 19x8.5J ET38 sits flush and 20x9.0J ET35 is the most aggressive fit.
Forged wheels for the 2024 Chevrolet Trax — drilled 5x115 with a 70.3 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in 20–25 days.
Get a quote for this car
Chevrolet Trax (2024): 5x115 bolt pattern, 70.3mm center bore. Factory wheels: 18x7.5J at ET42 offset, front and rear. Reference fitment ranges.
Bolt Pattern5x115
Wheel Bolt/NutM12x1.5 Nut
Center Bore70.3mm
Wheel Load Rating700–850 kg/wheel (Performance / Sports Car segment reference)
Year2024
Category5-Lug Performance Tuner (Branded Wheels)
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 25, 2026. How we verify
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 18x7.5J at ET42 offset, front and rear |
| Flush Fitment | 19x8.5J at ET38 offset |
| Maximum Aggressive | 20x9.0J at ET35 offset |
Forged Wheel Designs for the Chevrolet Trax
Every design below is forged to order, so it can be machined to the Chevrolet Trax's 5x115 bolt pattern and 70.3 mm center bore, with the width and offset calculated for your setup.

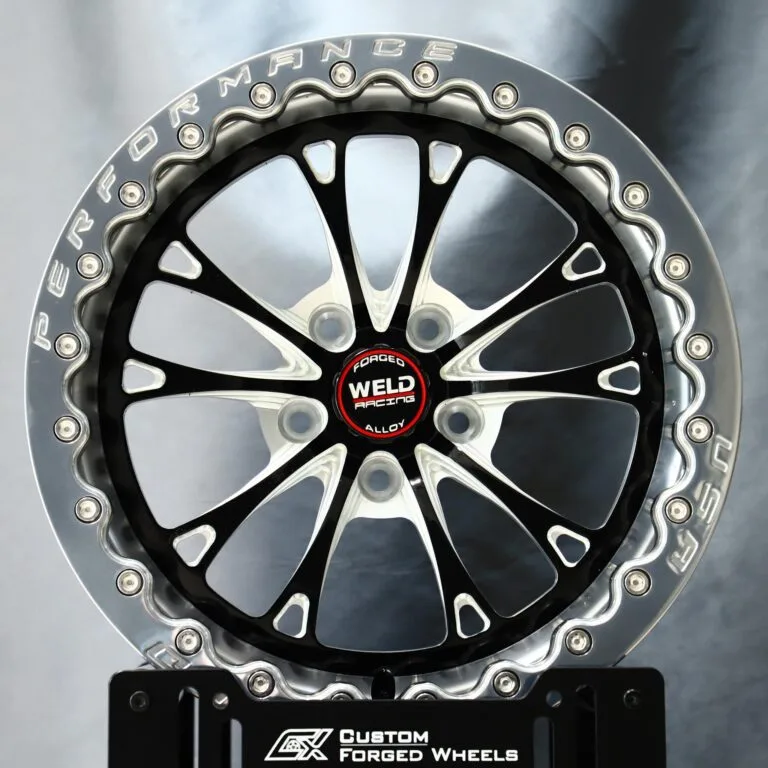

Weld Racing-Style Gloss Black Machined 10 Y-Spoke Polished-Ring Beadlock Forged Drag Racing Wheels
Drag Racing · Custom Finish

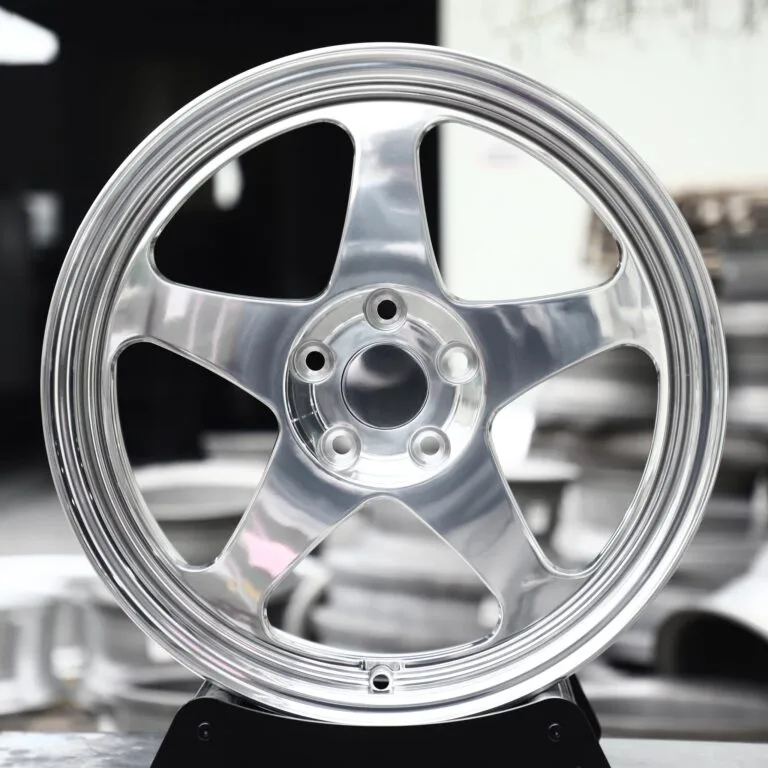

Polished 5-Spoke Deep Lip Forged Wheels
Deep Dish · Polished

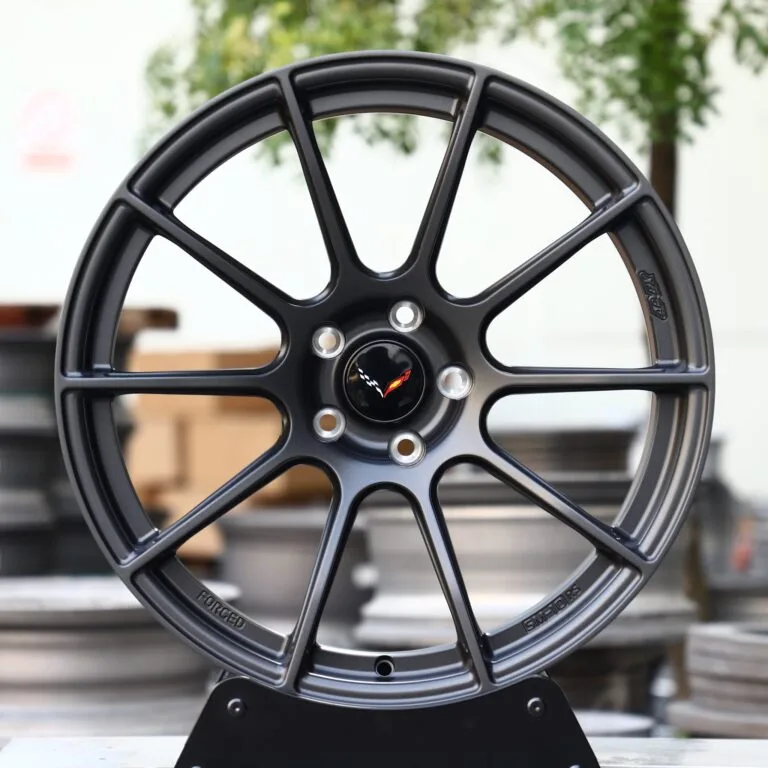

Corvette OEM-Style Gunmetal 10-Spoke Forged Wheels
Monoblock · Gunmetal

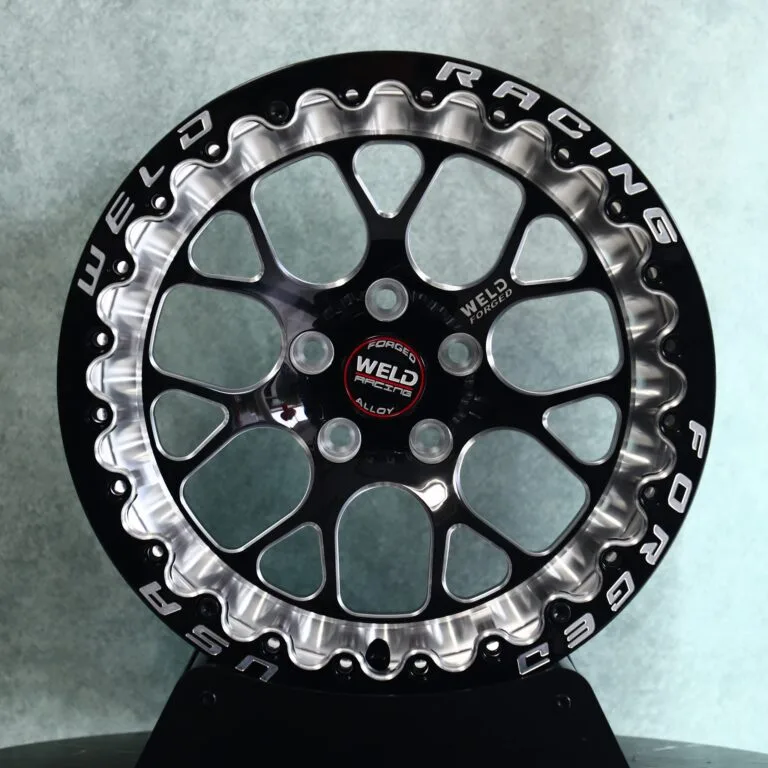

Weld Racing-Style Gloss Black / Machined Mesh Beadlock Forged Drag Racing Wheels
Drag Racing · Gloss Black / Machined
Weld Racing-Style Gloss Black / Machined 5-Spoke Forged Drag Racing Wheels
Drag Racing · Gloss Black / Machined

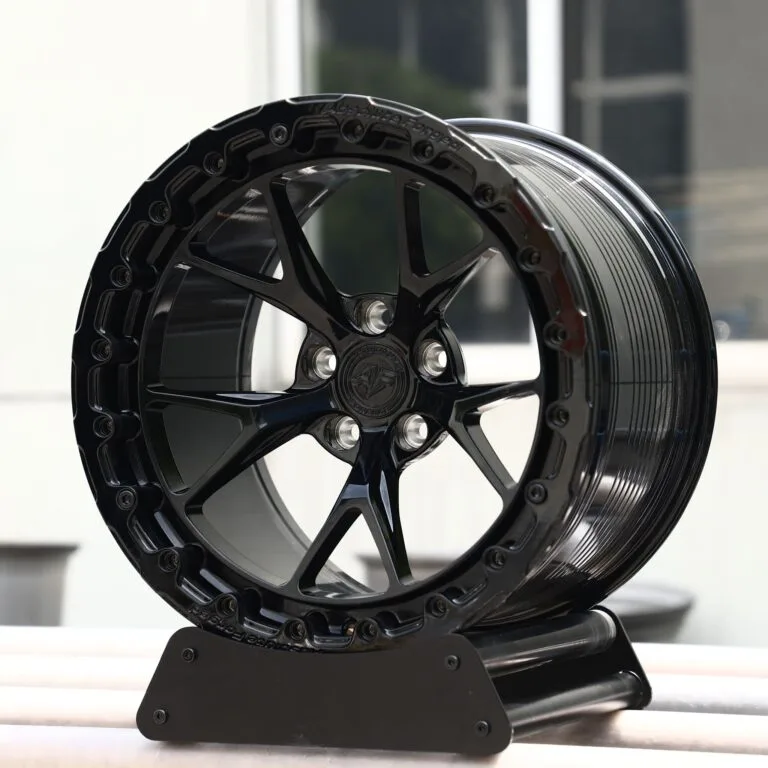

Absolute Forged-Style Gloss Black 10-Spoke Beadlock Forged Wheels
Off-Road Beadlock · Gloss Black
Gloss Black 10-Spoke Polished-Lip Beadlock Forged Wheels
Off-Road Beadlock · Custom Finish
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
Most of the engineering value in a forged wheel over a cast one shows up in rotational mass, not outright strength — both can meet the same load rating, but the forged piece gets there lighter. On a sedan platform tuned for everyday balance, that weight saving is felt directly in steering response and ride quality.
The Chevrolet Trax runs a 5x115 bolt pattern, 70.3mm center bore, and a 18x7.5J at ET42, front and rear, wheel from the factory. Our Flush Fitment reference is 19x8.5J, which tucks the tire under the fender lip on a stock-height Chevrolet Trax. Our Maximum Aggressive reference is 20x9.0J at ET35 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Chevrolet Trax OE Wheel Specs
The 2024 Chevrolet Trax (SUV) uses a 5x115 bolt pattern with a 70.3mm center bore. Factory wheels are 18x7.5J at ET42 offset, front and rear.
Why the factory spec works for most owners:
- Balances ride comfort with everyday drivability
- A commonly used size for this vehicle class, supporting parts and tire availability
- Maintains clearance for the factory suspension and brake components
- Provides stable, predictable handling across normal driving conditions
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Chevrolet Trax (2024) we drill the 5x115 pattern and cut the centre bore to 70.3mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
A Note on Clearance
Final clearance depends on the exact tire model, suspension height, brake package, alignment and vehicle tolerances. A physical test fit is recommended before production.
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or can't find your exact Chevrolet spec, or want a wheel built to a custom offset for your Chevrolet Trax? Contact ANKUSI with your bolt pattern and offset target and we'll confirm the correct forged wheel spec for your build.
Chevrolet Trax: Specs by Model Year
| Year | Bolt pattern | Center bore | Factory wheel |
|---|---|---|---|
| 2014 | 5x105 | 56.6 mm | 18x7J ET38 |
| 2017 | 5x105 | 56.6 mm | 18x7J ET38 |
| 2024 | 5x115 | 70.3 mm | 18x7.5J ET42 |
Check the model year before ordering: the specs change — bolt pattern 5x105 → 5x115 from 2024; center bore 56.6 mm → 70.3 mm from 2024.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 18x7.5J | ET42 | 5.90 in (150 mm) | — | — |
| Maximum | 20x9J | ET35 | 6.38 in (162 mm) | +12 mm | +26 mm |
Vehicles With the Same Hub as the Chevrolet Trax (5x115, 70.3 mm Bore)
In our database, 135 other vehicle entries from 9 makes use exactly the same 5x115 bolt pattern and 70.3 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x115 is used by 3.2% of the vehicle pages in our English fitment guide (209 of 6,503); 65.1% of those also use a 70.3 mm center bore.
Hub-Centric Rings for a 70.3 mm Center Bore
A wheel with a center bore larger than 70.3 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 70.5 mm | 70.5 → 70.3 mm |
| 71.6 mm | 71.6 → 70.3 mm |
| 72.6 mm | 72.6 → 70.3 mm |
| 73.1 mm | 73.1 → 70.3 mm |
ANKUSI forged wheels are bored to exactly 70.3 mm for this vehicle, so no ring is needed.
Frequently Asked Questions
What bolt pattern (PCD) does the Chevrolet Trax use?
The 2024 Chevrolet Trax uses a 5x115 bolt pattern.
How many lug bolts does the Chevrolet Trax use?
The Chevrolet Trax uses a 5-lug bolt pattern (5x115), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Chevrolet Trax?
The Chevrolet Trax's center bore is 70.3mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Chevrolet Trax?
Factory wheels on the Chevrolet Trax are 18x7.5J at ET42 offset, front and rear.
What is the biggest wheel size I can fit on my Chevrolet Trax without rubbing?
The most aggressive fitment we recommend without fender work is 20x9.0J at ET35 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Chevrolet Trax?
For a flush look with minimal to no rubbing, we recommend 19x8.5J at ET38 offset as a starting point on a stock or mildly lowered Chevrolet Trax.
Do I need wheel spacers for my Chevrolet Trax?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Chevrolet Trax?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 6.25" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Chevrolet Trax?
The Chevrolet Trax runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Wheel Installation Reference: Torque, Thread & TPMS
Thread & Fastener: M12x1.5, conical-seat lug nut.
Factory Torque Spec: 136 Nm (100 ft-lb). Covers most Chevrolet passenger cars and crossovers on M12 studs.
TPMS: TPMS (Tire Pressure Monitoring System) has been federally mandated on all new light vehicles sold in the US since the 2008 model year. If your wheels use OE-style sensors, have them transferred or cloned to the new wheels at installation.
Tire Pressure: Always set tire pressure to the value on your vehicle's tire placard (driver's doorjamb or glovebox), not the max PSI printed on the tire sidewall — this is trim- and tire-size-specific and stays the same reference point when you switch to a different wheel and tire combination.
Reference data compiled from published OEM service specifications and cross-checked against independent repair sources; always confirm against your owner's manual or door-jamb placard before installation.
