Fitting Cadillac XLR Star Black Limited Ed. wheels? This page gives the 2006 Cadillac XLR Star Black Limited Ed. bolt pattern (5x120.65), centre bore, factory rim size and the offset range for aftermarket and forged Cadillac XLR Star Black Limited Ed. rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2006 Cadillac XLR Star Black Limited Ed. uses a 5x120.65 bolt pattern with a 70.3 mm centre bore and M12x1.5 lug nuts. Factory wheels: 18x8J at ET46. For aftermarket wheels, 19x9J ET40 sits flush and 20x9.5J ET35 is the most aggressive fit.
Forged wheels for the 2006 Cadillac XLR Star Black Limited Ed. — drilled 5x120.65 with a 70.3 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Cadillac XLR Star Black Limited Ed. (2006): 5x120.65 bolt pattern, 70.3mm center bore. Factory wheels: 18x8J. Reference fitment ranges.
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 18x8J at ET46 |
| Flush Fitment | 19x9J at ET40 offset |
| Maximum Aggressive | 20x9.5J at ET35 offset |
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
Convertibles lose some of the structural rigidity a fixed roof provides, which means the suspension and wheels end up doing more of the work to keep the chassis composed. A forged wheel keeps unsprung mass down without sacrificing the strength margin the factory built in — useful on a platform that's already managing extra flex.
The Cadillac XLR Star Black Limited Ed. runs a 5x120.65 bolt pattern, 70.3mm center bore, and a 18x8J at ET46, front and rear, wheel from the factory. Our Flush Fitment reference is 19x9J ET40, which tucks the tire under the fender lip on a stock-height Cadillac XLR Star Black Limited Ed.. Our Maximum Aggressive reference is 20x9.5J ET35 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
The 2006 Cadillac XLR Star Black Limited Ed. (Roadster) uses a 5x120.65 bolt pattern with a 70.3mm center bore. Factory wheels are 18x8J at ET46.
Why the factory spec works for most owners:
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Cadillac XLR Star Black Limited Ed. (2006) we drill the 5x120.65 pattern and cut the centre bore to 70.3mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
For a flush look with minimal rubbing, 19x9J ET40 is the recommended starting point on a stock or mildly lowered Cadillac XLR Star Black Limited Ed..
20x9.5J ET35 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
Y-body platform (Corvette) uses 5x120.65 PCD
Recommended setup: 18x8.0J ET46 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
Recommended setup: 19x8.5J ET43 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
Recommended setup: 19x9.0J ET40 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
Recommended setup: 20x9.5J ET38 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
Recommended setup: 20x9.5J ET35 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | 18x8.0J ET46 | 19x8.5J ET43 | 19x9.0J ET40 | 20x9.5J ET38 | 20x9.5J ET35 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: 18x8.0J ET46
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: 19x9.0J ET40
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: 20x9.5J ET35
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
Final clearance depends on the exact tire model, suspension height, brake package, alignment and vehicle tolerances. A physical test fit is recommended before production.
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Cadillac spec, or want a wheel built to a custom offset for your Cadillac XLR Star Black Limited Ed.? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x120.65 pattern and the 70.3mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose — most Cadillac orders on this platform land somewhere between the 19x9J ET40 flush setup and the 20x9.5J ET35 aggressive setup referenced above.
We do not hold 5x120.65 wheels on a shelf — they are forged to order, which is why any offset, width and bore combination on this page is buildable rather than limited to a stock list.
In our database, 63 other vehicle entries from 6 makes use exactly the same 5x120.65 bolt pattern and 70.3 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x120.65 is used by 1.6% of the vehicle pages in our English fitment guide (101 of 6,503); 63.4% of those also use a 70.3 mm center bore.
A wheel with a center bore larger than 70.3 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 70.5 mm | 70.5 → 70.3 mm |
| 71.6 mm | 71.6 → 70.3 mm |
| 72.6 mm | 72.6 → 70.3 mm |
| 73.1 mm | 73.1 → 70.3 mm |
ANKUSI forged wheels are bored to exactly 70.3 mm for this vehicle, so no ring is needed.
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 18x8 wheels · 18 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Every design below is forged to order, so it can be machined to the Cadillac XLR Star Black Limited Ed.'s 5x120.65 bolt pattern and 70.3 mm center bore, with the width and offset calculated for your setup.
Forged wheels for the Chevrolet Corvette featuring the chevrolet corvette style bright silver 5 Y-spoke left/right directional double-ring design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

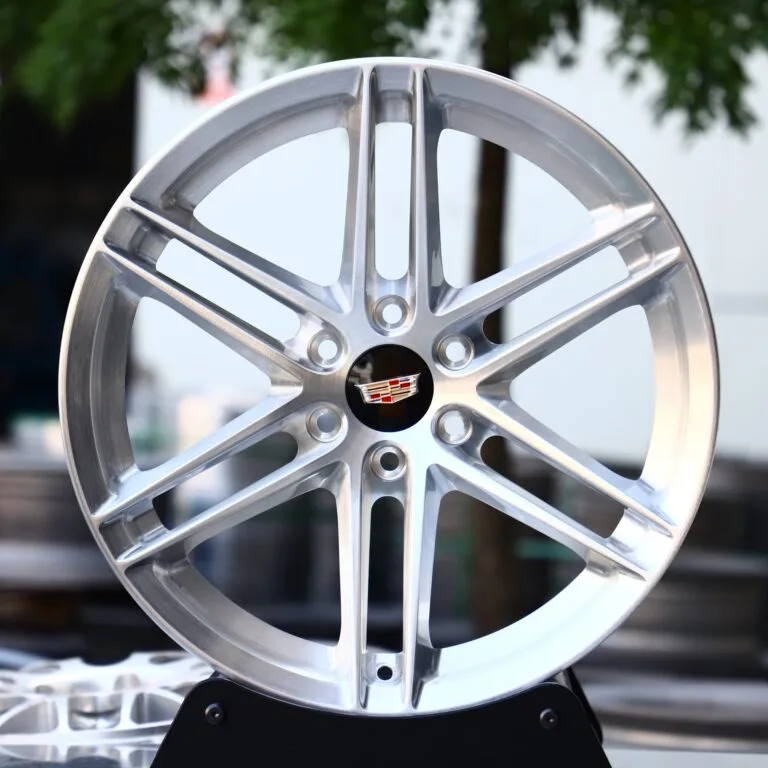

Cadillac CT5 / CT6 Fitment · 5-Lug
Chevrolet Corvette C7 / Corvette C6 Fitment · 5-Lug
Chevrolet Corvette / Camaro Fitment · 5-Lug

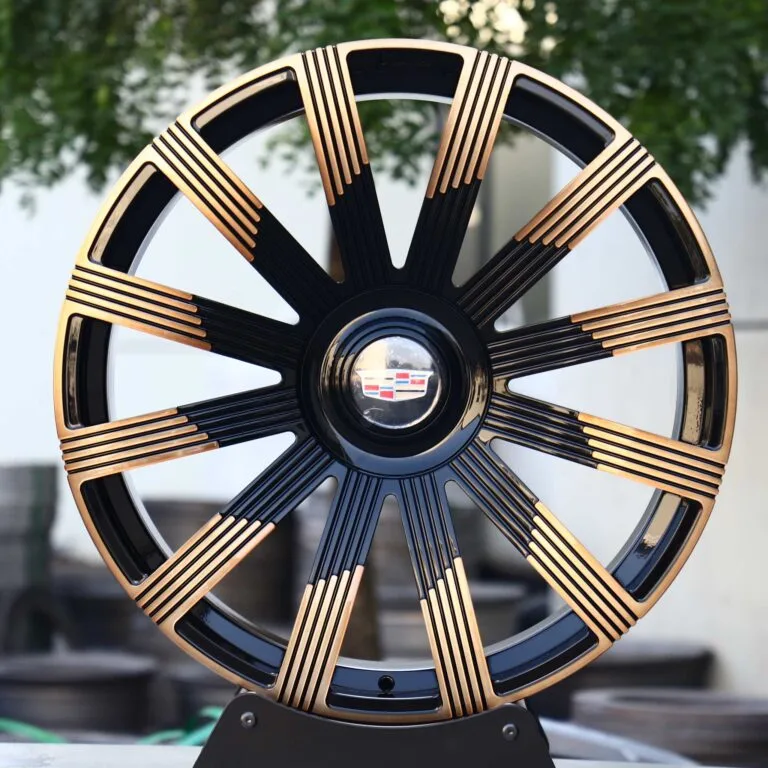

Cadillac CT5 / CT6 Fitment · 5-Lug
