Wheels / Concave / Rays-Style Polished Mesh Concave Deep Lip Forged Wheels – Toyota GR Supra / BMW M2 Fitment (5-Lug)

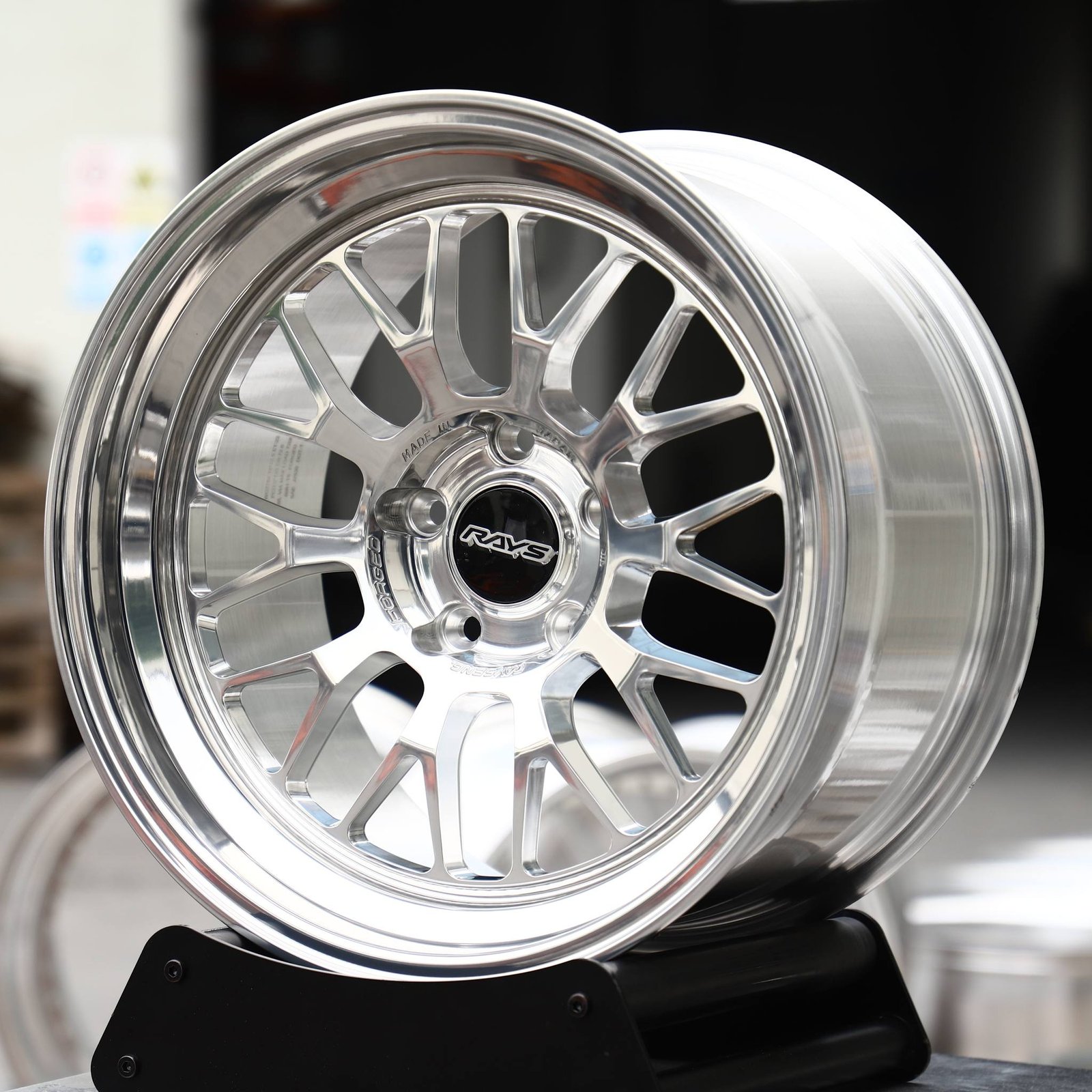

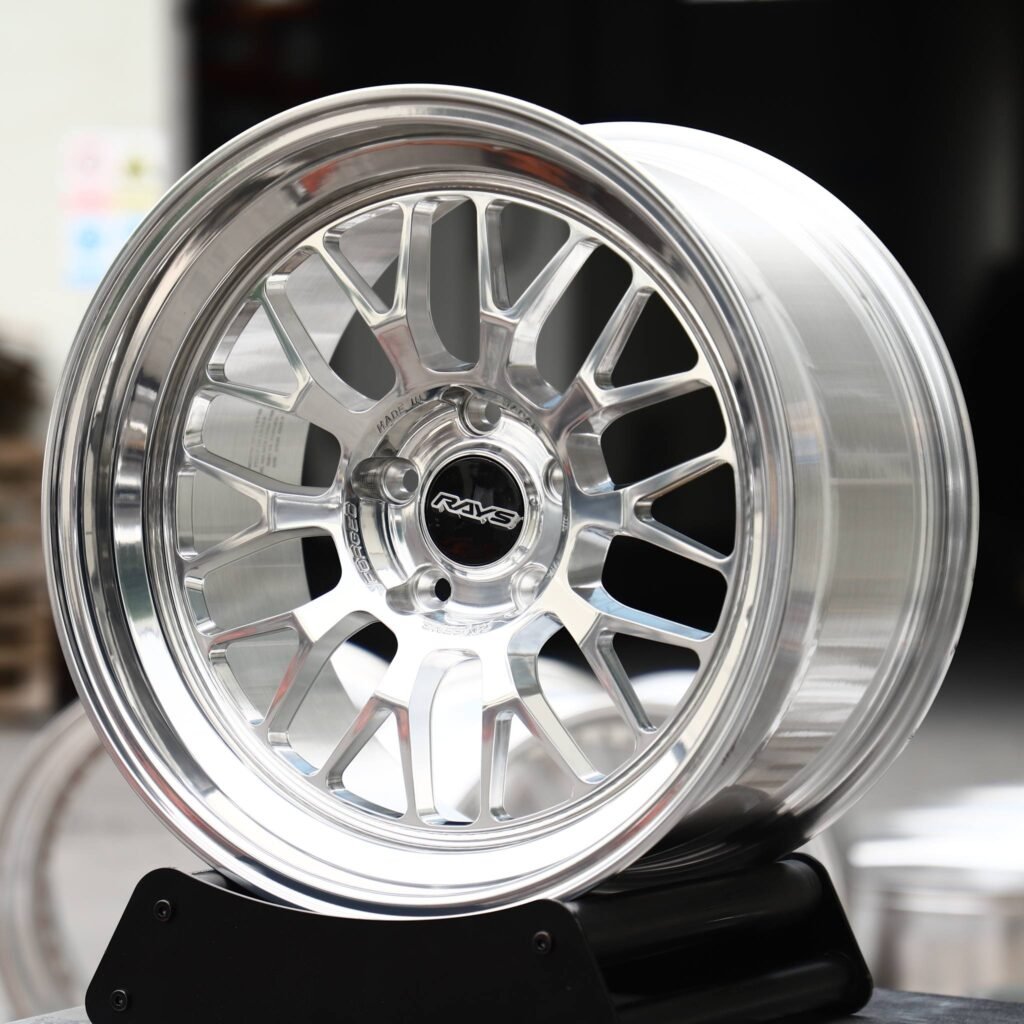

Toyota GR Supra wheels – Polished Mesh Concave Deep Lip (Rays-Style), front view

Rays-Style Polished Mesh Concave Deep Lip Forged Wheels – Toyota GR Supra / BMW M2 Fitment (5-Lug)

Rays-Style forged wheels featuring the polished mesh concave deep lip design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

Category	Concave
SKU	ANK-82069
Bolt Pattern	5x112, 5x120
Finish	Polished
Material	Forged Aluminum
Reference price	From $220 per wheel Approximate. Final quote depends on size, finish and quantity.
Made to order	Custom size, offset, PCD & finish

Every ANKUSI wheel is forged to order. Send your vehicle and target specs and we'll confirm exact fitment before production.

Product Details

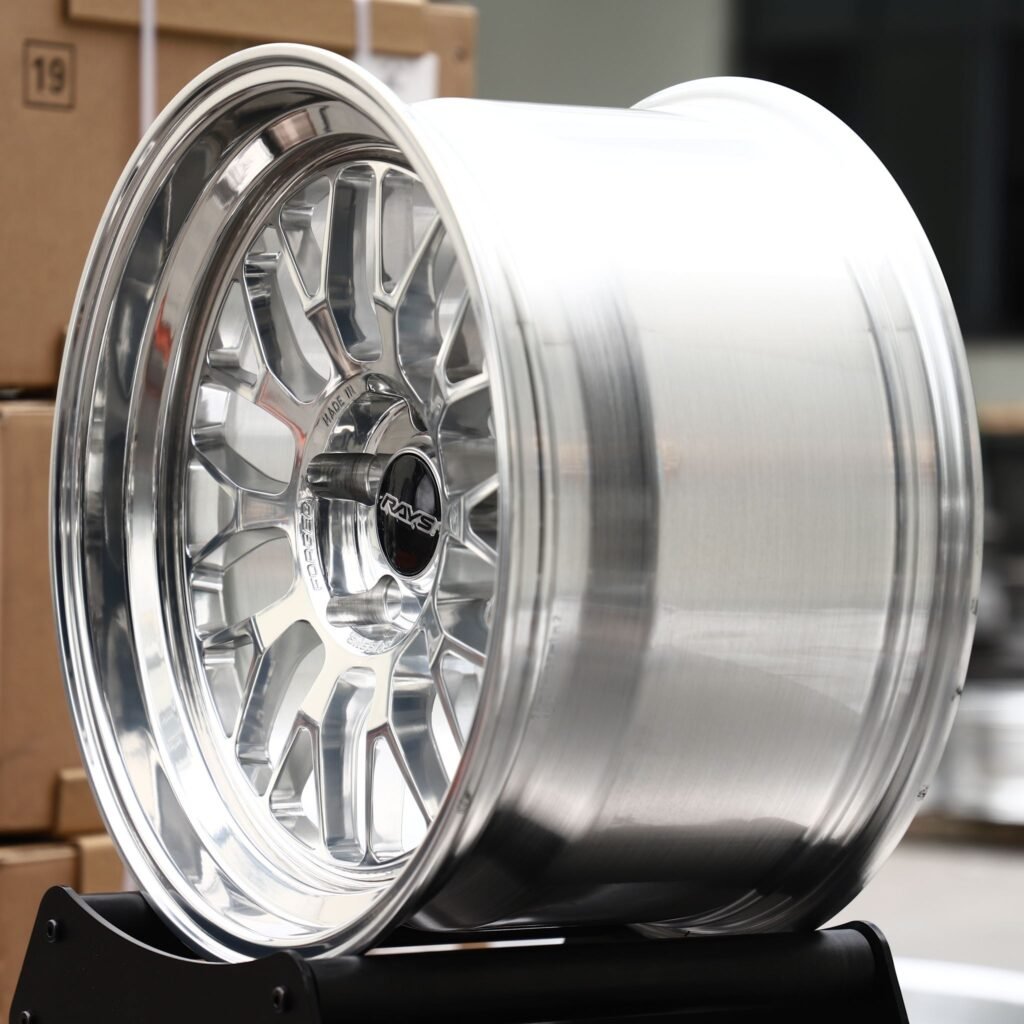

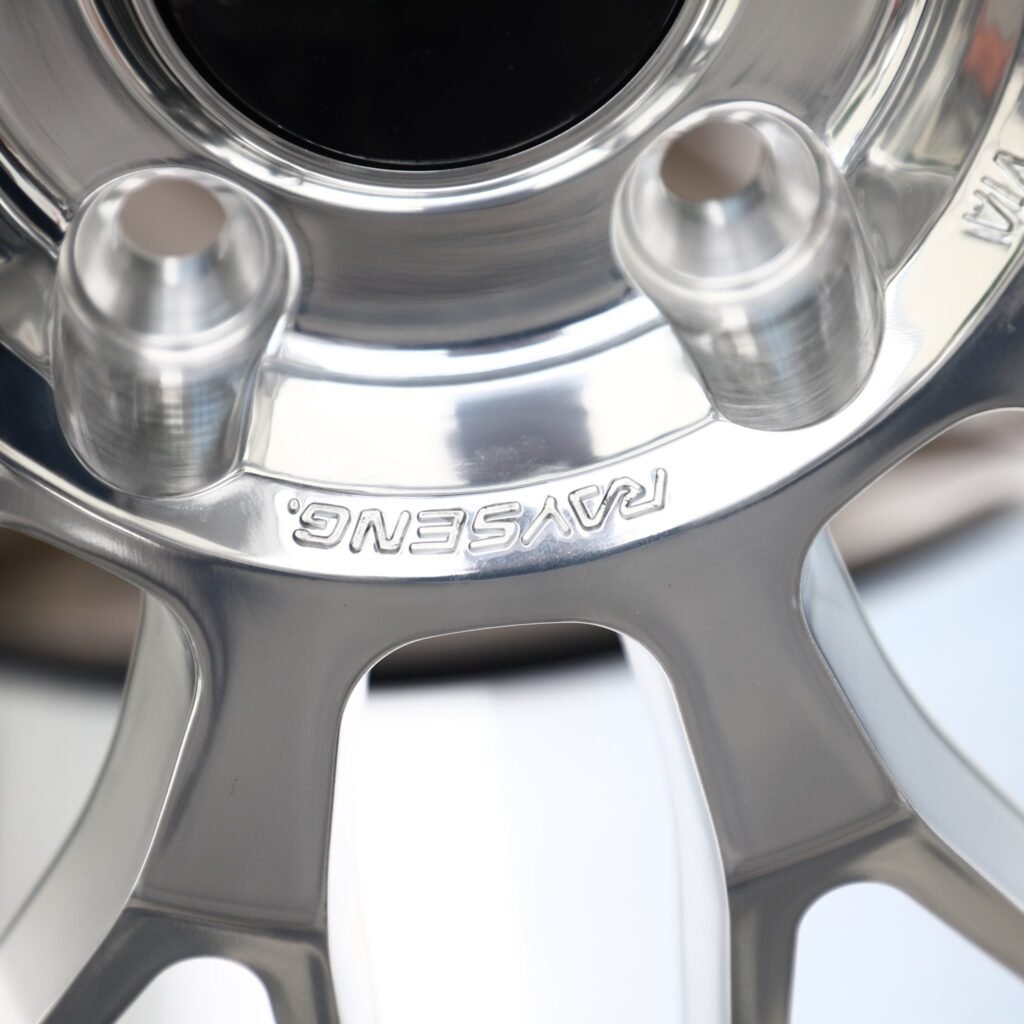

Rays-Style forged wheels featuring the polished mesh concave deep lip design. Each wheel is forged from a solid 6061-T6 aluminium billet on ANKUSI's own 10,000-tonne press in Guangzhou, then CNC-machined, heat-treated and finished in-house under IATF 16949 and ISO 9001.

Design details

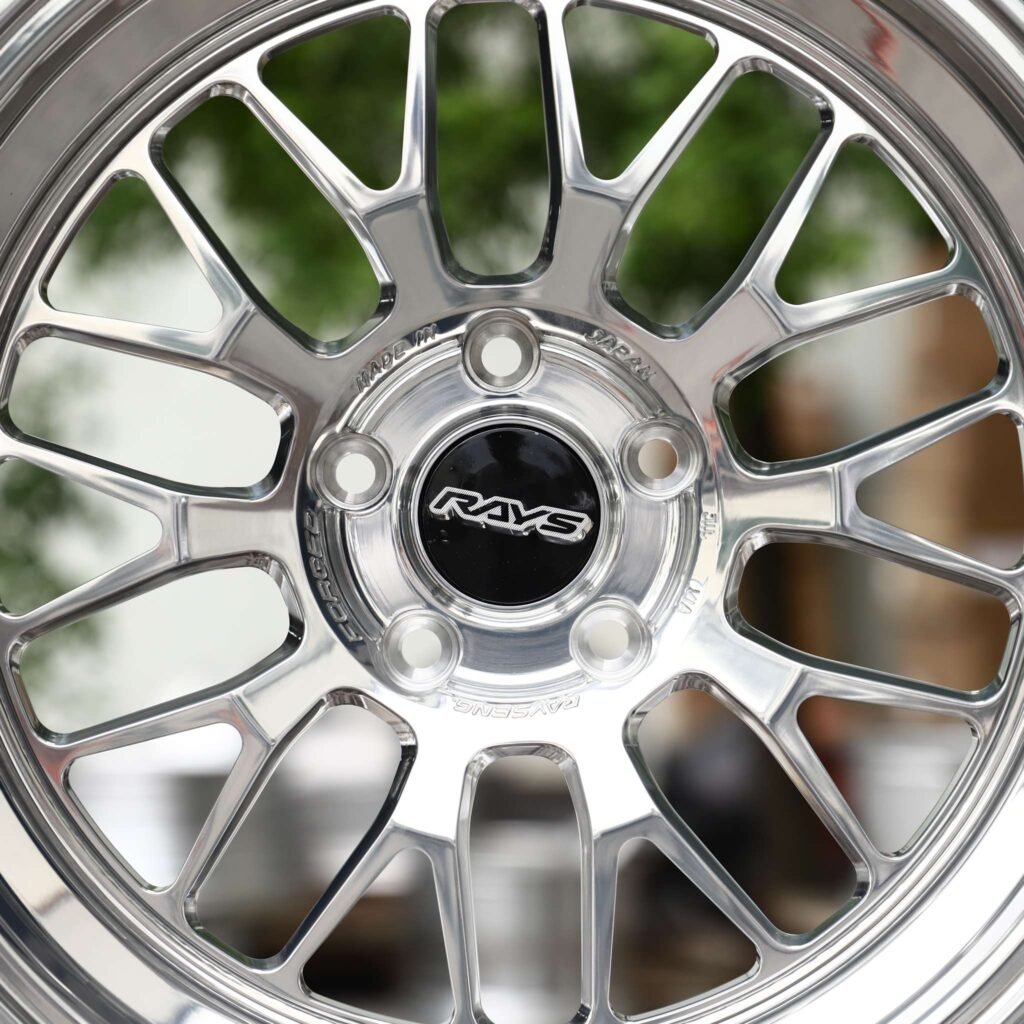

The concave face is cut to the width and offset you order, so a wider, lower-offset wheel gets a deeper curve than a narrow one. The photos show it with a Rays centre cap; a plain or custom-logo cap is also available. Drilled for 5-lug hubs (5x112, 5x120 as listed below), with diameter from 14 to 24 inch depending on brake clearance. See more rays volk racing-style forged wheels, multi-spoke and mesh forged wheels, concave forged wheels.

Fitment

Commonly ordered for Toyota GR Supra (5x112, 66.6mm centre bore); BMW M2 (5x112, 66.6mm centre bore or 5x120, 72.6mm centre bore). Every set is cut to order, so we machine the bolt pattern, centre bore and offset to match your car exactly — send us the year, model and brake setup and we confirm the spec before anything is cut.

Specification

Construction: forged 6061-T6 aluminium
Bolt pattern: 5-lug, machined to order
Diameter and width: cut to order
Offset: calculated for your vehicle, flush to aggressive
Finish: Polished

Single sets through to full container orders. Tell us your vehicle and the stance you are after and we will quote.

Toyota GR Supra wheels and BMW M2 wheels: bolt patterns this design is cut for

This Polished Mesh Concave Deep Lip design is forged blank and machined to order, so the same wheel is made as 5x112 wheels or 5x120 wheels with the centre bore, width and offset your car needs. The vehicles below share the bolt pattern; send us your year and model and we confirm the exact spec before production.

Toyota GR Supra wheels – 5x112, 66.5 mm centre bore
BMW M2 wheels – 5x112, 66.6 mm centre bore
Honda Civic Type R FL5 – 5x120, 64.1 mm centre bore (factory 19x9.5J at ET60 offset, front and rear)
Audi A4 B9 – 5x112, 66.5 mm centre bore (factory 19x8.5J F/R)
Audi A6 C8 – 5x112, 66.5 mm centre bore (factory 19x8.5J F/R)
Audi RS3 8Y – 5x112, 57.1 mm centre bore (factory F: 19x9.0J R: 19x8.0J)
BMW M3 F80 – 5x120, 72.6 mm centre bore (factory F: 19x9.0J R: 20x10.0J)
BMW M4 F82 – 5x120, 72.6 mm centre bore (factory F: 19x9.0J R: 20x10.0J)

Shipping and returns

Shipping costs about US$230–260 to the United States and US$250–300 to Europe; the exact figure is confirmed in your quotation. Wheels are forged to order, so they are not returnable, but if a wheel has a quality problem caused by the wheel itself we make and ship a new one at our cost. Shipping and returns details.

Fitment Reference

Factory bolt pattern, center bore and wheel sizes by generation for the vehicles this design is most often ordered for. We machine the bolt pattern and center bore to your exact car.

Vehicle	Bolt pattern	Center bore	Factory wheels
Toyota GR Supra A90 Final Edition [EU] (2026)	5x112	66.6 mm	-
GR Supra MkV Final Edition (2026)	5x112	66.6 mm	F 19x9.0J ET32 / R 19x10.0J ET40
BMW M2 G87 (2025)	5x112	66.6 mm	F: 19x9.5J R: 20x10.5J
BMW M2 CS F87 (2020)	5x120	72.6 mm	F: 19x9.0J R: 19x10.0J

Questions about this wheel

Will these forged wheels fit my Toyota GR Supra?

Yes. These rims are forged to order, so we machine the bolt pattern (5x112, 5x120 for the vehicles listed) and the centre bore to your exact car. Send us the year, model and brake setup and we confirm fitment before production starts.

What sizes can I order?

Diameter, width and offset are cut to order on a 5-lug hub, from a factory-flush fit to an aggressive stance. Tell us the size you want and we check it against your car.

How much do these wheels cost?

The reference price starts from $220 per wheel. The final quote depends on size, finish and quantity, and we send it after confirming your fitment.

Can I choose a different color or finish?

Yes. Every wheel is finished to order; Polished is one option shown here. Tell us the color, polish or two-tone finish you want.

Can custom forged wheels be returned?

Because each set is forged and machined to your order, we do not accept returns. That is why we confirm the fitment and specifications with you before production.
