Wheels / Off-Road Beadlock / Rays-Style Mirror Polished 6-Spoke Black-Ring Beadlock Forged Wheels – Honda Civic Type R / GR Supra Fitment (5-Lug)

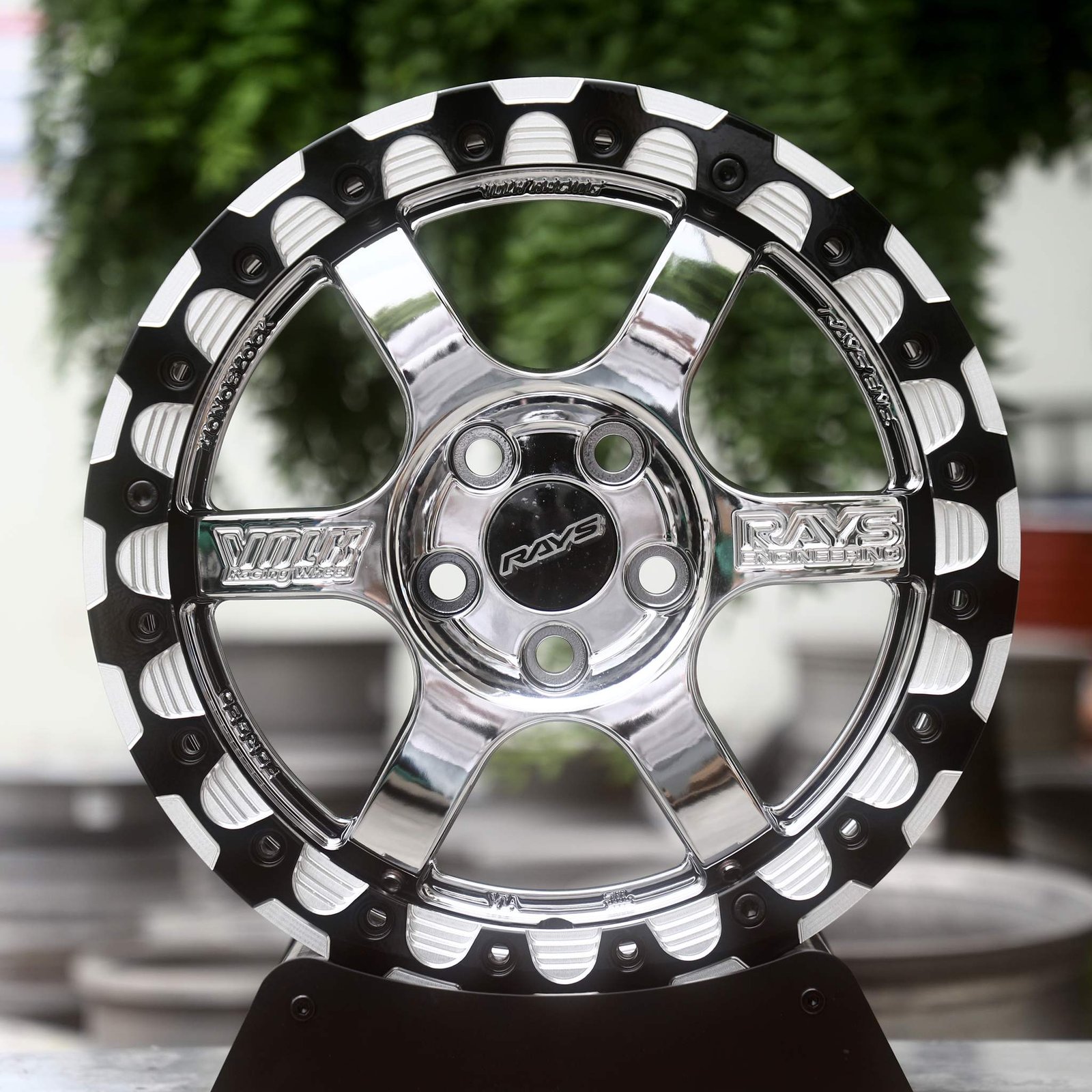

Honda Civic Type R wheels – Mirror Polished 6-Spoke Black-Ring Beadlock (Rays-Style), front view

Off-Road Beadlock Forged Wheels

Rays-Style Mirror Polished 6-Spoke Black-Ring Beadlock Forged Wheels – Honda Civic Type R / GR Supra Fitment (5-Lug)

Rays-Style forged wheels featuring the mirror polished 6-spoke black-ring design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

Category	Off-Road Beadlock
SKU	ANK-80198
Bolt Pattern	5x112, 5x114.3, 5x120
Finish	Mirror Polished / Black
Material	Forged Aluminum
Reference price	From $220 per wheel Approximate. Final quote depends on size, finish and quantity.
Made to order	Custom size, offset, PCD & finish

Every ANKUSI wheel is forged to order. Send your vehicle and target specs and we'll confirm exact fitment before production.

Product Details

Rays-Style forged wheels featuring the mirror polished 6-spoke black-ring design. Each wheel is forged from a solid 6061-T6 aluminium billet on ANKUSI's own 10,000-tonne press in Guangzhou, then CNC-machined, heat-treated and finished in-house under IATF 16949 and ISO 9001.

Design details

The bolt-on beadlock ring clamps the outer tyre bead, which lets the tyre run very low pressure off-road or on a drag launch without slipping on the rim; the ring can be finished to match or to contrast. The photos show it with a Rays centre cap; a plain or custom-logo cap is also available. Drilled for 5-lug hubs (5x112, 5x114.3, 5x120 as listed below), with diameter from 14 to 24 inch depending on brake clearance. See more rays volk racing-style forged wheels, beadlock forged wheels, polished forged wheels.

Fitment

Commonly ordered for Honda Civic Type R (5x120, 64.1mm centre bore or 5x114.3, 64.1mm centre bore); Toyota GR Supra (5x112, 66.6mm centre bore). Every set is cut to order, so we machine the bolt pattern, centre bore and offset to match your car exactly — send us the year, model and brake setup and we confirm the spec before anything is cut.

Specification

Construction: forged 6061-T6 aluminium
Bolt pattern: 5-lug, machined to order
Diameter and width: cut to order
Offset: calculated for your vehicle, flush to aggressive
Finish: Mirror Polished / Black

Single sets through to full container orders. Tell us your vehicle and the stance you are after and we will quote.

Honda Civic Type R wheels and Toyota GR Supra wheels: bolt patterns this design is cut for

This Mirror Polished 6-Spoke Black-Ring Beadlock design is forged blank and machined to order, so the same wheel is made as 5x120 wheels or 5x112 / 5x114.3 wheels with the centre bore, width and offset your car needs. The vehicles below share the bolt pattern; send us your year and model and we confirm the exact spec before production.

Honda Civic Type R wheels – 5x120, 64.1 mm centre bore
Toyota GR Supra wheels – 5x112, 66.5 mm centre bore
Subaru WRX – 5x114.3, 56.1 mm centre bore (factory 18x8.5J at ET55 offset, front and rear)
Subaru WRX STI – 5x114.3, 56.1 mm centre bore
Audi A4 B9 – 5x112, 66.5 mm centre bore (factory 19x8.5J F/R)
Audi A6 C8 – 5x112, 66.5 mm centre bore (factory 19x8.5J F/R)
BMW M3 F80 – 5x120, 72.6 mm centre bore (factory F: 19x9.0J R: 20x10.0J)
BMW M4 F82 – 5x120, 72.6 mm centre bore (factory F: 19x9.0J R: 20x10.0J)

Shipping and returns

Shipping costs about US$230–260 to the United States and US$250–300 to Europe; the exact figure is confirmed in your quotation. Wheels are forged to order, so they are not returnable, but if a wheel has a quality problem caused by the wheel itself we make and ship a new one at our cost. Shipping and returns details.

Fitment Reference

Factory bolt pattern, center bore and wheel sizes by generation for the vehicles this design is most often ordered for. We machine the bolt pattern and center bore to your exact car.

Vehicle	Bolt pattern	Center bore	Factory wheels
Honda Civic Type R (2023)	5x120	64.1 mm	19x9.5J at ET60 offset, front and rear
Honda Civic Type R Sedan (2007)	5x114.3	64.1 mm	18x7.5J at ET60 offset, front and rear
Toyota GR Supra A90 Final Edition [EU] (2026)	5x112	66.6 mm	-
GR Supra MkV Final Edition (2026)	5x112	66.6 mm	F 19x9.0J ET32 / R 19x10.0J ET40

Questions about this wheel

Will these forged wheels fit my Honda Civic Type R?

Yes. These rims are forged to order, so we machine the bolt pattern (5x112, 5x114.3, 5x120 for the vehicles listed) and the centre bore to your exact car. Send us the year, model and brake setup and we confirm fitment before production starts.

What sizes can I order?

Diameter, width and offset are cut to order on a 5-lug hub, from a factory-flush fit to an aggressive stance. Tell us the size you want and we check it against your car.

How much do these wheels cost?

The reference price starts from $220 per wheel. The final quote depends on size, finish and quantity, and we send it after confirming your fitment.

Can I choose a different color or finish?

Yes. Every wheel is finished to order; Mirror Polished / Black is one option shown here. Tell us the color, polish or two-tone finish you want.

Is the beadlock ring included?

Yes. This is a beadlock design, so the bolted outer ring that clamps the tyre bead is part of the wheel.

Can custom forged wheels be returned?

Because each set is forged and machined to your order, we do not accept returns. That is why we confirm the fitment and specifications with you before production.
