Wheels / Replica / Rays-Style Matte Gray 8 Y-Spoke Forged Wheels – Nissan 370Z / Toyota GR86 Fitment (5-Lug)

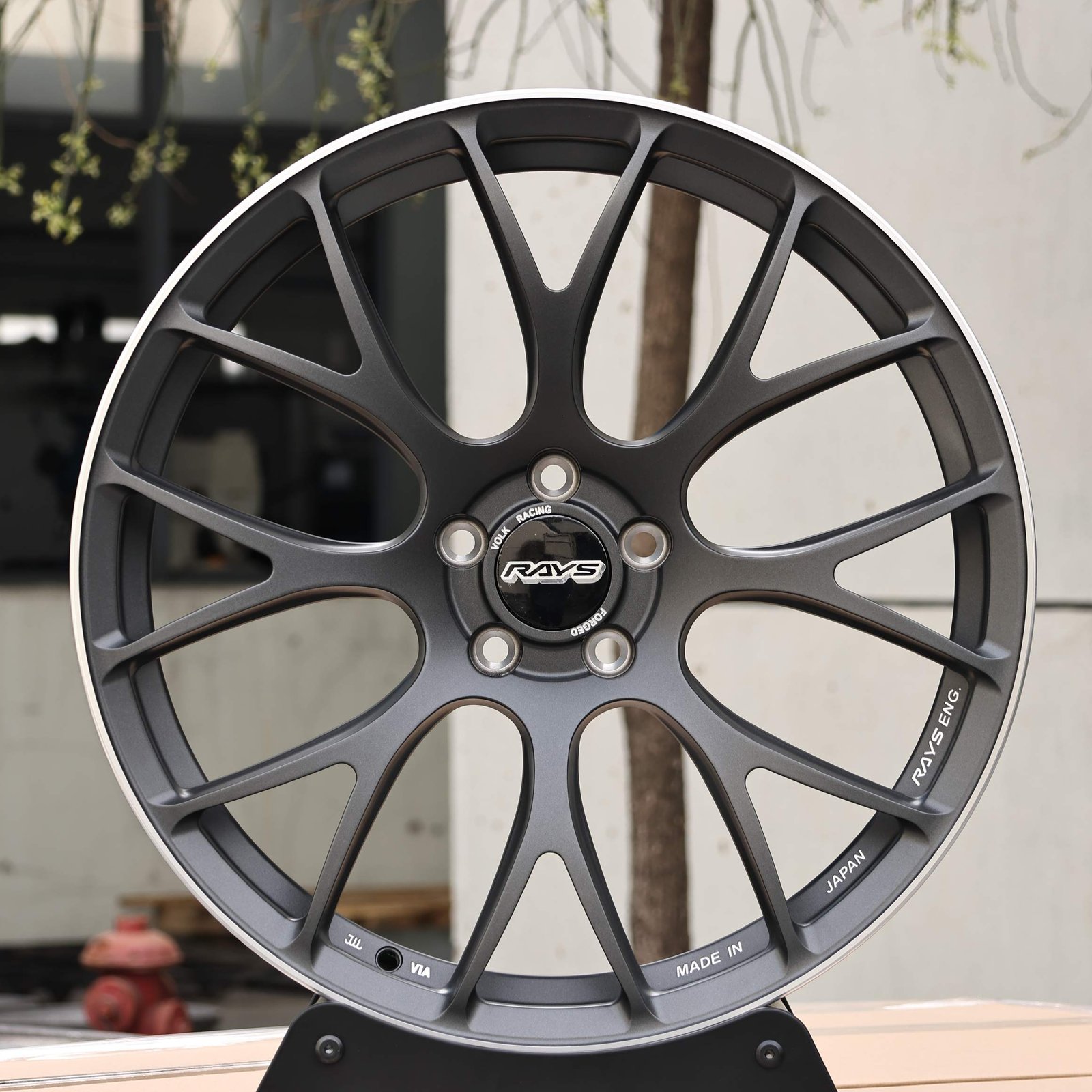

Nissan 370Z wheels – Matte Gray 8 Y-Spoke (Rays-Style), front view

Rays-Style Matte Gray 8 Y-Spoke Forged Wheels – Nissan 370Z / Toyota GR86 Fitment (5-Lug)

Rays-Style forged wheels featuring the matte gray 8 Y-spoke design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

Category	Replica
SKU	ANK-55208
Bolt Pattern	5x100, 5x114.3
Material	Forged Aluminum
Finish	Matte Gray
Reference price	From $220 per wheel Approximate. Final quote depends on size, finish and quantity.
Made to order	Custom size, offset, PCD & finish

Every ANKUSI wheel is forged to order. Send your vehicle and target specs and we'll confirm exact fitment before production.

Product Details

Rays-Style forged wheels featuring the matte gray 8 Y-spoke design. Each wheel is forged from a solid 6061-T6 aluminium billet on ANKUSI's own 10,000-tonne press in Guangzhou, then CNC-machined, heat-treated and finished in-house under IATF 16949 and ISO 9001.

Design details

As a one-piece monoblock it is machined from a single forging, the lightest and stiffest construction we make. The photos show it with a Rays centre cap; a plain or custom-logo cap is also available. Drilled for 5-lug hubs (5x100, 5x114.3 as listed below), with diameter from 14 to 24 inch depending on brake clearance. See more rays volk racing-style forged wheels, y-spoke forged wheels, gunmetal and gray forged wheels.

Fitment

Commonly ordered for Nissan 370Z (5x114.3, 66.1mm centre bore); Toyota GR86 (5x100, 56.1mm centre bore). Every set is cut to order, so we machine the bolt pattern, centre bore and offset to match your car exactly — send us the year, model and brake setup and we confirm the spec before anything is cut.

Specification

Construction: forged 6061-T6 aluminium
Bolt pattern: 5-lug, machined to order
Diameter and width: cut to order
Offset: calculated for your vehicle, flush to aggressive
Finish: Matte Gray

Single sets through to full container orders. Tell us your vehicle and the stance you are after and we will quote.

Nissan 370Z wheels and Toyota GR86 wheels: bolt patterns this design is cut for

This Matte Gray 8 Y-Spoke design is forged blank and machined to order, so the same wheel is made as 5x114.3 wheels or 5x100 wheels with the centre bore, width and offset your car needs. The vehicles below share the bolt pattern; send us your year and model and we confirm the exact spec before production.

Nissan 370Z wheels – 5x114.3, 66.1 mm centre bore
Toyota GR86 wheels – 5x100, 56.1 mm centre bore
Subaru WRX – 5x114.3, 56.1 mm centre bore (factory 18x8.5J at ET55 offset, front and rear)
Subaru WRX STI – 5x114.3, 56.1 mm centre bore
Nissan GT-R R35 – 5x114.3, 66.1 mm centre bore (factory F: 20x9.5J R: 20x10.5J)
Subaru BRZ – 5x100, 56.1 mm centre bore (factory 18x7.5J at ET48 offset (front and rear))
Toyota 86 – 5x100, 56.1 mm centre bore (factory F/R: 17x7.0J at ET48 offset, front and r)
Scion FR-S – 5x100, 56.1 mm centre bore (factory 17x7.0J at ET48 offset, front and rear)

Shipping and returns

Shipping costs about US$230–260 to the United States and US$250–300 to Europe; the exact figure is confirmed in your quotation. Wheels are forged to order, so they are not returnable, but if a wheel has a quality problem caused by the wheel itself we make and ship a new one at our cost. Shipping and returns details.

Fitment Reference

Factory bolt pattern, center bore and wheel sizes by generation for the vehicles this design is most often ordered for. We machine the bolt pattern and center bore to your exact car.

Vehicle	Bolt pattern	Center bore	Factory wheels
Nissan 370Z (2013)	5x114.3	66.1 mm	F: 18x8.0J R: 18x9.0J
GR86 Yuzu Edition (2026)	5x100	56.1 mm	18x7.5J at ET48 offset (front and rear)

Questions about this wheel

Will these forged wheels fit my Nissan 370Z?

Yes. These rims are forged to order, so we machine the bolt pattern (5x114.3, 5x100 for the vehicles listed) and the centre bore to your exact car. Send us the year, model and brake setup and we confirm fitment before production starts.

What sizes can I order?

Diameter, width and offset are cut to order on a 5-lug hub, from a factory-flush fit to an aggressive stance. Tell us the size you want and we check it against your car.

How much do these wheels cost?

The reference price starts from $220 per wheel. The final quote depends on size, finish and quantity, and we send it after confirming your fitment.

Can I choose a different color or finish?

Yes. Every wheel is finished to order; Matte Gray is one option shown here. Tell us the color, polish or two-tone finish you want.

Can custom forged wheels be returned?

Because each set is forged and machined to your order, we do not accept returns. That is why we confirm the fitment and specifications with you before production.
