Wheels / Replica / Land Rover OEM-Style Gloss Black 5 Split Y-Spoke Forged Wheels – Land Rover Range Rover / Defender Fitment (5-Lug)

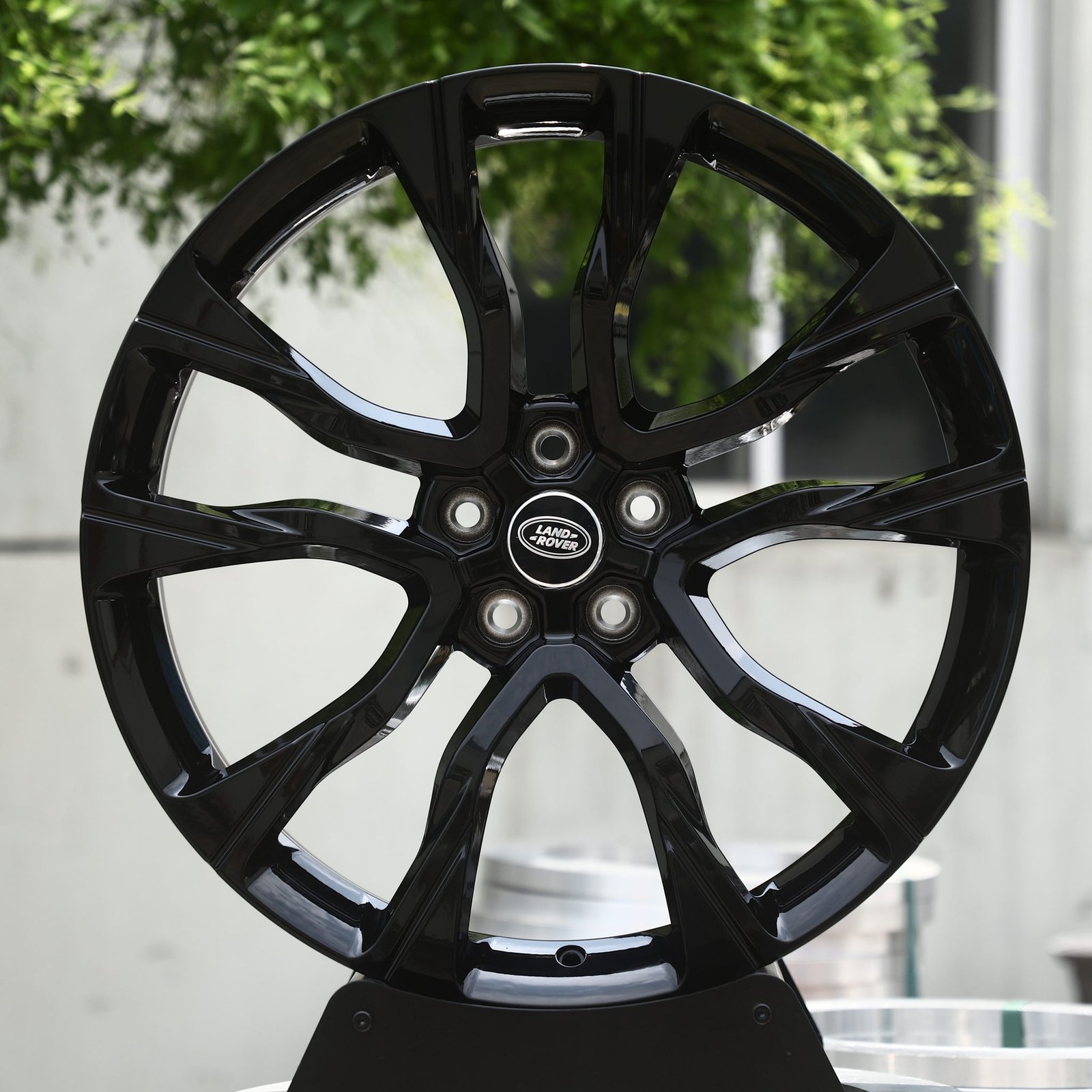

Land Rover Range Rover wheels – Gloss Black 5 Split Y-Spoke (Land Rover OEM-Style), front view

Replica Forged Wheels

Land Rover OEM-Style Gloss Black 5 Split Y-Spoke Forged Wheels – Land Rover Range Rover / Defender Fitment (5-Lug)

Land Rover OEM-Style forged wheels featuring the gloss black 5 split y-spoke design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

Category	Replica
SKU	ANK-81990
Bolt Pattern	5x108, 5x120, 5x165.1
Finish	Gloss Black
Material	Forged Aluminum
Reference price	From $220 per wheel Approximate. Final quote depends on size, finish and quantity.
Made to order	Custom size, offset, PCD & finish

Every ANKUSI wheel is forged to order. Send your vehicle and target specs and we'll confirm exact fitment before production.

Product Details

Land Rover OEM-Style forged wheels featuring the gloss black 5 split Y-spoke design. Each wheel is forged from a solid 6061-T6 aluminium billet on ANKUSI's own 10,000-tonne press in Guangzhou, then CNC-machined, heat-treated and finished in-house under IATF 16949 and ISO 9001.

Design details

As a one-piece monoblock it is machined from a single forging, the lightest and stiffest construction we make. The photos show it with the Land Rover centre cap, and the fitment list is kept to Land Rover models. Drilled for 5-lug hubs (5x108, 5x120, 5x165.1 as listed below), with diameter from 14 to 24 inch depending on brake clearance. See more land rover oem-style forged wheels, y-spoke forged wheels, split-spoke forged wheels.

Fitment

Commonly ordered for Land Rover Range Rover (5x120, 72.6mm centre bore or 5x108, 63.4mm centre bore); Land Rover Defender (5x120, 72.6mm centre bore or 5x165.1, 114.3mm centre bore). Every set is cut to order, so we machine the bolt pattern, centre bore and offset to match your car exactly — send us the year, model and brake setup and we confirm the spec before anything is cut.

Specification

Construction: forged 6061-T6 aluminium
Bolt pattern: 5-lug, machined to order
Diameter and width: cut to order
Offset: calculated for your vehicle, flush to aggressive
Finish: Gloss Black

Single sets through to full container orders. Tell us your vehicle and the stance you are after and we will quote.

Land Rover Range Rover wheels and Land Rover Defender wheels: bolt patterns this design is cut for

This Gloss Black 5 Split Y-Spoke design is forged blank and machined to order, so the same wheel is made as 5x120 wheels or 5x108 / 5x165.1 wheels with the centre bore, width and offset your car needs. The vehicles below share the bolt pattern; send us your year and model and we confirm the exact spec before production.

Land Rover Range Rover wheels – 5x120, 72.6 mm centre bore
Land Rover Defender wheels – 5x165.1, 114.3 mm centre bore
Land Rover Discovery – 5x120, 72.6 mm centre bore (factory 21x9.5J)

Shipping and returns

Shipping costs about US$230–260 to the United States and US$250–300 to Europe; the exact figure is confirmed in your quotation. Wheels are forged to order, so they are not returnable, but if a wheel has a quality problem caused by the wheel itself we make and ship a new one at our cost. Shipping and returns details.

Fitment Reference

Factory bolt pattern, center bore and wheel sizes by generation for the vehicles this design is most often ordered for. We machine the bolt pattern and center bore to your exact car.

Vehicle	Bolt pattern	Center bore	Factory wheels
Land Rover Range Rover Velar (2024)	5x108	63.4 mm	20x8.5J
Land Rover Range Rover (2013)	5x120	72.6 mm	20x8.5J
Land Rover Range Rover (2001)	5x120	70.1 mm	16x8J
Land Rover Defender V8 (2022)	5x120	72.6 mm	-
Land Rover Defender (2013)	5x165.1	114.3 mm	16x7J

Questions about this wheel

Will these forged wheels fit my Land Rover Range Rover?

Yes. These rims are forged to order, so we machine the bolt pattern (5x120, 5x108, 5x165.1 for the vehicles listed) and the centre bore to your exact car. Send us the year, model and brake setup and we confirm fitment before production starts.

What sizes can I order?

Diameter, width and offset are cut to order on a 5-lug hub, from a factory-flush fit to an aggressive stance. Tell us the size you want and we check it against your car.

How much do these wheels cost?

The reference price starts from $220 per wheel. The final quote depends on size, finish and quantity, and we send it after confirming your fitment.

Can I choose a different color or finish?

Yes. Every wheel is finished to order; Gloss Black is one option shown here. Tell us the color, polish or two-tone finish you want.

Can custom forged wheels be returned?

Because each set is forged and machined to your order, we do not accept returns. That is why we confirm the fitment and specifications with you before production.
