Wheels / Monoblock / Hyundai Elantra N TCR Edition Forged Wheels – Gloss White 10-Spoke (19-20in, 5x114.3)

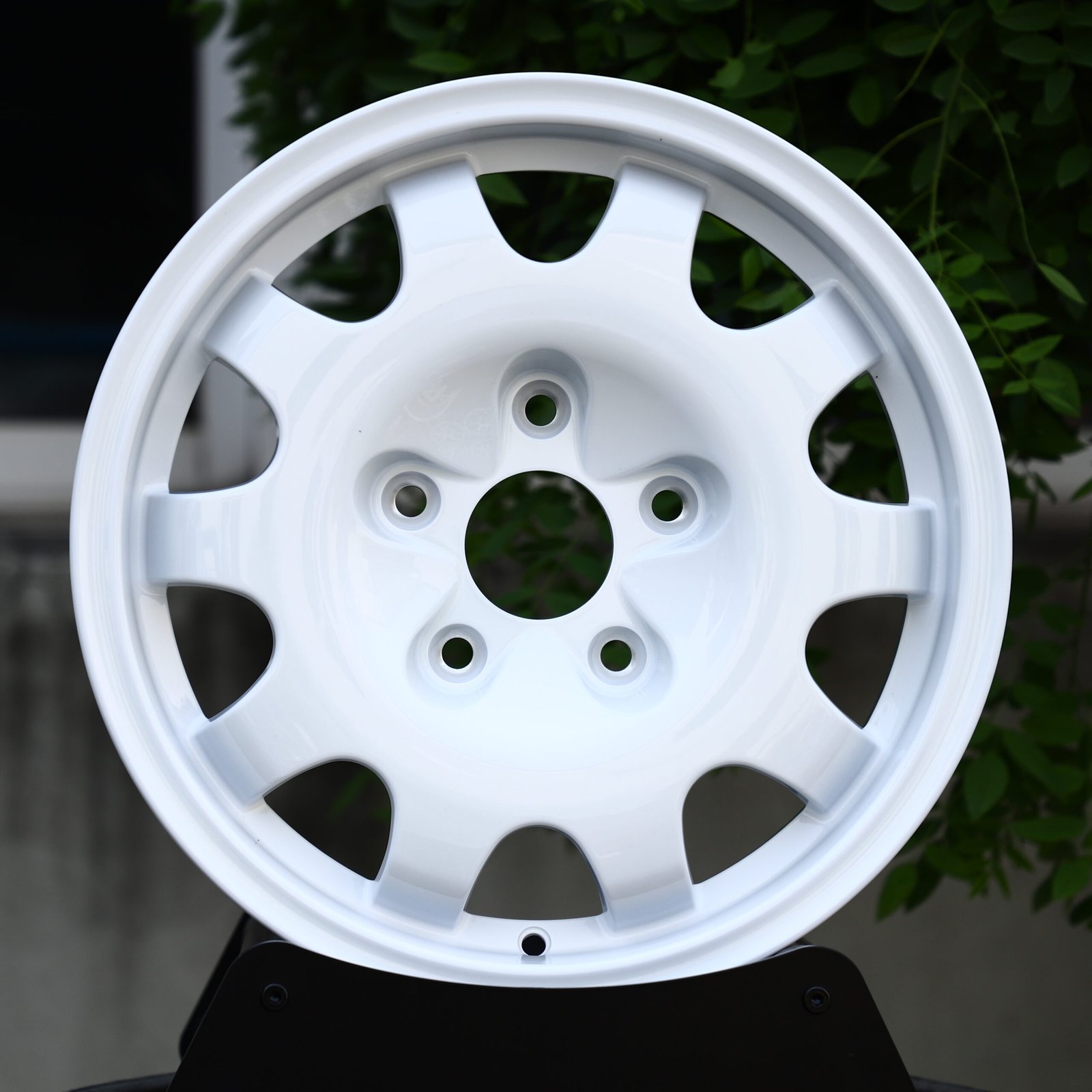

Hyundai Elantra N TCR Edition Forged Wheels – Gloss White 10-Spoke, front view

Hyundai Elantra N TCR Edition Forged Wheels – Gloss White 10-Spoke (19-20in, 5x114.3)

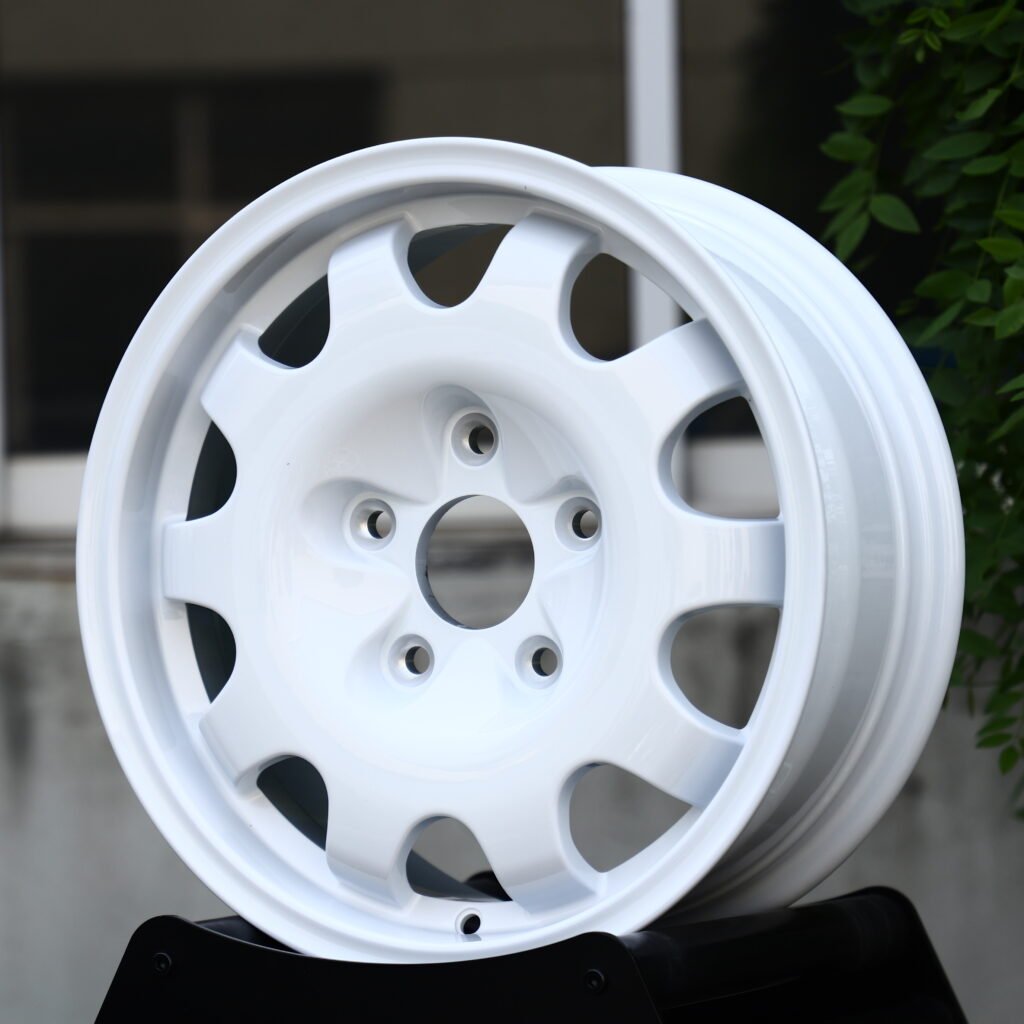

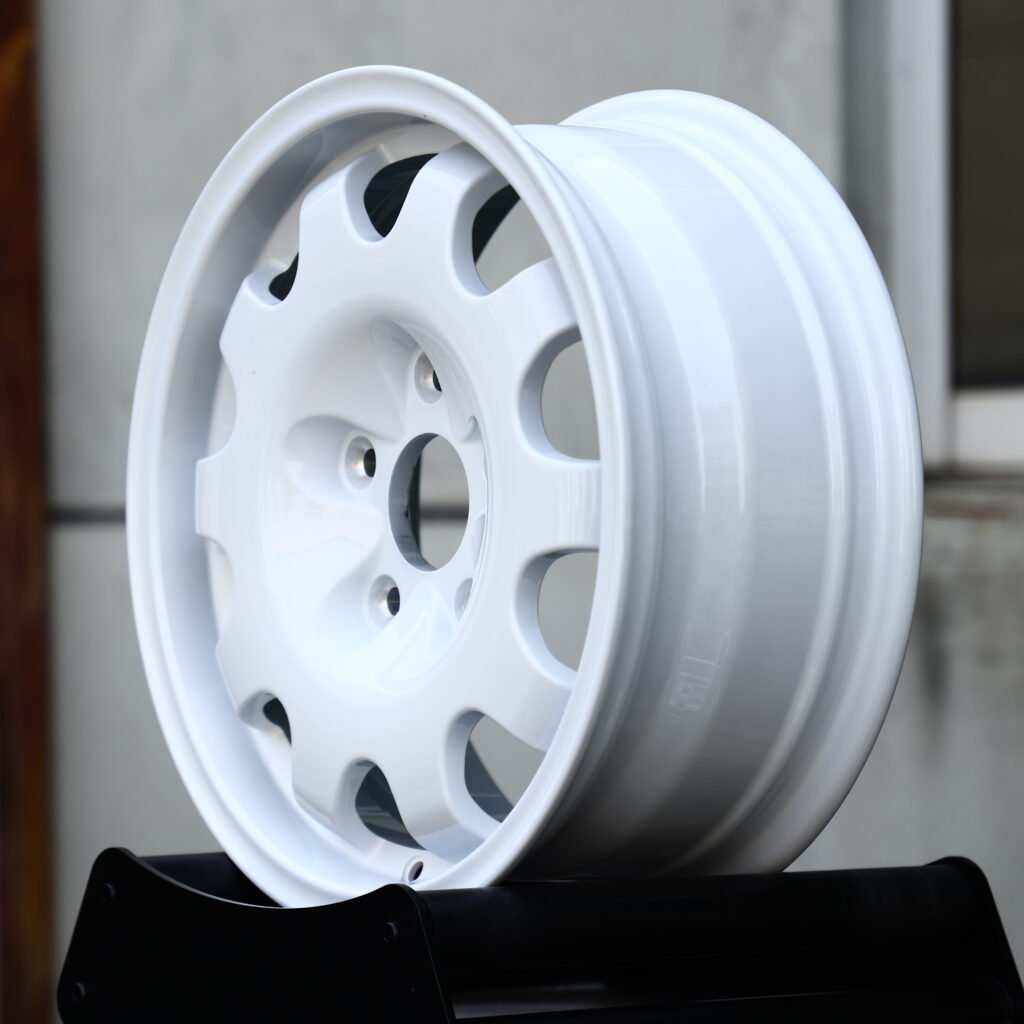

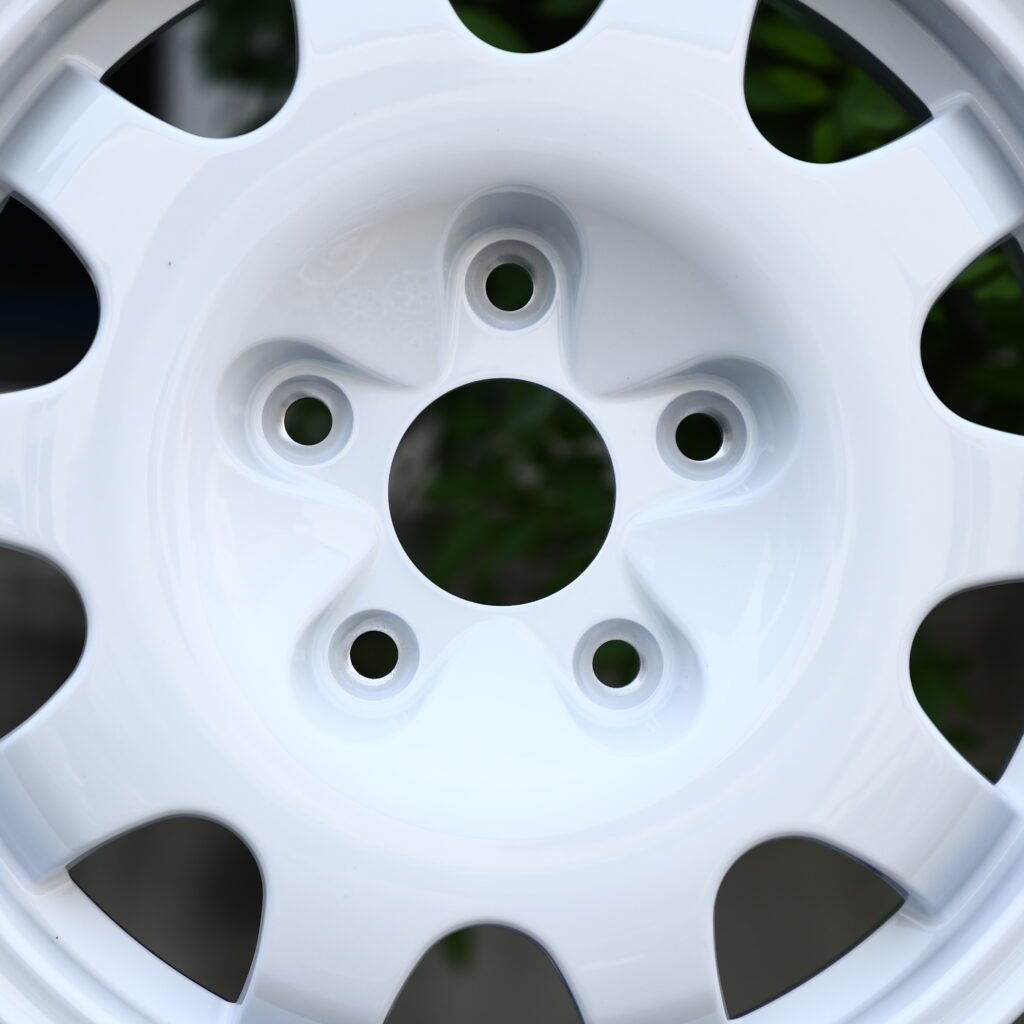

Forged wheels for the Hyundai Elantra N TCR Edition featuring the gloss white 10-spoke design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

Category	Monoblock
SKU	AK-GLOSS-RC-5X1143
Diameter	19", 20"
Width	8.0", 8.5", 9.0", 9.5"
Offset	+35mm, +40mm, +45mm, +50mm, +55mm
Bolt Pattern	5x114.3
Reference price	From $330 per wheel Approximate. Final quote depends on size, finish and quantity.
Made to order	Custom size, offset, PCD & finish

Every ANKUSI wheel is forged to order. Send your vehicle and target specs and we'll confirm exact fitment before production.

Product Details

Forged wheels for the Hyundai Elantra N TCR Edition featuring the gloss white 10-spoke design. Each wheel is forged from a solid 6061-T6 aluminium billet on ANKUSI's own 10,000-tonne press in Guangzhou, then CNC-machined, heat-treated and finished in-house under IATF 16949 and ISO 9001.

Design details

As a one-piece monoblock it is machined from a single forging, the lightest and stiffest construction we make. It is supplied with a plain centre cap, or with your own logo on request. Drilled for 5-lug hubs (5x114.3 as listed below), with diameter from 14 to 24 inch depending on brake clearance. See more multi-spoke and mesh forged wheels.

Load rating: 950–1,750 kg (2,094–3,858 lb) per wheel, set to your vehicle's axle load when the wheel is specified.

Compatible Vehicles

Hyundai Elantra N TCR Edition (5x114.3)
Tesla Model 3 (5x114.3)
Tesla Model Y (5x114.3)
Ford Mustang S550 (5x114.3)
Subaru WRX (5x114.3)
Subaru WRX STI (5x114.3)

Not seeing your exact trim or year? ANKUSI forges each set in-house, so custom PCD, offset and center bore combinations for other Hyundai models (and beyond) are available on request.

Offset / Backspacing Reference

At 9.5J width and ET45, backspacing works out to approximately 7.02in (backspacing ≈ width/2 + offset/25.4 + 0.5). Flush and aggressive setups within the ET35 to ET55 range are available — contact us with your fender/suspension specs for a tailored recommendation.

Get a fitment quote for this design and we will confirm exact specs for your car.

Hyundai Elantra N TCR Edition wheels: bolt patterns this design is cut for

This Hyundai Elantra N TCR Edition Forged design is forged blank and machined to order, so the same wheel is made as 5x114.3 wheels with the centre bore, width and offset your car needs. The vehicles below share the bolt pattern. Send us your year and model and we confirm the exact spec before production.

Hyundai Elantra N TCR Edition wheels – 5x114.3
Tesla Model 3 – 5x114.3, 64.1 mm centre bore
Tesla Model Y – 5x114.3, 64.1 mm centre bore (factory F: 21x9.5J R: 21x10.5J)
Ford Mustang S550 – 5x114.3, 70.5 mm centre bore (factory F: 19x9.5J R: 19x10.0J)
Subaru WRX – 5x114.3, 56.1 mm centre bore (factory 18x8.5J at ET55 offset, front and rear)
Subaru WRX STI – 5x114.3, 56.1 mm centre bore
Nissan GT-R R35 – 5x114.3, 66.1 mm centre bore (factory F: 20x9.5J R: 20x10.5J)
Acura TSX – 5x114.3, 64.1 mm centre bore
Morgan Plus Six – 5x114.3, 67.1 mm centre bore
Aston Martin V12 Vantage – 5x114.3, 68.1 mm centre bore (factory 19x9.0J)

Shipping and returns

Shipping costs about US$230–260 to the United States and US$250–300 to Europe; the exact figure is confirmed in your quotation. Wheels are forged to order, so they are not returnable, but if a wheel has a quality problem caused by the wheel itself we make and ship a new one at our cost. Shipping and returns details.

Fitment Reference

Factory bolt pattern, center bore and wheel sizes by generation for the vehicles this design is most often ordered for. We machine the bolt pattern and center bore to your exact car.

Vehicle	Bolt pattern	Center bore	Factory wheels
Hyundai Elantra N TCR Edition (2026)	5x114.3	67.1 mm	-

Questions about this wheel

Will these forged wheels fit my Hyundai Elantra N TCR Edition?

Yes. These rims are forged to order, so we machine the bolt pattern (5x114.3 for the vehicles listed) and the centre bore to your exact car. Send us the year, model and brake setup and we confirm fitment before production starts.

What sizes can I order?

Common diameters for this design are 19", 20". Diameter, width and offset are cut to order on a 5-lug hub, from a factory-flush fit to an aggressive stance. Tell us the size you want and we check it against your car.

How much do these wheels cost?

The reference price starts from $330 per wheel. The final quote depends on size, finish and quantity, and we send it after confirming your fitment.

Can I choose a different color or finish?

Yes. Every wheel is finished to order. Tell us the color, polish or two-tone finish you want.

Can custom forged wheels be returned?

Because each set is forged and machined to your order, we do not accept returns. That is why we confirm the fitment and specifications with you before production.
