Wheels / Off-Road / Fuel Off-Road Gloss Black Milled Wheels – Ford F-350 Fitment (20-22in, 8×170)

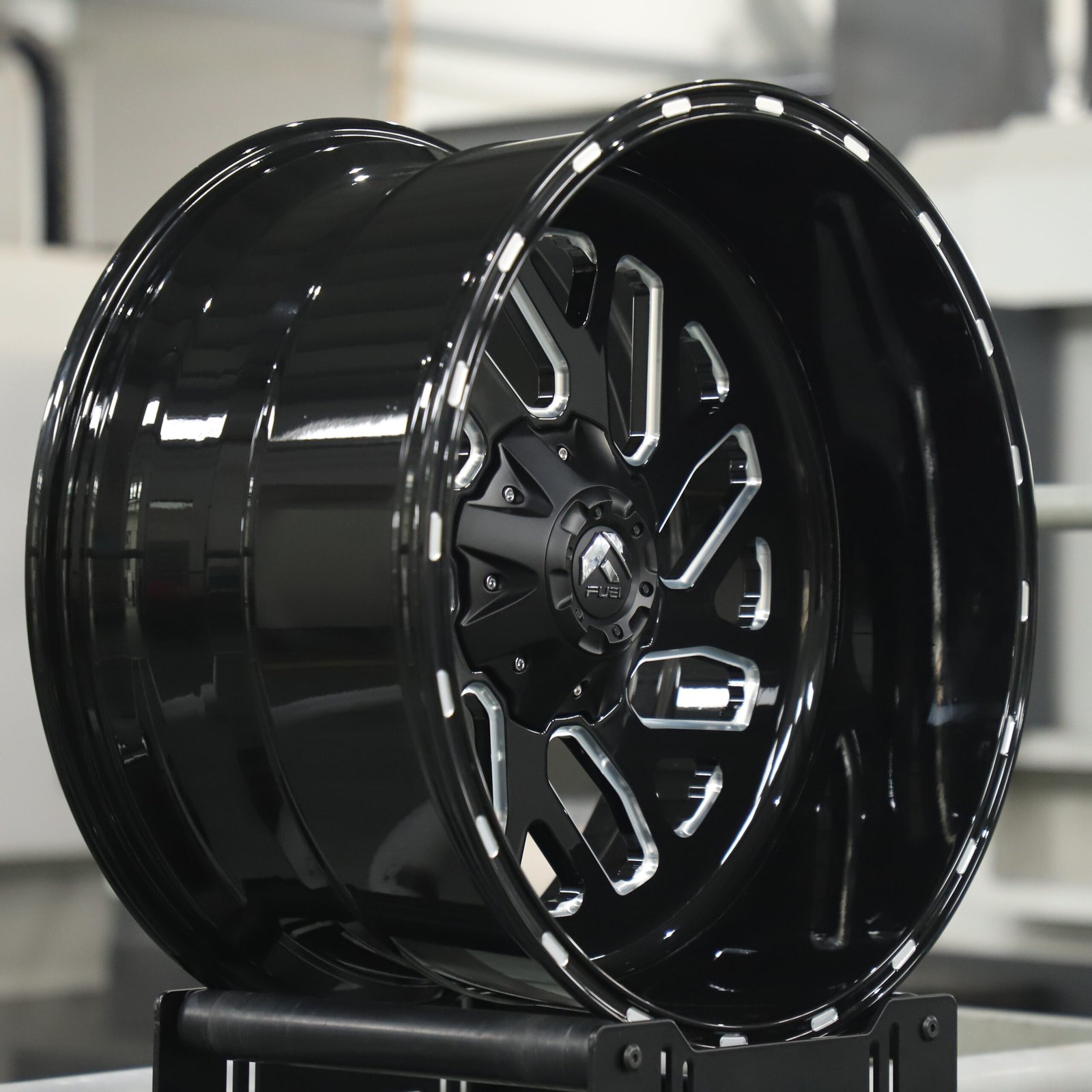

Fuel Off-Road Gloss Black Milled Wheels – Ford F-350, front view

Fuel Off-Road Gloss Black Milled Wheels – Ford F-350 Fitment (20-22in, 8×170)

Fuel-Style forged wheels featuring the gloss black milled design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

Category	Off-Road
SKU	AK-FUEL-BKML-8X170
Bolt Pattern	8x170
Diameter	20", 21", 22", 23", 24", 26", 28", 30"
Width	6.0", 6.5", 7.0", 7.5", 8.0", 8.5", 9.0", 9.5", 10.0", 10.5", 11.0", 11.5", 12.0", 12.5", 13.0"
Offset	-105mm, -100mm, -95mm, -90mm, -85mm, -80mm, -75mm, -70mm, -65mm, -60mm, -55mm, -50mm, -45mm, -40mm, -35mm, -30mm, -25mm, -20mm
Finish	Black Milled
Material	Forged Aluminum
Reference price	From $220 per wheel Approximate. Final quote depends on size, finish and quantity.
Made to order	Custom size, offset, PCD & finish

Every ANKUSI wheel is forged to order. Send your vehicle and target specs and we'll confirm exact fitment before production.

Product Details

Fuel-Style forged wheels featuring the gloss black milled design. Each wheel is forged from a solid 6061-T6 aluminium billet on ANKUSI's own 10,000-tonne press in Guangzhou, then CNC-machined, heat-treated and finished in-house under IATF 16949 and ISO 9001.

Design details

As a one-piece monoblock it is machined from a single forging, the lightest and stiffest construction we make. The photos show it with a Fuel centre cap; a plain or custom-logo cap is also available. Drilled for 5-lug hubs (8x170 as listed below), with diameter from 14 to 24 inch depending on brake clearance. See more fuel-style forged wheels, 8-lug heavy duty forged wheels.

Load rating: 950–1,750 kg (2,094–3,858 lb) per wheel, set to your vehicle's axle load when the wheel is specified.

Featured fitment: Ford F-350 – 8x170 PCD, 124.9mm center bore. Factory F-350 wheels run 16x7.0J at ET40. ANKUSI fitment data for this chassis shows a flush setup at 18x9.0J ET15, stepping up to a max aggressive 20x10.0J ET10 for the wheel-poke look before fender clearance gets tight. F-350 owners chasing this stance commonly pair the wheel change with a Carli Suspension leveling lift and upgraded towing brakes, running Toyo Open Country A/T III 35x12.50 R18 tires.

Offset / backspacing reference (max aggressive 20x10.0J ET10 example): backspacing ≈ 10.0/2 + 10/25.4 + 0.5 ≈ 5.89 inches. The flush 18x9.0J ET15 setup backspaces to ≈ 5.59 inches.

Available in custom PCD (8-lug and other patterns on request), center bore, and negative offset to fit Ford F-350 and other 8-lug HD trucks chasing an aggressive poke stance. Contact ANKUSI for a fitment quote on your specific chassis and year.

Ford F-350 wheels: bolt patterns this design is cut for

This Fuel Gloss Black Milled design is forged blank and machined to order, so the same wheel is made as 8x170 wheels with the centre bore, width and offset your car needs. The vehicles below share the bolt pattern; send us your year and model and we confirm the exact spec before production.

Ford F-350 wheels – 8x170
Ford F-250 Super Duty – 8x170, 124.9 mm centre bore (factory 18x8.0J F/R)
Ford Excursion – 8x170, 124.9 mm centre bore

Shipping and returns

Shipping costs about US$230–260 to the United States and US$250–300 to Europe; the exact figure is confirmed in your quotation. Wheels are forged to order, so they are not returnable, but if a wheel has a quality problem caused by the wheel itself we make and ship a new one at our cost. Shipping and returns details.

Fitment Reference

Factory bolt pattern, center bore and wheel sizes by generation for the vehicles this design is most often ordered for. We machine the bolt pattern and center bore to your exact car.

Vehicle	Bolt pattern	Center bore	Factory wheels
Ford F-350 (2006)	8x170	124.9 mm	-

Questions about this wheel

Will these forged wheels fit my Ford F-350?

Yes. These rims are forged to order, so we machine the bolt pattern (8x170 for the vehicles listed) and the centre bore to your exact car. Send us the year, model and brake setup and we confirm fitment before production starts.

What sizes can I order?

Common diameters for this design are 20", 21", 22", 23", 24", 26", 28", 30". Diameter, width and offset are cut to order on a 8-lug hub, from a factory-flush fit to an aggressive stance. Tell us the size you want and we check it against your car.

How much do these wheels cost?

The reference price starts from $220 per wheel. The final quote depends on size, finish and quantity, and we send it after confirming your fitment.

Can I choose a different color or finish?

Yes. Every wheel is finished to order; Black Milled is one option shown here. Tell us the color, polish or two-tone finish you want.

Can custom forged wheels be returned?

Because each set is forged and machined to your order, we do not accept returns. That is why we confirm the fitment and specifications with you before production.
