Wheels / Off-Road / CRC Machined Face 5-Spoke Y-Design Forged Wheels – Ford Bronco Filson Fitment (17-22in, 6x139.7)

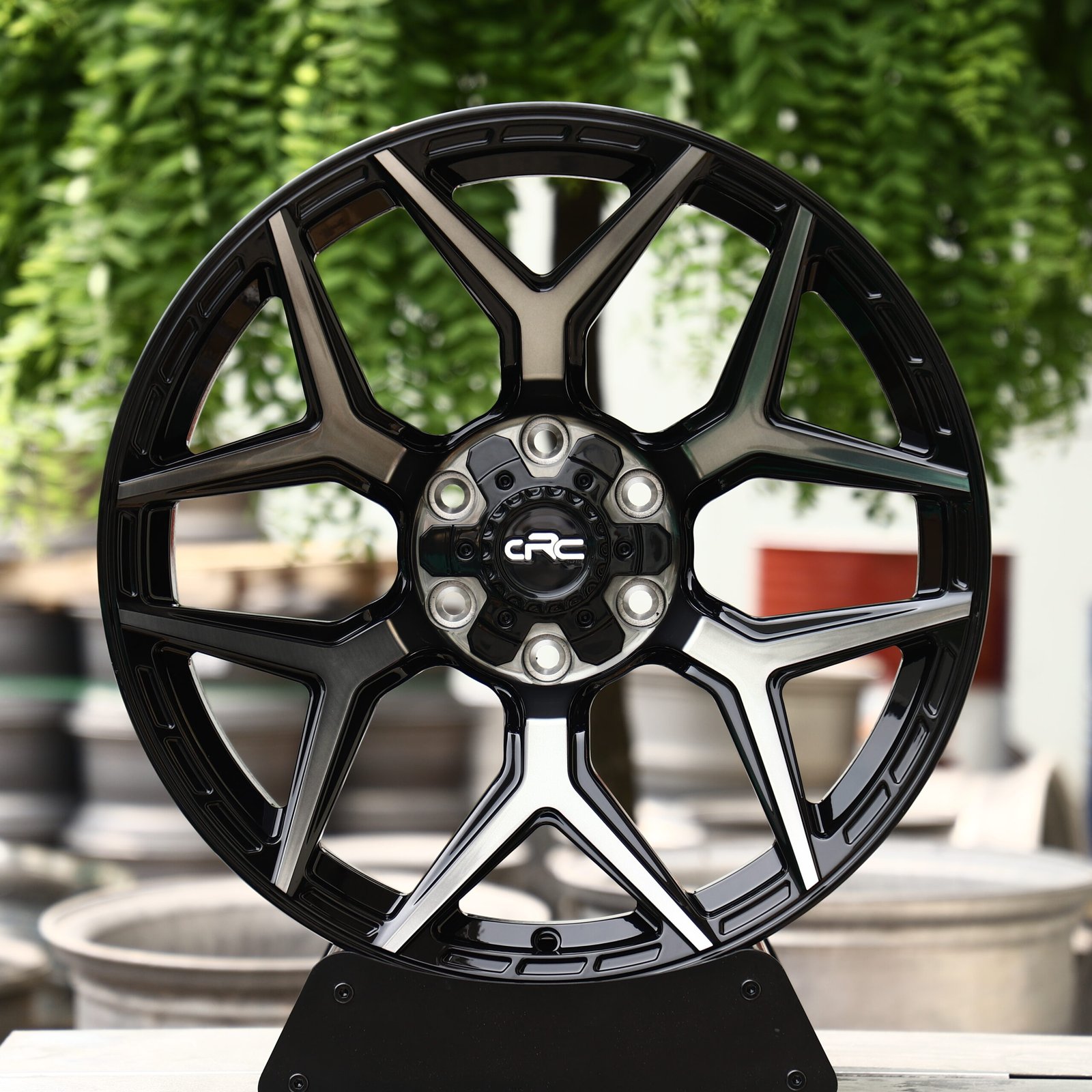

CRC Machined Face 5-Spoke Y-Design Forged Wheels – Ford Bronco Filson, front view

CRC Machined Face 5-Spoke Y-Design Forged Wheels – Ford Bronco Filson Fitment (17-22in, 6x139.7)

Forged wheels for the Ford Bronco Filson featuring the CRC machined face 5-spoke Y-design design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

Category	Off-Road
SKU	AK-CRC-OR-6X1397
Diameter	17", 18", 19", 20", 21", 22"
Width	8.0", 8.5", 9.0", 9.5", 10.0"
Offset	0mm, +5mm, +10mm, +15mm, +20mm, +25mm, +30mm, +35mm, +40mm, +45mm, +50mm, +55mm
Bolt Pattern	6x139.7
Reference price	From $240 per wheel Approximate. Final quote depends on size, finish and quantity.
Made to order	Custom size, offset, PCD & finish

Every ANKUSI wheel is forged to order. Send your vehicle and target specs and we'll confirm exact fitment before production.

Product Details

Forged wheels for the Ford Bronco Filson featuring the CRC machined face 5-spoke Y-design design. Each wheel is forged from a solid 6061-T6 aluminium billet on ANKUSI's own 10,000-tonne press in Guangzhou, then CNC-machined, heat-treated and finished in-house under IATF 16949 and ISO 9001.

Design details

As a one-piece monoblock it is machined from a single forging, the lightest and stiffest construction we make. It is supplied with a plain centre cap, or with your own logo on request. Drilled for 5-lug hubs (6x139.7 as listed below), with diameter from 14 to 24 inch depending on brake clearance. See more 5-spoke forged wheels, y-spoke forged wheels, machined face forged wheels.

Load rating: 950–1,750 kg (2,094–3,858 lb) per wheel, set to your vehicle's axle load when the wheel is specified.

Compatible Vehicles

Ford Bronco Filson (6x139.7)
Ford Ranger Super Duty [AU] (6x139.7)
GMC Sierra 1500 (6x139.7)

Not seeing your exact trim or year? ANKUSI forges each set in-house, so custom PCD, offset and center bore combinations for other Ford models (and beyond) are available on request.

Offset / Backspacing Reference

At 10J width and ET30, backspacing works out to approximately 6.68in (backspacing ≈ width/2 + offset/25.4 + 0.5). Flush and aggressive setups within the ET0 to ET55 range are available — contact us with your fender/suspension specs for a tailored recommendation.

Get a fitment quote for this design and we will confirm exact specs for your car.

Ford Bronco Filson wheels: bolt patterns this design is cut for

This CRC Machined Face 5-Spoke Y-Design design is forged blank and machined to order, so the same wheel is made as 6x139.7 wheels with the centre bore, width and offset your car needs. The vehicles below share the bolt pattern; send us your year and model and we confirm the exact spec before production.

Ford Bronco Filson wheels – 6x139.7
Toyota Tacoma – 6x139.7, 106.1 mm centre bore (factory F/R 17x7.5J)
Toyota 4Runner – 6x139.7, 106.1 mm centre bore (factory F/R 17x7.5J)
Chevrolet Silverado 1500 – 6x139.7, 78.1 mm centre bore (factory 20x9.0J at ET24 offset, front and rear)
Toyota Tundra – 6x139.7, 95.1 mm centre bore (factory 18x8.0J at ET60 offset, front and rear)
Toyota Land Cruiser 300 – 6x139.7, 95.1 mm centre bore
GMC Sierra 1500 – 6x139.7, 78.1 mm centre bore (factory 20x9J)

Shipping and returns

Shipping costs about US$230–260 to the United States and US$250–300 to Europe; the exact figure is confirmed in your quotation. Wheels are forged to order, so they are not returnable, but if a wheel has a quality problem caused by the wheel itself we make and ship a new one at our cost. Shipping and returns details.

Fitment Reference

Factory bolt pattern, center bore and wheel sizes by generation for the vehicles this design is most often ordered for. We machine the bolt pattern and center bore to your exact car.

Vehicle	Bolt pattern	Center bore	Factory wheels
Ford Bronco Filson (2027)	6x139.7	93.1 mm	17x8.5J at ET55 offset, front and rear

Questions about this wheel

Will these forged wheels fit my Ford Bronco Filson?

Yes. These rims are forged to order, so we machine the bolt pattern (6x139.7 for the vehicles listed) and the centre bore to your exact car. Send us the year, model and brake setup and we confirm fitment before production starts.

What sizes can I order?

Common diameters for this design are 17", 18", 19", 20", 21", 22". Diameter, width and offset are cut to order on a 6-lug hub, from a factory-flush fit to an aggressive stance. Tell us the size you want and we check it against your car.

How much do these wheels cost?

The reference price starts from $240 per wheel. The final quote depends on size, finish and quantity, and we send it after confirming your fitment.

Can I choose a different color or finish?

Yes. Every wheel is finished to order. Tell us the color, polish or two-tone finish you want.

Can custom forged wheels be returned?

Because each set is forged and machined to your order, we do not accept returns. That is why we confirm the fitment and specifications with you before production.
