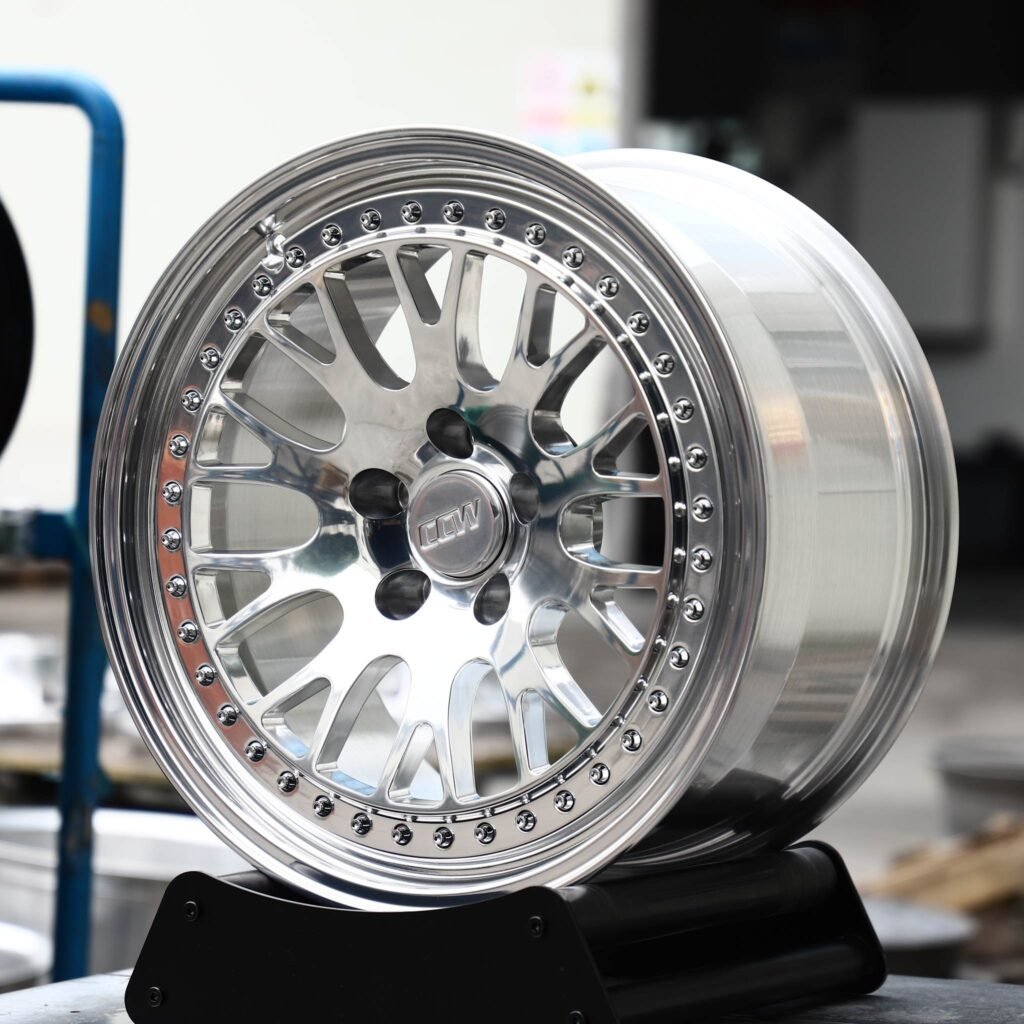

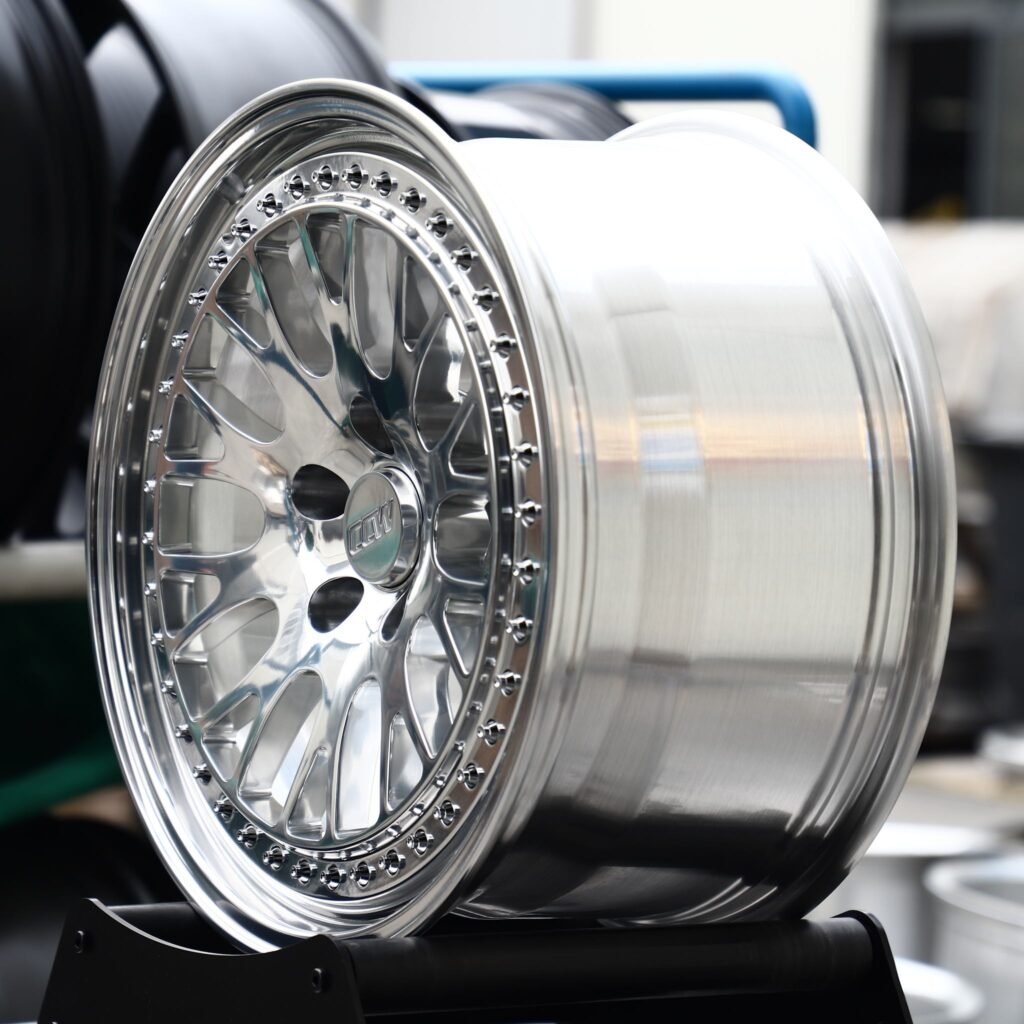

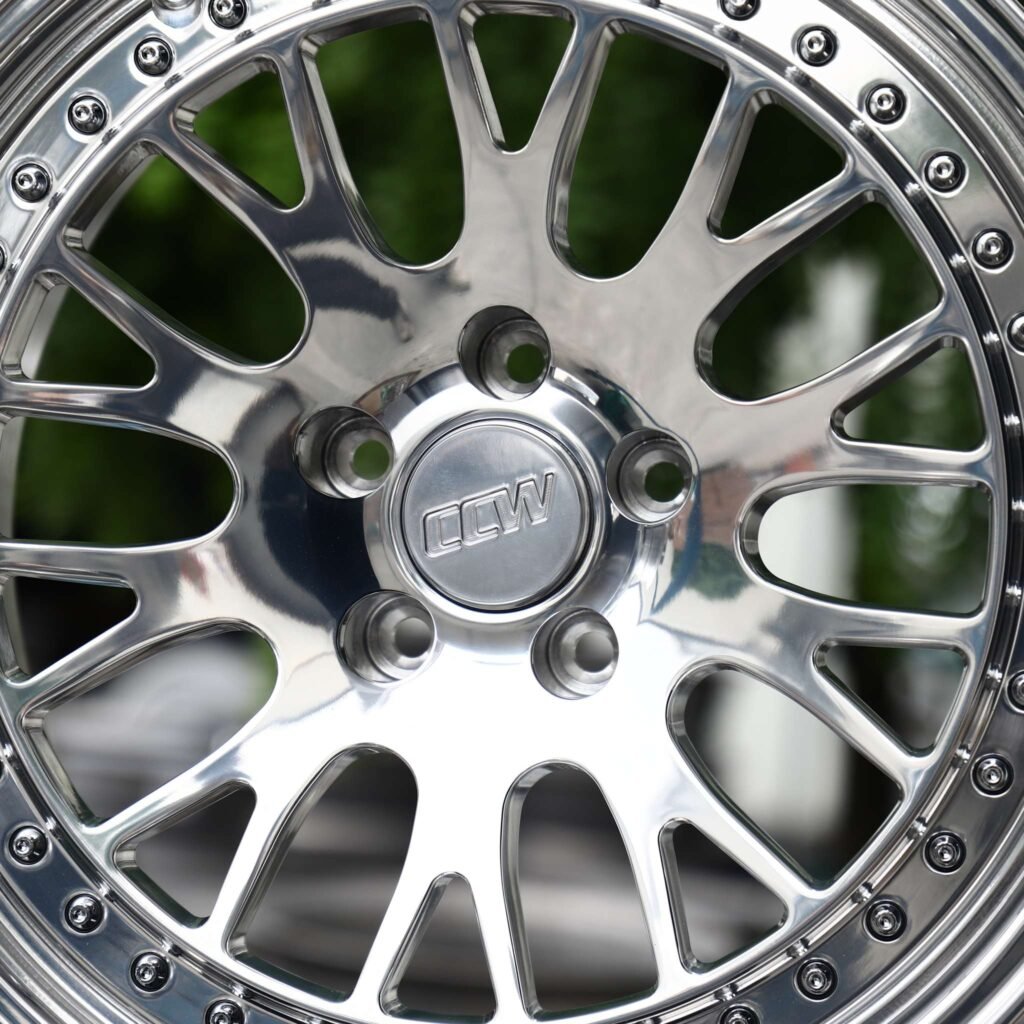

Wheels / 2-Piece / CCW-Style Mirror Polished Mesh 2-Piece Riveted Forged Wheels – BMW M3 / 911 Fitment (5-Lug)

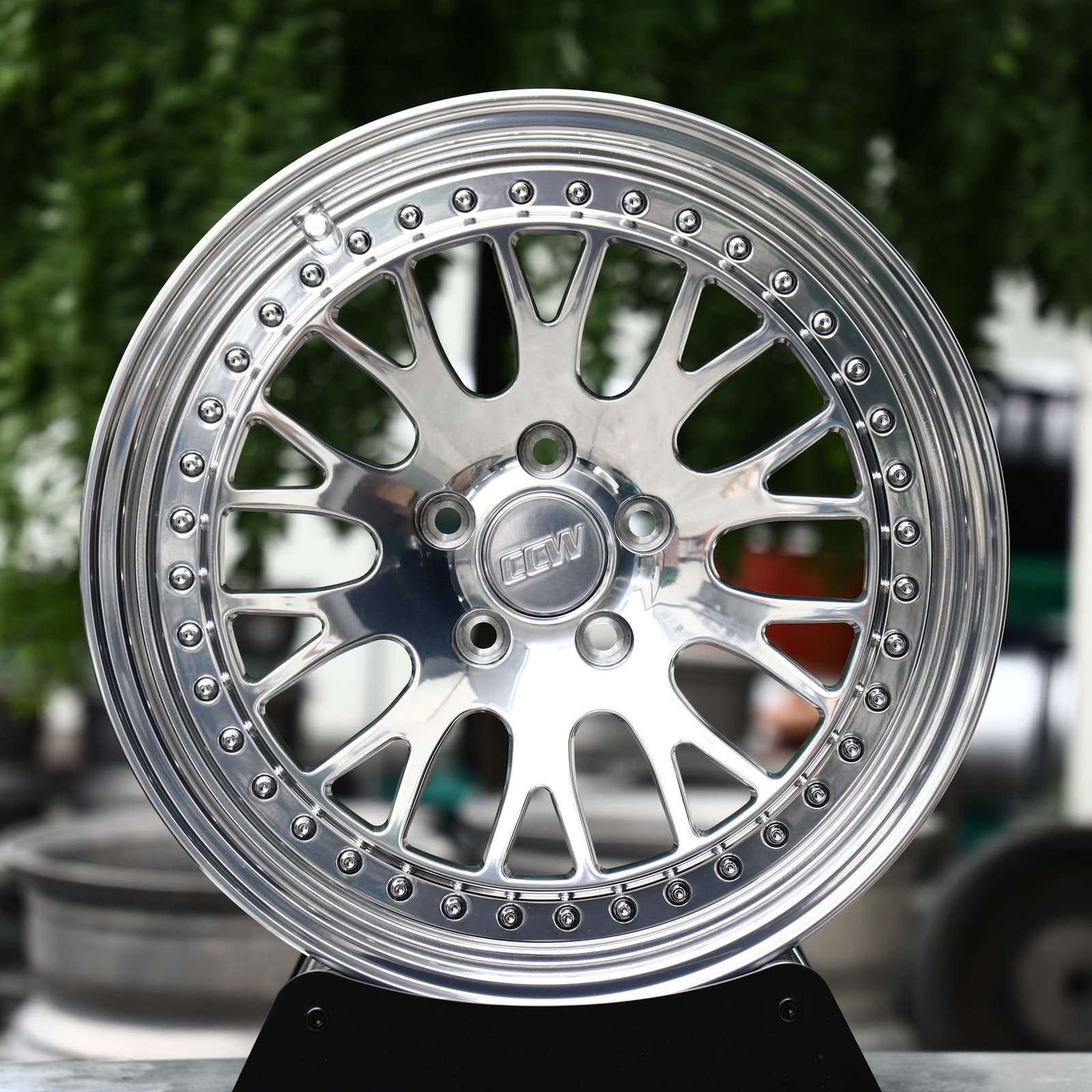

BMW M3 wheels – Mirror Polished Mesh 2-Piece Riveted (CCW-Style), front view

CCW-Style Mirror Polished Mesh 2-Piece Riveted Forged Wheels – BMW M3 / 911 Fitment (5-Lug)

CCW-Style forged wheels featuring the mirror polished mesh 2-piece riveted design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

Category	2-Piece
SKU	ANK-80672
Bolt Pattern	5x112, 5x120, 5x130
Finish	Mirror Polished
Material	Forged Aluminum
Reference price	From $220 per wheel Approximate. Final quote depends on size, finish and quantity.
Made to order	Custom size, offset, PCD & finish

Every ANKUSI wheel is forged to order. Send your vehicle and target specs and we'll confirm exact fitment before production.

Product Details

CCW-Style forged wheels featuring the mirror polished mesh 2-piece riveted design. Each wheel is forged from a solid 6061-T6 aluminium billet on ANKUSI's own 10,000-tonne press in Guangzhou, then CNC-machined, heat-treated and finished in-house under IATF 16949 and ISO 9001.

Design details

It is a two-piece build: a forged centre fastened into a separate barrel, so the lip depth and the offset can be set independently for your car. The photos show it with a CCW centre cap; a plain or custom-logo cap is also available. Drilled for 5-lug hubs (5x112, 5x120, 5x130 as listed below), with diameter from 14 to 24 inch depending on brake clearance. See more multi-spoke and mesh forged wheels, 2-piece forged wheels, riveted forged wheels.

Fitment

Commonly ordered for BMW M3 (5x120, 72.6mm centre bore or 5x112, 66.6mm centre bore); Porsche 911 (5x130, 71.6mm centre bore). Every set is cut to order, so we machine the bolt pattern, centre bore and offset to match your car exactly — send us the year, model and brake setup and we confirm the spec before anything is cut.

Specification

Construction: forged 6061-T6 aluminium
Bolt pattern: 5-lug, machined to order
Diameter and width: cut to order
Offset: calculated for your vehicle, flush to aggressive
Finish: Mirror Polished

Single sets through to full container orders. Tell us your vehicle and the stance you are after and we will quote.

BMW M3 wheels and Porsche 911 wheels: bolt patterns this design is cut for

This Mirror Polished Mesh 2-Piece Riveted design is forged blank and machined to order, so the same wheel is made as 5x120 wheels or 5x112 / 5x130 wheels with the centre bore, width and offset your car needs. The vehicles below share the bolt pattern; send us your year and model and we confirm the exact spec before production.

BMW M3 wheels – 5x120, 72.6 mm centre bore
Porsche 911 wheels – 5x130, 71.6 mm centre bore
BMW M4 F82 – 5x120, 72.6 mm centre bore (factory F: 19x9.0J R: 20x10.0J)
Lamborghini Huracan – 5x112, 57.1 mm centre bore
Audi R8 – 5x112, 57.1 mm centre bore (factory F: 20x8.5J R: 20x11.0J)
BMW M2 F87 – 5x120, 72.6 mm centre bore (factory F: 19x9.0J R: 19x10.0J)
Lamborghini Urus – 5x130, 71.5 mm centre bore
Mercedes-Benz G-Class W463 – 5x130, 84.1 mm centre bore (factory 19x8.5J F/R)

Shipping and returns

Shipping costs about US$230–260 to the United States and US$250–300 to Europe; the exact figure is confirmed in your quotation. Wheels are forged to order, so they are not returnable, but if a wheel has a quality problem caused by the wheel itself we make and ship a new one at our cost. Shipping and returns details.

Fitment Reference

Factory bolt pattern, center bore and wheel sizes by generation for the vehicles this design is most often ordered for. We machine the bolt pattern and center bore to your exact car.

Vehicle	Bolt pattern	Center bore	Factory wheels
BMW M3 Touring G81 (2025)	5x112	66.6 mm	F: 19x9.5J R: 20x10.5J
BMW M3 CS G80 (2024)	5x112	66.6 mm	F: 19x9.5J R: 20x10.5J
BMW M3 CS F80 (2018)	5x120	72.6 mm	F: 19x9.0J R: 20x10.0J
Porsche 911 GT2 (2008)	5x130	71.6 mm	F: 19x8.5J R: 19x12J

Questions about this wheel

Will these forged wheels fit my BMW M3?

Yes. These rims are forged to order, so we machine the bolt pattern (5x112, 5x120, 5x130 for the vehicles listed) and the centre bore to your exact car. Send us the year, model and brake setup and we confirm fitment before production starts.

What sizes can I order?

Diameter, width and offset are cut to order on a 5-lug hub, from a factory-flush fit to an aggressive stance. Tell us the size you want and we check it against your car.

How much do these wheels cost?

The reference price starts from $220 per wheel. The final quote depends on size, finish and quantity, and we send it after confirming your fitment.

Can I choose a different color or finish?

Yes. Every wheel is finished to order; Mirror Polished is one option shown here. Tell us the color, polish or two-tone finish you want.

Can custom forged wheels be returned?

Because each set is forged and machined to your order, we do not accept returns. That is why we confirm the fitment and specifications with you before production.
