Wheels / Concave / APEX-Style Matte Bronze 10-Spoke Concave Forged Wheels – Audi A5 / Volkswagen Golf Fitment (5-Lug)

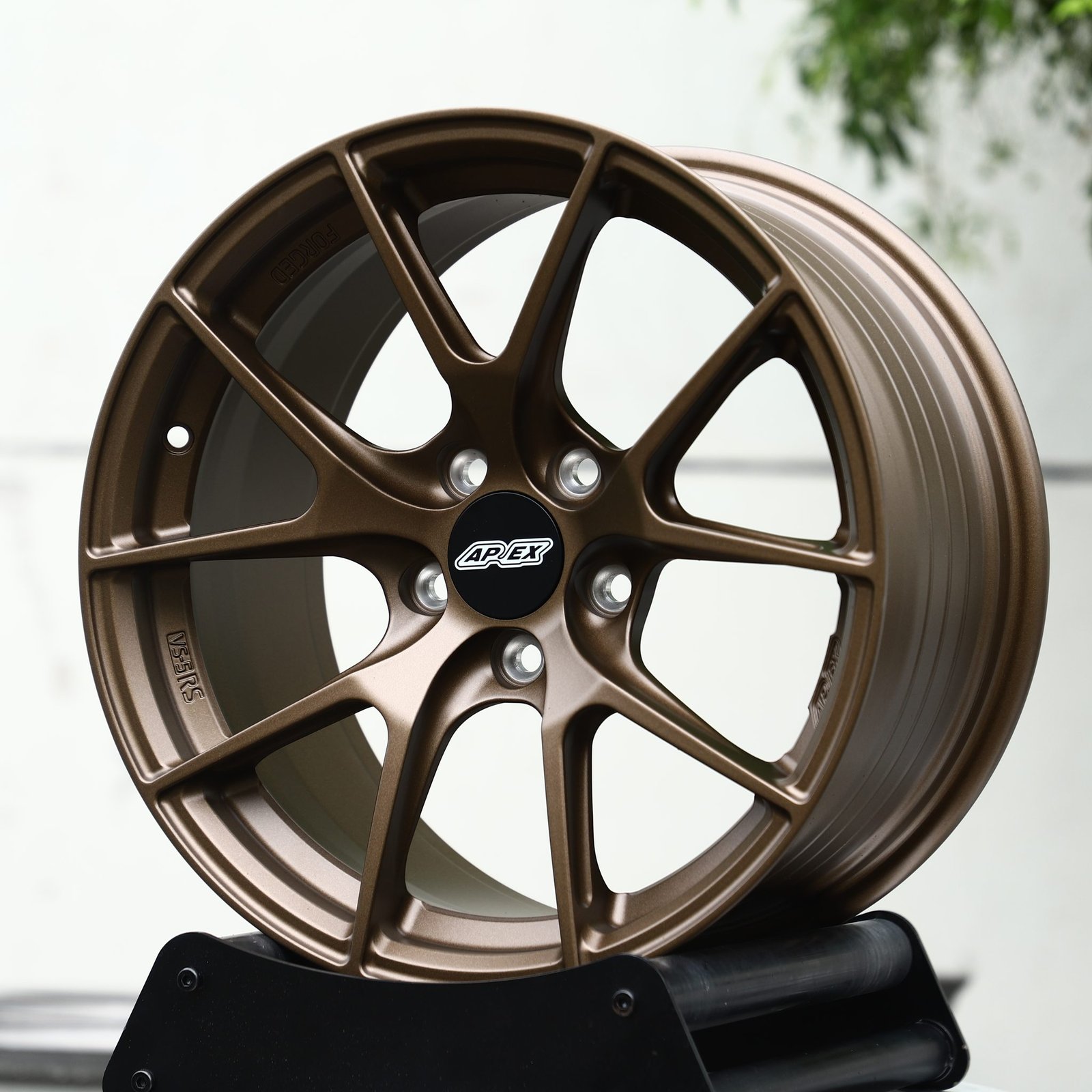

Audi A5 wheels – Matte Bronze 10-Spoke Concave (APEX-Style), front view

APEX-Style Matte Bronze 10-Spoke Concave Forged Wheels – Audi A5 / Volkswagen Golf Fitment (5-Lug)

APEX-Style forged wheels featuring the matte bronze 10-spoke concave design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

Category	Concave
SKU	ANK-82018
Bolt Pattern	5x112
Finish	Matte Bronze
Material	Forged Aluminum
Reference price	From $220 per wheel Approximate. Final quote depends on size, finish and quantity.
Made to order	Custom size, offset, PCD & finish

Every ANKUSI wheel is forged to order. Send your vehicle and target specs and we'll confirm exact fitment before production.

Product Details

APEX-Style forged wheels featuring the matte bronze 10-spoke concave design. Each wheel is forged from a solid 6061-T6 aluminium billet on ANKUSI's own 10,000-tonne press in Guangzhou, then CNC-machined, heat-treated and finished in-house under IATF 16949 and ISO 9001.

Design details

The concave face is cut to the width and offset you order, so a wider, lower-offset wheel gets a deeper curve than a narrow one. The photos show it with a APEX centre cap; a plain or custom-logo cap is also available. Drilled for 5-lug hubs (5x112 as listed below), with diameter from 14 to 24 inch depending on brake clearance. See more apex-style forged wheels, multi-spoke and mesh forged wheels, concave forged wheels.

Fitment

Commonly ordered for Audi A5 (5x112, 66.5mm centre bore); Volkswagen Golf (5x112, 57.1mm centre bore). Every set is cut to order, so we machine the bolt pattern, centre bore and offset to match your car exactly — send us the year, model and brake setup and we confirm the spec before anything is cut.

Specification

Construction: forged 6061-T6 aluminium
Bolt pattern: 5-lug, machined to order
Diameter and width: cut to order
Offset: calculated for your vehicle, flush to aggressive
Finish: Matte Bronze

Single sets through to full container orders. Tell us your vehicle and the stance you are after and we will quote.

Audi A5 wheels and Volkswagen Golf wheels: bolt patterns this design is cut for

This Matte Bronze 10-Spoke Concave design is forged blank and machined to order, so the same wheel is made as 5x112 wheels with the centre bore, width and offset your car needs. The vehicles below share the bolt pattern; send us your year and model and we confirm the exact spec before production.

Audi A5 wheels – 5x112, 66.5 mm centre bore
Volkswagen Golf wheels – 5x112, 57.1 mm centre bore
Toyota GR Supra – 5x112, 66.6 mm centre bore
Audi A4 B9 – 5x112, 66.5 mm centre bore (factory 19x8.5J F/R)
Audi A6 C8 – 5x112, 66.5 mm centre bore (factory 19x8.5J F/R)
Audi RS3 8Y – 5x112, 57.1 mm centre bore (factory F: 19x9.0J R: 19x8.0J)
Mercedes-Benz C-Class W206 – 5x112, 66.6 mm centre bore (factory 18x8.0J F/R)
Mercedes-Benz E-Class W213 – 5x112, 66.6 mm centre bore (factory 19x8.5J F/R)

Shipping and returns

Shipping costs about US$230–260 to the United States and US$250–300 to Europe; the exact figure is confirmed in your quotation. Wheels are forged to order, so they are not returnable, but if a wheel has a quality problem caused by the wheel itself we make and ship a new one at our cost. Shipping and returns details.

Fitment Reference

Factory bolt pattern, center bore and wheel sizes by generation for the vehicles this design is most often ordered for. We machine the bolt pattern and center bore to your exact car.

Vehicle	Bolt pattern	Center bore	Factory wheels
Audi A5 Avant (2025)	5x112	66.5 mm	18x8.0J F/R
Volkswagen Golf R (2025)	5x112	57.1 mm	F/R 19x8.0J

Questions about this wheel

Will these forged wheels fit my Audi A5?

Yes. These rims are forged to order, so we machine the bolt pattern (5x112 for the vehicles listed) and the centre bore to your exact car. Send us the year, model and brake setup and we confirm fitment before production starts.

What sizes can I order?

Diameter, width and offset are cut to order on a 5-lug hub, from a factory-flush fit to an aggressive stance. Tell us the size you want and we check it against your car.

How much do these wheels cost?

The reference price starts from $220 per wheel. The final quote depends on size, finish and quantity, and we send it after confirming your fitment.

Can I choose a different color or finish?

Yes. Every wheel is finished to order; Matte Bronze is one option shown here. Tell us the color, polish or two-tone finish you want.

Can custom forged wheels be returned?

Because each set is forged and machined to your order, we do not accept returns. That is why we confirm the fitment and specifications with you before production.
