Custom Forged Wheels for the Nissan Sentra (5x114.3)
ANKUSI forges custom wheels for the Nissan Sentra, drilled 5x114.3 with a 66.1 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 17x7J ET40 (model year 2024).
Recommended wheel sizes for the Nissan Sentra
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 17x7J | ET40 |
| Flush | 18x8J | ET35 |
| Max | 18x8.5J | ET30 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Nissan Sentra
Forged wheels that can be drilled for the Nissan Sentra
Rays-Style Matte Black 6-Spoke Deep Lip Racing Forged Wheels – Nissan 370Z / Toyota GR86 Fitment (5-Lug)
Rays-Style Gloss Black 5 Y-Spoke Pinstripe Lip Forged Wheels – Nissan GT-R / Toyota GR Supra Fitment (5-Lug)
Honda Civic / Mazda MX-5 Forged Wheels – Polished Silver 6-Spoke Deep Lip (5-Lug)
Vossen HF-7-Style Brushed Silver Multi-Spoke Forged Wheels - Tesla Model Y / Tesla Model 3 Fitment (5-Lug)
Nissan OEM-Style Black Chrome Split 5-Spoke Beadlock Forged Wheels – Nissan 370Z / GT-R Fitment (5-Lug)
Rays-Style Bronze 5 Y-Spoke Side-Milled Forged Wheels – Nissan 370Z / Toyota GR86 Fitment (5-Lug)

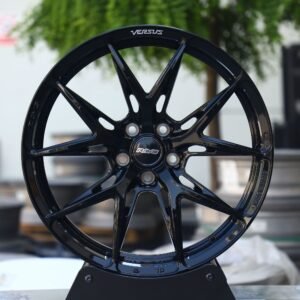

Rays-Style Gloss Black 5 Y-Spoke Side-Milled Forged Wheels – Nissan 370Z / Toyota GR86 Fitment (5-Lug)

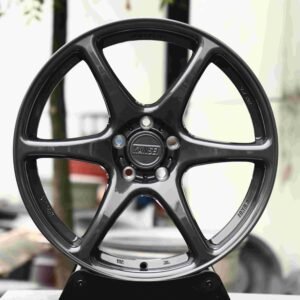

Nissan 370Z / Toyota GR86 Forged Wheels – Gunmetal 6-SpokeGet a quote for Nissan Sentra wheels
Vehicles With the Same Hub as the Nissan Sentra (5x114.3, 66.1 mm Bore)
In our database, 118 other vehicle entries from 8 makes use exactly the same 5x114.3 bolt pattern and 66.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x114.3 is used by 20.1% of the vehicle entries in our database (1,284 of 6,396); 17.5% of those also use a 66.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 17x7J | ET40 | 5.57 in (142 mm) | — | — |
| Flush | 18x8J | ET35 | 5.88 in (149 mm) | +8 mm | +18 mm |
| Maximum | 18x8.5J | ET30 | 5.93 in (151 mm) | +9 mm | +29 mm |
Hub-Centric Rings for a 66.1 mm Center Bore
A wheel with a center bore larger than 66.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 66.6 mm | 66.6 → 66.1 mm |
| 67.1 mm | 67.1 → 66.1 mm |
| 70.1 mm | 70.1 → 66.1 mm |
| 70.5 mm | 70.5 → 66.1 mm |
| 73.1 mm | 73.1 → 66.1 mm |
ANKUSI forged wheels are bored to exactly 66.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Nissan Sentra take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x114.3 with a 66.1 mm center bore.
What is the factory wheel size of the Nissan Sentra?
The factory size in our database is 17x7J ET40. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Nissan Sentra flush?
We recommend 18x8J ET35 for a flush fit and 18x8.5J ET30 as the maximum. Check clearance before ordering.
