Custom Forged Wheels for the Karma Revero (5x120)
ANKUSI forges custom wheels for the Karma Revero, drilled 5x120 with a 67.1 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 21x8.5J ET35 (model year 2020).
Recommended wheel sizes for the Karma Revero
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 21x8.5J | ET35 |
| Flush | 21x9.5J | ET25 |
| Max | 22x9.5J | ET20 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Karma Revero
Forged wheels that can be drilled for the Karma Revero
BMW M3 / M5 Forged Wheels – Gloss Black 10-Spoke Carbon Fibre
Advan-Style Gunmetal 5-Spoke Deep-Lip Forged Wheels – Porsche 911 / M3 Fitment (5-Lug)
Corvette OEM-Style Matte Silver Custom Forged Wheels – Chevrolet Corvette C8 / Camaro 5th Gen Fitment (5-Lug)
BMW 5 Series / 3 Series Forged Wheels – Gloss Black 10-Spoke Polished Lip
Toyota GR Supra / BMW M2 Forged Wheels – Gloss Black Y-Spoke Mesh 2-Piece Polished Deep Lip (5-Lug)
Advan Racing-Style Silver 5-Spoke Forged Wheels – Porsche 911 / M3 Fitment (5-Lug)
Rays-Style Matte Silver 5 V-Spoke Forged Wheels – Porsche 911 / M3 Fitment (5-Lug)

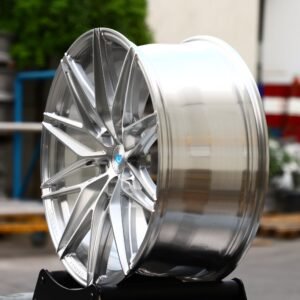

Audi A6 / Mercedes-Benz E-Class Forged Wheels – Polished Silver Split 10-Spoke Deep Lip 2-PieceGet a quote for Karma Revero wheels
Vehicles With the Same Hub as the Karma Revero (5x120, 67.1 mm Bore)
In our database, 8 other vehicle entries from 4 makes use exactly the same 5x120 bolt pattern and 67.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x120 is used by 10.3% of the vehicle entries in our database (670 of 6,503); 1.6% of those also use a 67.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 21x8.5J | ET35 | 6.13 in (156 mm) | — | — |
| Flush | 21x9.5J | ET25 | 6.23 in (158 mm) | +3 mm | +23 mm |
| Maximum | 22x9.5J | ET20 | 6.04 in (153 mm) | −2 mm | +28 mm |
Hub-Centric Rings for a 67.1 mm Center Bore
A wheel with a center bore larger than 67.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 70.1 mm | 70.1 → 67.1 mm |
| 70.5 mm | 70.5 → 67.1 mm |
| 71.6 mm | 71.6 → 67.1 mm |
| 72.6 mm | 72.6 → 67.1 mm |
| 73.1 mm | 73.1 → 67.1 mm |
ANKUSI forged wheels are bored to exactly 67.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Karma Revero take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x120 with a 67.1 mm center bore.
What is the factory wheel size of the Karma Revero?
The factory size in our database is 21x8.5J ET35. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Karma Revero flush?
We recommend 21x9.5J ET25 for a flush fit and 22x9.5J ET20 as the maximum. Check clearance before ordering.
