Custom Forged Wheels for the Hyundai Kona N (5x114.3)
ANKUSI forges custom wheels for the Hyundai Kona N, drilled 5x114.3 with a 67.1 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 18x7.5J ET50 (model year 2022).
Recommended wheel sizes for the Hyundai Kona N
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 18x7.5J | ET50 |
| Flush | 19x8J | ET40 |
| Max | 20x8.5J | ET35 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Hyundai Kona N
Forged wheels that can be drilled for the Hyundai Kona N
Kia Stinger / Hyundai Genesis Forged Wheels – Gloss Black Y-Spoke Mesh (5-Lug)
EvoCorse-Style Satin Black 12-Spoke Rally Forged Wheels – Kia Stinger / Hyundai Genesis Fitment (5-Lug)
Vossen HF-5-Style Bronze 5 Y-Spoke Concave Forged Wheels - Tesla Model 3 / Tesla Model Y Fitment (5-Lug)
Alpine OEM-Style Hyper Silver 5 Y-Spoke Forged Wheels – Alpine A290 Fitment (5-Lug)

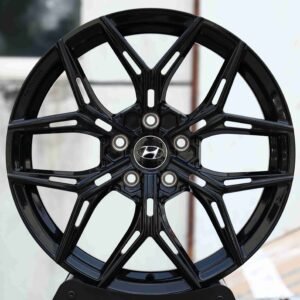

Hyundai OEM-Style Gloss Black 6 Y-Spoke Side-Milled Forged Wheels – Hyundai Elantra N / i20 N Line Fitment (5-Lug)
Hyundai N Style High-Gloss Silver 10-Spoke Forged Wheels – Hyundai Elantra N / i20 N Line Fitment (5-Lug)
Vossen-Style Bright Silver Y-Spoke Mesh Forged Wheels – Kia Stinger / Hyundai Genesis Fitment (5-Lug)
HRE-Style Polished 5 Split Y-Spoke Forged Wheels – Kia Stinger / Hyundai Genesis Fitment (5-Lug)Get a quote for Hyundai Kona N wheels
Vehicles With the Same Hub as the Hyundai Kona N (5x114.3, 67.1 mm Bore)
In our database, 367 other vehicle entries from 25 makes use exactly the same 5x114.3 bolt pattern and 67.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x114.3 is used by 20.1% of the vehicle entries in our database (1,284 of 6,396); 35.0% of those also use a 67.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 18x7.5J | ET50 | 6.22 in (158 mm) | — | — |
| Flush | 19x8J | ET40 | 6.07 in (154 mm) | −4 mm | +16 mm |
| Maximum | 20x8.5J | ET35 | 6.13 in (156 mm) | −2 mm | +28 mm |
Hub-Centric Rings for a 67.1 mm Center Bore
A wheel with a center bore larger than 67.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 70.1 mm | 70.1 → 67.1 mm |
| 70.5 mm | 70.5 → 67.1 mm |
| 71.6 mm | 71.6 → 67.1 mm |
| 72.6 mm | 72.6 → 67.1 mm |
| 73.1 mm | 73.1 → 67.1 mm |
ANKUSI forged wheels are bored to exactly 67.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Hyundai Kona N take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x114.3 with a 67.1 mm center bore.
What is the factory wheel size of the Hyundai Kona N?
The factory size in our database is 18x7.5J ET50. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Hyundai Kona N flush?
We recommend 19x8J ET40 for a flush fit and 20x8.5J ET35 as the maximum. Check clearance before ordering.
