Custom Forged Wheels for the Honda CR-V (5x114.3)
ANKUSI forges custom wheels for the Honda CR-V, drilled 5x114.3 with a 64.1 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 18x7.5J ET45 (model year 2025).
Recommended wheel sizes for the Honda CR-V
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 18x7.5J | ET45 |
| Flush | 20x8.5J | ET45 |
| Max | 20x9J | ET40 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Honda CR-V
Forged wheels that can be drilled for the Honda CR-V
Rays-Style Candy Blue 10-Spoke Forged Wheels – Honda Civic Type R / Subaru WRX Fitment (5-Lug)
Honda Civic / Accord Forged Wheels – Matte Silver Directional Milled Machined Face
Honda Civic / Mazda MX-5 Forged Wheels – Polished Silver 6-Spoke Deep Lip (5-Lug)
Honda Machined Face 5-Spoke Y-Design Forged Wheels – Honda NSX Tribute by Italdesign Fitment (18-21in, 5x120)
Advan Racing GT-Style White 5-Spoke Forged Wheels – Toyota GR86 / Honda Civic Type R Fitment (5-Lug)
Honda OEM-Style Gloss White Custom Forged Wheels – Honda Civic / Accord Fitment (5-Lug)
Toyota GR86 / Honda Civic Type R Forged Wheels – Gloss Black Deep Lip

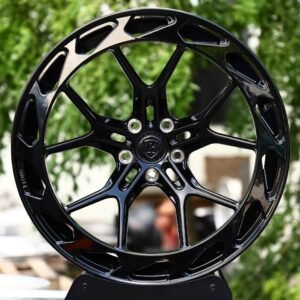

Toyota Camry / Honda Accord Forged Wheels – Gloss Black Split-Spoke Windowed (5-Lug)Get a quote for Honda CR-V wheels
Vehicles With the Same Hub as the Honda CR-V (5x114.3, 64.1 mm Bore)
In our database, 23 other vehicle entries from 6 makes use exactly the same 5x114.3 bolt pattern and 64.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x114.3 is used by 20.1% of the vehicle entries in our database (1,284 of 6,396); 3.0% of those also use a 64.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 18x7.5J | ET45 | 6.02 in (153 mm) | — | — |
| Flush | 20x8.5J | ET45 | 6.52 in (166 mm) | +13 mm | +13 mm |
| Maximum | 20x9J | ET40 | 6.57 in (167 mm) | +14 mm | +24 mm |
Hub-Centric Rings for a 64.1 mm Center Bore
A wheel with a center bore larger than 64.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 65.1 mm | 65.1 → 64.1 mm |
| 66.1 mm | 66.1 → 64.1 mm |
| 66.6 mm | 66.6 → 64.1 mm |
| 67.1 mm | 67.1 → 64.1 mm |
| 73.1 mm | 73.1 → 64.1 mm |
ANKUSI forged wheels are bored to exactly 64.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Honda CR-V take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x114.3 with a 64.1 mm center bore.
What is the factory wheel size of the Honda CR-V?
The factory size in our database is 18x7.5J ET45. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Honda CR-V flush?
We recommend 20x8.5J ET45 for a flush fit and 20x9J ET40 as the maximum. Check clearance before ordering.
