Custom Forged Wheels for the Dodge Dart (5x110)
ANKUSI forges custom wheels for the Dodge Dart, drilled 5x110 with a 65.1 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 18x7.5J ET41 (model year 2014).
Recommended wheel sizes for the Dodge Dart
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 18x7.5J | ET41 |
| Flush | 18x8.5J | ET35 |
| Max | 19x8.5J | ET32 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Dodge Dart
Forged wheels that can be drilled for the Dodge Dart
Dodge OEM-Style Matte Black 5-Spoke Forged Wheels – Dodge Challenger / Charger Fitment (5-Lug)
Weld Racing-Style Gloss Black 5-Spoke Red Deep Lip Forged Drag Racing Wheels – Chevrolet Camaro / Dodge Challenger Fitment (5-Lug)
HRE 522M-Style Polished Silver 5-Spoke Directional Forged Wheels - Porsche Cayenne / Porsche 911 Fitment (5-Lug)
Jeep Wrangler / Grand Cherokee Off-Road Forged Wheels – Gloss Black Machined 7-Spoke Riveted (5-Lug)

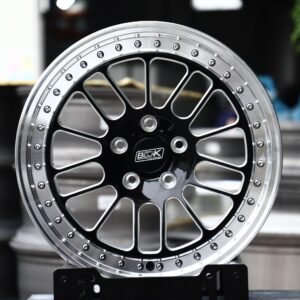

Belak-Style Gloss Black Milled Mesh Polished Riveted Lip Forged Drag Racing Wheels – Dodge Challenger / Ford Mustang Fitment (5-Lug)
Belak-Style Gloss Black 5-Star Red Ring Beadlock Forged Drag Racing Wheels – Ford Mustang / Challenger Fitment (5-Lug)
Ford Mustang / Chevrolet Corvette Forged Wheels – Gloss Black / Machined Mesh Riveted (5-Lug)
Ford Mustang / Chevrolet Corvette Beadlock Forged Wheels – Gloss Black / Machined Multi-Spoke (5-Lug)Get a quote for Dodge Dart wheels
Vehicles With the Same Hub as the Dodge Dart (5x110, 65.1 mm Bore)
In our database, 135 other vehicle entries from 18 makes use exactly the same 5x110 bolt pattern and 65.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x110 is used by 2.2% of the vehicle entries in our database (145 of 6,503); 96.6% of those also use a 65.1 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 18x7.5J | ET41 | 5.86 in (149 mm) | — | — |
| Flush | 18x8.5J | ET35 | 6.13 in (156 mm) | +7 mm | +19 mm |
| Maximum | 19x8.5J | ET32 | 6.01 in (153 mm) | +4 mm | +22 mm |
Hub-Centric Rings for a 65.1 mm Center Bore
A wheel with a center bore larger than 65.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 66.1 mm | 66.1 → 65.1 mm |
| 66.6 mm | 66.6 → 65.1 mm |
| 67.1 mm | 67.1 → 65.1 mm |
| 70.1 mm | 70.1 → 65.1 mm |
| 73.1 mm | 73.1 → 65.1 mm |
ANKUSI forged wheels are bored to exactly 65.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Dodge Dart take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x110 with a 65.1 mm center bore.
What is the factory wheel size of the Dodge Dart?
The factory size in our database is 18x7.5J ET41. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Dodge Dart flush?
We recommend 18x8.5J ET35 for a flush fit and 19x8.5J ET32 as the maximum. Check clearance before ordering.
