Custom Forged Wheels for the Chevrolet Captiva (5x115)
ANKUSI forges custom wheels for the Chevrolet Captiva, drilled 5x115 with a 70.3 mm hub-centric bore, so no hub rings or adapters are needed. The factory wheel size in our database is 18x7J ET45 (model year 2012).
Recommended wheel sizes for the Chevrolet Captiva
| Type | Size | Offset |
|---|---|---|
| Factory (OE) | 18x7J | ET45 |
| Flush | 19x8.5J | ET38 |
| Max | 20x9J | ET35 |
Flush and max sizes are recommendations from our fitment database; check real clearance on your car before ordering. See bolt pattern and center bore by year for the Chevrolet Captiva
Forged wheels that can be drilled for the Chevrolet Captiva
Ford Mustang / Corvette C7 Forged Wheels – Brushed Silver Multi-Spoke Beadlock (5-Lug)
Weld Racing-Style Gloss Black Milled 12-Spoke Beadlock Forged Drag Racing Wheels – Ford Mustang / Chevrolet Corvette Fitment (5-Lug)
Corvette OEM-Style Gunmetal 5 Y-Spoke Concave Forged Wheels – Chevrolet Corvette / Camaro Fitment (5-Lug)
Corvette OEM-Style Chrome Silver 10 Y-Spoke Forged Wheels – Chevrolet Corvette C8 / Camaro 5th Gen Fitment (5-Lug)

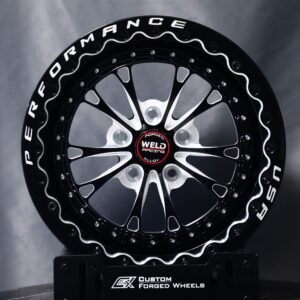

Weld Racing-Style Gloss Black Machined 12 Y-Spoke Ring Beadlock Forged Drag Racing Wheels – Ford Mustang / Chevrolet Corvette Fitment (5-Lug)
Belak-Style 2-Piece 5-Spoke Beadlock Mirror Milled Forged Drag Racing Wheels – Ford Mustang / Chevrolet Corvette Fitment (5-Lug)
Belak-Style Black / Machined 16-Spoke Beadlock Forged Drag Racing Wheels – Ford Mustang / Corvette C7 Fitment (5-Lug)
Chevrolet Camaro / Dodge Challenger Forged Wheels – Gloss Black 5-Spoke Polished Lip (5-Lug)Get a quote for Chevrolet Captiva wheels
Vehicles With the Same Hub as the Chevrolet Captiva (5x115, 70.3 mm Bore)
In our database, 106 other vehicle entries from 8 makes use exactly the same 5x115 bolt pattern and 70.3 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x115 is used by 3.2% of the vehicle entries in our database (209 of 6,503); 65.1% of those also use a 70.3 mm center bore.
Offset and Backspacing: Factory Wheel vs Options
Backspacing ≈ width/2 + ET/25.4 + 0.5 in. "Inward" means closer to the suspension; "outward" means closer to the fender lip.
| Setup | Size | ET | Backspacing | Inward vs OE | Outward vs OE |
|---|---|---|---|---|---|
| Factory (OE) | 18x7J | ET45 | 5.77 in (147 mm) | — | — |
| Flush | 19x8.5J | ET38 | 6.25 in (159 mm) | +12 mm | +26 mm |
| Maximum | 20x9J | ET35 | 6.38 in (162 mm) | +15 mm | +35 mm |
Hub-Centric Rings for a 70.3 mm Center Bore
A wheel with a center bore larger than 70.3 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 70.5 mm | 70.5 → 70.3 mm |
| 71.6 mm | 71.6 → 70.3 mm |
| 72.6 mm | 72.6 → 70.3 mm |
| 73.1 mm | 73.1 → 70.3 mm |
ANKUSI forged wheels are bored to exactly 70.3 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
How to order
- Send your model, year and the size you want on WhatsApp.
- Our team confirms bolt pattern, center bore and offset for your car.
- The set is forged and machined to order in about 25 days, then shipped.
FAQ
How long do custom forged wheels for the Chevrolet Captiva take?
About 25 days of production after the specs are confirmed. Every wheel is drilled 5x115 with a 70.3 mm center bore.
What is the factory wheel size of the Chevrolet Captiva?
The factory size in our database is 18x7J ET45. It can vary by trim, so check your exact car before ordering.
What wheel size fits the Chevrolet Captiva flush?
We recommend 19x8.5J ET38 for a flush fit and 20x9J ET35 as the maximum. Check clearance before ordering.
