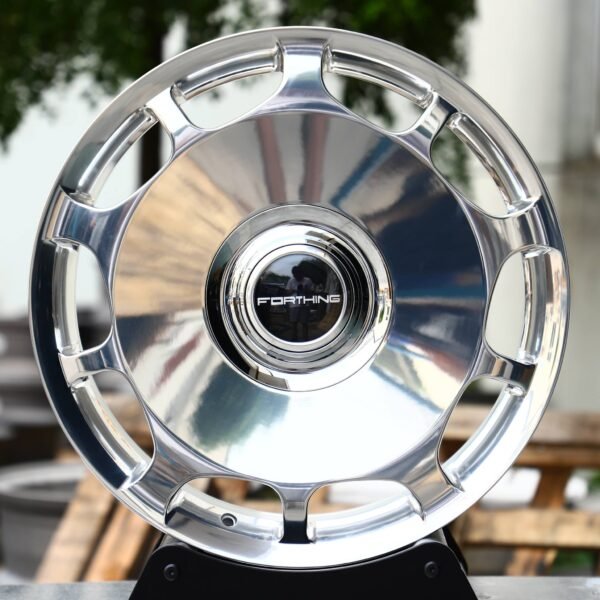

Forthing OEM-Style Bright Silver Full-Face Forged Wheels
Forthing T5 EVO Fitment · 5-Lug
Forthing Wheel Fitment Guide
9 fitment guides for Forthing, covering 2020 to 2025, spanning 5x108 and 5x114.3 bolt patterns. Browse the full list below, then open a model for bolt pattern, center bore, OE offset, flush and max wheel sizes, and offset/backspacing conversions.
Forthing Bolt Pattern & Center Bore Notes
Based on the 9 Forthing fitment guides we cover, we have documented 2 distinct bolt pattern / center bore combinations across different Forthing platforms and model years:
- 5x114.3 bolt pattern, 60.1mm center bore — 6 models we cover, spanning 2020–2025.
- 5x108 bolt pattern, 65.1mm center bore — 3 models we cover, spanning 2020–2025.
Do not mix platforms: a wheel forged for one Forthing bolt pattern / center bore combination will not hub-center correctly on a different one, even if the diameter looks right. Always confirm your exact model and year against the bolt pattern and center bore listed on that model page below before ordering — or send us your VIN or trim level and we will confirm it for you.
Offset and backspacing recommendations vary by trim even within the same bolt pattern, mainly due to differences in brake caliper size and suspension geometry between base and performance trims. Every ANKUSI wheel is forged to your exact target offset, so send us your Forthing model, year, and trim and we will confirm the correct spec before production — no guessing required.
How to check the bolt pattern on your Forthing
The most common Forthing fitment in our guide is 5x114.3 with a 60.1 mm center bore (6 of 9 model years we cover).
- Read the stamping on the back of an original wheel: size, offset (ET) and bolt pattern are usually cast into a spoke or the hub pad.
- No stamping? Measure center-to-center between two adjacent lug holes. For 5x114.3 that distance is 67.2 mm (PCD × sin(180° / 5)). A 2 mm difference already means a different bolt pattern.
- Match generation and year on the model pages below — the same nameplate can change bolt pattern or center bore between generations.
Changing width or offset? Check how far the wheel moves in or out with our offset & backspacing calculator.
5x114.3 / 60.1mm center bore
T5 (3)
Friday (2)
5x108 / 65.1mm center bore
Forged Wheels for Forthing
Forged-to-order wheel designs matched to Forthing bolt patterns. Every set is machined to your exact model, offset and center bore.
Vehicles Using 5x114.3 With a 60.1 mm Center Bore
In our database, 213 other vehicle entries from 18 makes use exactly the same 5x114.3 bolt pattern and 60.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x114.3 is used by 20.1% of the vehicle entries in our database (1,306 of 6,503); 16.6% of those also use a 60.1 mm center bore.
Hub-Centric Rings for a 60.1 mm Center Bore
A wheel with a center bore larger than 60.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 63.4 mm | 63.4 → 60.1 mm |
| 64.1 mm | 64.1 → 60.1 mm |
| 65.1 mm | 65.1 → 60.1 mm |
| 66.1 mm | 66.1 → 60.1 mm |
| 73.1 mm | 73.1 → 60.1 mm |
ANKUSI forged wheels are bored to exactly 60.1 mm for this vehicle, so no ring is needed.
Sources and Last Update
Bolt pattern and center bore were checked against at least two independent fitment references before publication.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
