Chevrolet Colorado Bolt Pattern, Center Bore & Wheel Offset (2004–2024)
Chevrolet Colorado wheel fitment: 6x120 bolt pattern, 66.9mm center bore (2015–2021); 6x139.7 bolt pattern, 78.1mm center bore (2023–2024). OE wheel sizes and
- 6x120bolt pattern (PCD), most common
- 66.9 mmcenter bore
- M12x1.5 Nutwheel bolt / nut
- 10 guidesmodel years 2004–2024
Bolt pattern by generation
- 6x120, 66.9 mm center bore — 2015–2021 (4 variants)
- 6x139.7, 78.1 mm center bore — 2023–2024 (3 variants)
- 6x139.7, 100.3 mm center bore — 2004–2012 (3 variants)
Chevrolet Colorado wheel specs by year and trim
| Year | Model / trim | Bolt pattern | Center bore | OE wheel |
|---|---|---|---|---|
| 2024 | Chevrolet Colorado ZR2 Bison | 6x139.7 | 78.1 mm | 17x8.0J |
| 2023 | Chevrolet Colorado | 6x139.7 | 78.1 mm | 18x8.0J |
| 2023 | Chevrolet Colorado ZR2 | 6x139.7 | 78.1 mm | 17x8.0J |
| 2021 | Chevrolet Colorado ZR2 | 6x120 | 66.9 mm | 17x8.0J |
| 2019 | Chevrolet Colorado ZR2 Bison | 6x120 | 66.9 mm | 17x8.0J |
| 2017 | Chevrolet Colorado ZR2 | 6x120 | 66.9 mm | 17x8.0J |
| 2015 | Chevrolet Colorado | 6x120 | 66.9 mm | 17x8.0J |
| 2012 | Chevrolet Colorado | 6x139.7 | 100.3 mm | 16x7.0J |
| 2004 | Chevrolet Colorado Extended Cab | 6x139.7 | 100.3 mm | 15x6.5J |
| 2004 | Chevrolet Colorado Regular Cab | 6x139.7 | 100.3 mm | 15x6.5J |

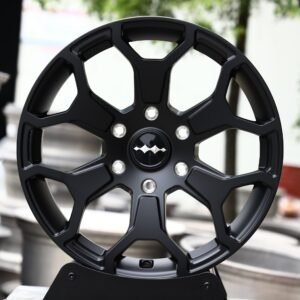

Forged wheels for the Chevrolet Colorado (6x120)
Get a quote for Chevrolet Colorado wheels
FAQ
What is the bolt pattern on a Chevrolet Colorado?
The Chevrolet Colorado uses a 6x120 bolt pattern on most variants we cover with a 66.9mm center bore. Other generations use 6x139.7 / 78.1mm (2023–2024), 6x139.7 / 100.3mm (2004–2012). Always check the exact year and trim before ordering.
What is the Chevrolet Colorado center bore?
The hub-centric center bore is 66.9 mm on the most common generation; see the table for variants. Aftermarket wheels should match this bore or use hub-centric rings so the hub, not the bolts, carries the load.
Do all Chevrolet Colorado years share the same wheel fitment?
No. The bolt pattern or center bore changed between generations, so wheels are not interchangeable across all years. Use the year-by-year table on this page to pick the right specification.
Which forged wheels fit the Chevrolet Colorado?
Any wheel drilled 6x120 with a 66.9mm hub bore in the offset range shown on the model guide. ANKUSI forges wheels to order for this exact specification, in 14–24 inch diameters, so no adapters or hub rings are needed.
