2012 Jeep Wrangler Call of Duty MW3 Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Jeep Wrangler Call of Duty MW3 wheels? This page gives the 2012 Jeep Wrangler Call of Duty MW3 bolt pattern (5x127), centre bore, factory rim size and the offset range for aftermarket and forged Jeep Wrangler Call of Duty MW3 rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2012 Jeep Wrangler Call of Duty MW3 uses a 5x127 bolt pattern with a 71.5 mm centre bore. Factory wheels: 17x7.5J at ET44. For aftermarket wheels, 17x9J ET0 sits flush and 20x10J ET-12 is the most aggressive fit.
Forged wheels for the 2012 Jeep Wrangler Call of Duty MW3 — drilled 5x127 with a 71.5 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Get a quote for this car
Jeep Wrangler Call of Duty MW3 (2012): 5x127 bolt pattern, 71.5mm center bore. Factory wheels: 17x7.5J. Reference fitment ranges.
Bolt Pattern5x127
Wheel Bolt/Nut1/2\"x20 Nut
Center Bore71.5mm
Wheel Load Rating900–1250 kg/wheel (SUV segment reference)
Year2012
CategorySUV
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 17x7.5J at ET44 |
| Flush Fitment | 17x9J at ET0 offset |
| Maximum Aggressive | 20x10J at ET-12 offset |
Forged wheels for the Jeep Wrangler Call of Duty MW3Machined to the 5x127 bolt pattern and 71.5 mm bore · 14–24 inch · offset calculated for your car · 3D drawing before production
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
SUVs carry more curb weight higher off the ground, so wheel strength and rotational mass both matter more than on a comparable sedan — a heavier wheel amplifies body roll and slows steering response exactly where the platform is already working hardest. Forging keeps the wheel light without giving up the load rating the factory suspension geometry was tuned around.
The Jeep Wrangler Call of Duty MW3 runs a 5x127 bolt pattern, 71.5mm center bore, and a 17x7.5J at ET44, front and rear, wheel from the factory. Our Flush Fitment reference is 17x9J ET0, which tucks the tire under the fender lip on a stock-height Jeep Wrangler Call of Duty MW3. Our Maximum Aggressive reference is 20x10J ET-12 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Jeep Wrangler Call of Duty MW3 OE Wheel Specs
The 2012 Jeep Wrangler Call of Duty MW3 (SUV) uses a 5x127 bolt pattern with a 71.5mm center bore. Factory wheels are 17x7.5J at ET44.
Why the factory spec works for most owners:
- Supports the vehicle's curb weight and load capacity
- Preserves ground clearance for everyday and light off-road use
- Balances ride comfort with cargo and passenger stability
- Maintains clearance for the factory suspension travel and brake package
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Jeep Wrangler Call of Duty MW3 (2012) we drill the 5x127 pattern and cut the centre bore to 71.5mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Flush Fitment
For a flush look with minimal rubbing, 17x9J ET0 is the recommended starting point on a stock or mildly lowered Jeep Wrangler Call of Duty MW3.
Maximum Aggressive Fitment
20x10J ET-12 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
Real-World Fitment Notes
Chassis: Lift kit. Tires: 255/75 R17.
5-Tier Configuration Options
A Factory-Style 17x7.5J ET44
Recommended setup: 17x7.5J ET44 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
B Comfortable Upgrade 17x8.5J ET22
Recommended setup: 17x8.5J ET22 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
C Balanced / Flush Fit 17x9.0J ET0
Recommended setup: 17x9.0J ET0 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
D Aggressive 19x9.5J ET-6
Recommended setup: 19x9.5J ET-6 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
E Max Aggressive 20x10.0J ET-12
Recommended setup: 20x10.0J ET-12 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
Performance Comparison Matrix
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | 17x7.5J ET44 | 17x8.5J ET22 | 17x9.0J ET0 | 19x9.5J ET-6 | 20x10.0J ET-12 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
Real-World Reference Cases
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: 17x7.5J ET44
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: 17x9.0J ET0
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: 20x10.0J ET-12
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Decision Guide
1
What's your primary use? Daily commuting → Tier A/B. Weekend street driving → Tier B/C. Show or occasional track use → Tier D/E.
2
What's your budget? Under $800 → Tier A. $800-3,400 → Tier B/C. $3,400+ → Tier D/E.
3
How much does fuel economy matter? Very important → Tier A. Somewhat important → Tier B/C. Not a priority → Tier D/E.
4
Still unsure? Tier C (Balanced / Flush Fit) is the default choice for most Jeep Wrangler Call of Duty MW3 owners.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: 17x7.5J ET44 → ~5.98″ backspacing
- Flush: 17x9J ET0 → ~5.0″ backspacing
- Max: 20x10J ET-12 → ~5.03″ backspacing
A Note on Clearance
Final clearance depends on the exact tire model, suspension height, brake package, alignment and vehicle tolerances. A physical test fit is recommended before production.
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Jeep spec, or want a wheel built to a custom offset for your Jeep Wrangler Call of Duty MW3? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Custom Forged Wheels for the Jeep Wrangler Call of Duty MW3 (2012)
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x127 pattern and the 71.5mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose — most Jeep orders on this platform land somewhere between the 17x9J ET0 flush setup and the 20x10J ET-12 aggressive setup referenced above.
Designs we already tool for the 5x127 pattern — each one is re-cut to your sizes and offsets:
Jeep OEM-Style Matte Gunmetal Steelie Dish Forged Wheels – Jeep Wrangler / Grand Cherokee Fitment (5-Lug)
Jeep Wrangler / Land Cruiser Beadlock Off-Road Forged Wheels – Brushed Silver Mesh (5-Lug)
Jeep Wrangler / Land Rover Defender Off-Road Forged Wheels – Gunmetal 5-Spoke Machined Lip (5-Lug)
Jeep Wrangler / Land Cruiser Beadlock Off-Road Forged Wheels – Matte Black Steelie-Style (5-Lug)Frequently Asked Questions
What bolt pattern (PCD) does the Jeep Wrangler Call of Duty MW3 use?
The 2012 Jeep Wrangler Call of Duty MW3 uses a 5x127 bolt pattern.
How many lug bolts does the Jeep Wrangler Call of Duty MW3 use?
The Jeep Wrangler Call of Duty MW3 uses a 5-lug bolt pattern (5x127), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Jeep Wrangler Call of Duty MW3?
The Jeep Wrangler Call of Duty MW3's center bore is 71.5mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Jeep Wrangler Call of Duty MW3?
Factory wheels on the Jeep Wrangler Call of Duty MW3 are 17x7.5J at ET44.
What is the biggest wheel size I can fit on my Jeep Wrangler Call of Duty MW3 without rubbing?
The most aggressive fitment we recommend without fender work is 20x10J at ET-12 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Jeep Wrangler Call of Duty MW3?
For a flush look with minimal to no rubbing, we recommend 17x9J at ET0 offset as a starting point on a stock or mildly lowered Jeep Wrangler Call of Duty MW3.
Do I need wheel spacers for my Jeep Wrangler Call of Duty MW3?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Jeep Wrangler Call of Duty MW3?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 5" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Jeep Wrangler Call of Duty MW3?
The Jeep Wrangler Call of Duty MW3 runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Vehicles With the Same Hub as the Jeep Wrangler Call of Duty MW3 (5x127, 71.5 mm Bore)
In our database, 64 other vehicle entries from 5 makes use exactly the same 5x127 bolt pattern and 71.5 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x127 is used by 1.3% of the vehicle pages in our English fitment guide (82 of 6,503); 79.3% of those also use a 71.5 mm center bore.
Hub-Centric Rings for a 71.5 mm Center Bore
A wheel with a center bore larger than 71.5 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 71.6 mm | 71.6 → 71.5 mm |
| 72.6 mm | 72.6 → 71.5 mm |
| 73.1 mm | 73.1 → 71.5 mm |
| 74.1 mm | 74.1 → 71.5 mm |
ANKUSI forged wheels are bored to exactly 71.5 mm for this vehicle, so no ring is needed.
Sources and Last Update
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 17x7.5 wheels · 17 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Forged Wheel Designs for the Jeep Wrangler Call of Duty MW3
Every design below is forged to order, so it can be machined to the Jeep Wrangler Call of Duty MW3's 5x127 bolt pattern and 71.5 mm center bore, with the width and offset calculated for your setup.
Jeep OEM-Style Gloss Black 5 Y-Spoke Deep Lip Off-Road Forged Wheels
Jeep Grand Cherokee / Wrangler JL Fitment · 5-Lug
Jeep Wrangler / Grand Cherokee Off-Road Forged Wheels
Matte Black Multi-Spoke Deep Lip · 5-Lug
Jeep Wrangler / Land Cruiser Forged Wheels
Polished H-Type Spoke Directional Milled · 5-Lug
Bradley-Style Bronze 5-Spoke Off-Road Forged Wheels
Jeep Wrangler / Land Rover Defender Fitment · 5-Lug
Fuel Offroad Matte Black Full-Face Machined Face Forged Wheels - Jeep Wrangler / Toyota Land Cruiser Fitment (5-Lug)
Fuel-Style forged wheels featuring the offroad matte black full-face machined face design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

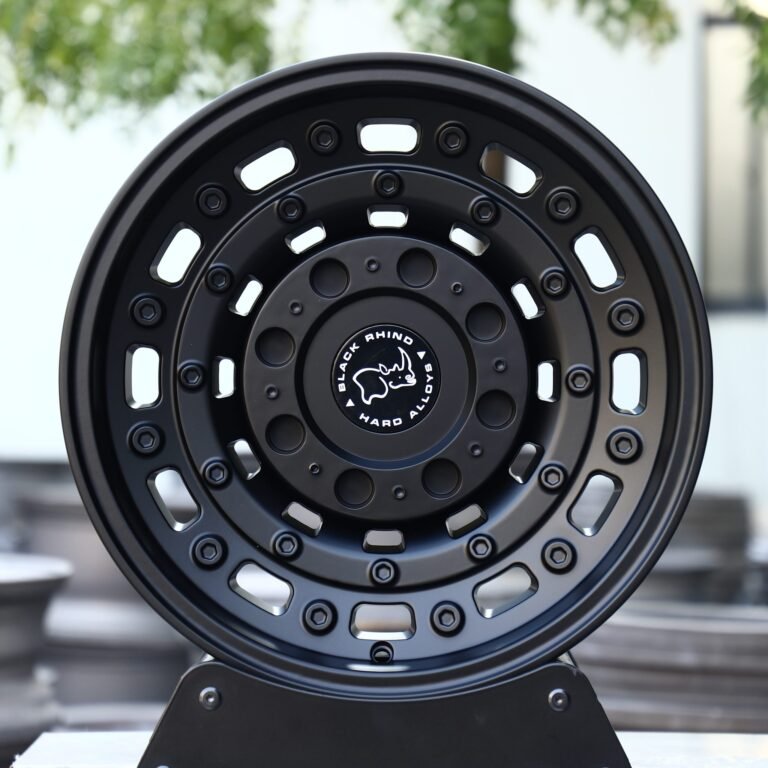

Black Rhino-Style Rhino Matte Black Semi-Full-Face Exposed Bolt Detail Forged Wheels
