Fitting Audi RS5 Sedan wheels? This page gives the 2027 Audi RS5 Sedan bolt pattern (5x112), centre bore, factory rim size and the offset range for aftermarket and forged Audi RS5 Sedan rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2027 Audi RS5 Sedan uses a 5x112 bolt pattern with a 66.5 mm centre bore and M14x1.5 lug bolts. Factory wheels: 20x9.5J, front and rear. For aftermarket wheels, 21x10.0J ET20 sits flush and 21x10.5J ET15 is the most aggressive fit.
Forged wheels for the 2027 Audi RS5 Sedan — drilled 5x112 with a 66.5 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in about 25 days.
Audi RS5 Sedan (2027): 5x112 bolt pattern, 66.5mm center bore. Factory wheels: 20x9.5J F/R. Reference fitment ranges.
✓ Data check: the bolt pattern and center bore on this page match an independent fitment reference. Last reviewed September 18, 2026. How we verify
Built to order by ANKUSI — IATF 16949 & ISO 9001 certified forged wheel manufacturer, TÜV/SFI/VIA compliant. See our factory & certifications →
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 20x9.5J F/R |
| Flush Fitment | 21x10.0J at ET20 offset |
| Maximum Aggressive | 21x10.5J at ET15 offset |
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
Most of the engineering value in a forged wheel over a cast one shows up in rotational mass, not outright strength — both can meet the same load rating, but the forged piece gets there lighter. On a sedan platform tuned for everyday balance, that weight saving is felt directly in steering response and ride quality.
The Audi RS5 Sedan runs a 5x112 bolt pattern, 66.5mm center bore, and a 20x9.5J, front and rear, wheel from the factory. Our Flush Fitment reference is 21x10.0J ET20, which tucks the tire under the fender lip on a stock-height Audi RS5 Sedan. Our Maximum Aggressive reference is 21x10.5J ET15 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
The 2027 Audi RS5 Sedan (Sedan) uses a 5x112 bolt pattern with a 66.5mm center bore. Factory wheels are 20x9.5J F/R.
Why the factory spec works for most owners:
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Audi RS5 Sedan (2027) we drill the 5x112 pattern and cut the centre bore to 66.5mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
For a flush look with minimal rubbing, F/R 21x10.0J ET20 is the recommended starting point on a stock or mildly lowered Audi RS5 Sedan.
F/R 21x10.5J ET15 is a more aggressive reference setup. Beyond this, expect rubbing under compression without fender rolling or camber correction.
Recommended setup: 20x9.5J ET25 | Economy impact: Negligible | Best for: Daily commuting, family use
Appearance: 7/10 | Comfort: 9.5/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,200-1,500 (wheels + tires + install)
Recommended setup: 21x10.0J ET23 | Economy impact: -2 to -4% | Best for: Daily / street
Appearance: 8/10 | Comfort: 9/10 | Install difficulty: ★☆☆☆☆
Estimated cost: $1,950-2,550 (wheels + tires + install)
Recommended setup: 21x10.0J ET20 | Economy impact: -4 to -6% | Best for: Street
Appearance: 8.5/10 | Comfort: 8/10 | Install difficulty: ★★☆☆☆
Estimated cost: $2,600-3,400 (wheels + tires + install)
Recommended setup: 21x10.5J ET18 | Economy impact: -6 to -9% | Best for: Show / occasional track
Appearance: 9/10 | Comfort: 6.5/10 | Install difficulty: ★★★☆☆
Estimated cost: $3,900-5,000 (wheels + tires + install)
Recommended setup: 21x10.5J ET15 | Economy impact: -8 to -12% | Best for: Show only
Appearance: 9.5/10 | Comfort: 4/10 | Install difficulty: ★★★★☆
Estimated cost: $4,800-6,200+ (wheels + tires + install)
| Metric | Tier A | Tier B | Tier C | Tier D | Tier E |
|---|---|---|---|---|---|
| Wheel Spec | 20x9.5J ET25 | 21x10.0J ET23 | 21x10.0J ET20 | 21x10.5J ET18 | 21x10.5J ET15 |
| Economy Impact | Negligible | -2 to -4% | -4 to -6% | -6 to -9% | -8 to -12% |
| Appearance | 7/10 | 8/10 | 8.5/10 | 9/10 | 9.5/10 |
| Comfort | 9.5/10 | 9/10 | 8/10 | 6.5/10 | 4/10 |
| Install Difficulty | ★☆☆☆☆ | ★☆☆☆☆ | ★★☆☆☆ | ★★★☆☆ | ★★★★☆ |
| Cost Range | $1,200-1,500 | $1,950-2,550 | $2,600-3,400 | $3,900-5,000 | $4,800-6,200+ |
| Best For | Daily commuting, family use | Daily / street | Street | Show / occasional track | Show only |
The examples below are compiled from typical ANKUSI customer configurations and are labeled as reference cases, not individually verified real-world builds.
Case 1: Daily Driver (Factory-Style)
Profile: Everyday driving, prioritizes comfort and low running cost.
Setup: 20x9.5J ET25
Cost: ~$620
Outcome: Minimal visual change, ride and fuel economy essentially unaffected.
Case 2: Balanced Enthusiast (Balanced / Flush Fit)
Profile: Wants a sportier stance without sacrificing daily usability.
Setup: 21x10.0J ET20
Cost: ~$3,000
Outcome: Noticeable visual upgrade, fuel economy drop within the expected range.
Case 3: Show Build (Max Aggressive)
Profile: Built primarily for shows or occasional track/show use.
Setup: 21x10.5J ET15
Cost: ~$5,500
Outcome: Maximum visual impact; daily comfort and fuel economy are heavily compromised, physical test fit required before production.
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Audi spec, or want a wheel built to a custom offset for your Audi RS5 Sedan? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Everything above is reference data. If you want wheels actually built to it, that is what ANKUSI does: we are a forged wheel factory in Guangzhou, China, IATF 16949 and ISO 9001 certified, forging on our own 10,000-ton press and producing over 120,000 wheels a year. Forging blank, CNC machining, finishing, coating and inspection all happen in the same building — nothing is subcontracted and nothing is relabelled from another manufacturer.
Every set is cut to order, so the 5x112 pattern and the 66.5mm centre bore are machined for this car specifically rather than shimmed with adaptor rings. Diameter, width, offset, concavity, monoblock or multi-piece construction and the finish are all yours to choose — most Audi orders on this platform land somewhere between the 21x10.0J ET20 flush setup and the 21x10.5J ET15 aggressive setup referenced above.
Designs we already tool for the 5x112 pattern — each one is re-cut to your sizes and offsets:
Audi A6 / BMW 5 Series Forged Wheels – Polished Silver 5 Y-Spoke
Work-Style Gloss Black 2-Piece 5-Spoke Polished Deep Lip Forged Wheels – Audi A6 / 5 Series Fitment (5-Lug)
BBS-Style Gunmetal 5 Split-Spoke Forged Wheels – BMW 3 Series F30 / Audi A4 Fitment (5-Lug)
Audi A6 / BMW 5 Series Forged Wheels – Hyper Silver 10 Y-SpokeIn our database, 167 other vehicle entries from 6 makes use exactly the same 5x112 bolt pattern and 66.5 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x112 is used by 21.6% of the vehicle pages in our English fitment guide (1,407 of 6,503); 11.9% of those also use a 66.5 mm center bore.
A wheel with a center bore larger than 66.5 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 66.6 mm | 66.6 → 66.5 mm |
| 67.1 mm | 67.1 → 66.5 mm |
| 70.1 mm | 70.1 → 66.5 mm |
| 70.5 mm | 70.5 → 66.5 mm |
| 73.1 mm | 73.1 → 66.5 mm |
ANKUSI forged wheels are bored to exactly 66.5 mm for this vehicle, so no ring is needed.
Data checked against: avtoreference.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 20x9.5 wheels · 20 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Every design below is forged to order, so it can be machined to the Audi RS5 Sedan's 5x112 bolt pattern and 66.5 mm center bore, with the width and offset calculated for your setup.
Wheelforce-Style forged wheels featuring the polished transparent frozen gold 10-spoke design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.
Matte Silver Full-Face
Wheelforce-Style forged wheels featuring the metallic gray 10-spoke design, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are machined for your exact vehicle — this listing covers 5-lug applications.

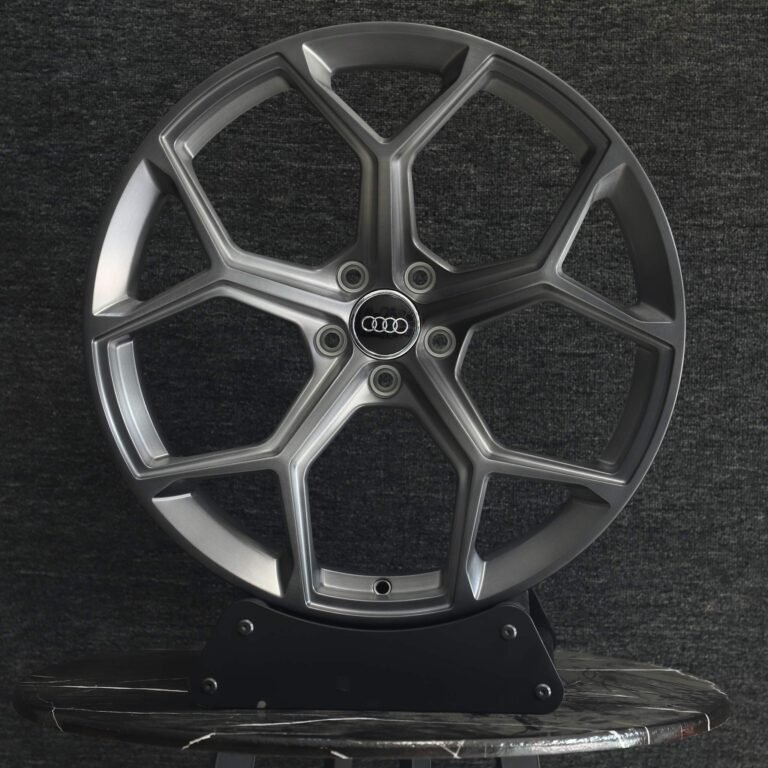

Audi A4 B9 / A6 C8 Fitment · 5-Lug
Silver Slotted Dish · 5-Lug
Audi A5 / Volkswagen Golf Fitment · 5-Lug
Audi A4 / BMW 3 Series Fitment · 5-Lug
Gloss Black Mesh 2-Piece Polished Deep Lip · 5-Lug
Thread & Fastener: M14x1.5, ball-seat lug bolt (13mm radius).
Factory Torque Spec: 120 Nm (89 ft-lb). Shared VW/Audi Group ball-seat bolt spec used across most 5x112 Audi models.
TPMS: TPMS (Tire Pressure Monitoring System) has been federally mandated on all new light vehicles sold in the US since the 2008 model year. If your wheels use OE-style sensors, have them transferred or cloned to the new wheels at installation.
Tire Pressure: Always set tire pressure to the value on your vehicle's tire placard (driver's doorjamb or glovebox), not the max PSI printed on the tire sidewall — this is trim- and tire-size-specific and stays the same reference point when you switch to a different wheel and tire combination.
Reference data compiled from published OEM service specifications and cross-checked against independent repair sources; always confirm against your owner's manual or door-jamb placard before installation.
Bolt pattern and center bore on this page were cross-checked against at least two independent sources before publication. Last reviewed 2026-09-18. Spotted an error? Email info@ankusi.com and we will verify and correct it.
