2026 Audi Q3 SUV (UK) Wheels & Rims: Bolt Pattern, Offset & Sizes
Fitting Audi Q3 SUV (UK) wheels? This page gives the 2026 Audi Q3 SUV (UK) bolt pattern (5x112), centre bore, factory rim size and the offset range for aftermarket and forged Audi Q3 SUV (UK) rims: the same spec sheet ANKUSI uses when machining forged wheels for this car.
Quick answer: The 2026 Audi Q3 SUV (UK) uses a 5x112 bolt pattern with a 57.1 mm centre bore and M14x1.5 lug bolts. Factory wheels: 19x8.5J, front and rear. For aftermarket wheels, 20x9.0J ET35 sits flush and 20x9.5J ET30 is the most aggressive fit.
Forged wheels for the 2026 Audi Q3 SUV (UK) — drilled 5x112 with a 57.1 mm centre bore, built to the offset you choose. From $220 per wheel, made to order in 20–25 days.
Get a quote for this car
Audi Q3 SUV (UK) (2026): 5x112 bolt pattern, 57.1mm center bore. Factory wheels: 19x8.5J F/R. Reference fitment ranges.
Bolt Pattern5x112
Wheel Bolt/NutM14x1.5 Bolt
Center Bore57.1mm
Wheel Load Rating900–1250 kg/wheel (SUV segment reference)
Year2026
CategorySUV
Data check: the bolt pattern and center bore on this page have not yet been confirmed by a second independent source. Measure your hub or ask us before ordering. How we verify
Wheel Size & Offset at a Glance
| Configuration | Wheel Size & Offset |
|---|---|
| Factory (OE) | 19x8.5J F/R |
| Flush Fitment | 20x9.0J at ET35 offset |
| Maximum Aggressive | 20x9.5J at ET30 offset |
Forged Wheel Designs for the Audi Q3 SUV (UK)
Every design below is forged to order, so it can be machined to the Audi Q3 SUV (UK)'s 5x112 bolt pattern and 57.1 mm center bore, with the width and offset calculated for your setup.
BBS CI-R-Style Silver Forged Wheels
Replica · Silver
Audi OEM-Style Bright Silver 5-Spoke Rotor Machined Forged Wheels
Monoblock · Bright Silver
Audi OEM-Style Metallic Gray Custom Forged Wheels
Replica · Metallic Gray

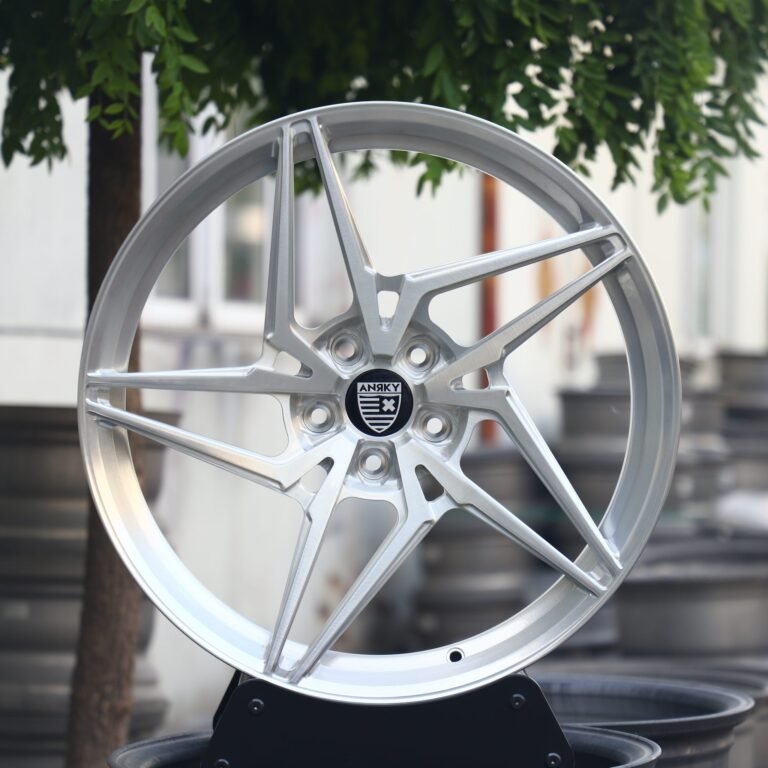

Anrky-Style Brushed Silver Directional Milled Forged Wheels
Monoblock · Brushed Silver
SSR Polished Silver 10 Y-Spoke Deep Lip Forged Wheels
Deep Dish · Polished Silver
Nova Gloss Black / Machined Multi-Spoke Polished Lip 2-Piece Forged Wheels
2-Piece · Gloss Black / Machined
Gold Cross-Spoke Mesh 2-Piece Polished Lip Forged Wheels
2-Piece · Gold / Polished Lip
How to Read Wheel Offset & Measurements
Use these two references before ordering: the left diagram shows where each spec (PCD, center bore, offset, width and diameter) is measured on the wheel; the right diagram shows how positive, zero and negative offset shift the wheel face relative to the hub centerline.
ANKUSI Engineering Expert Advice
SUVs carry more curb weight higher off the ground, so wheel strength and rotational mass both matter more than on a comparable sedan — a heavier wheel amplifies body roll and slows steering response exactly where the platform is already working hardest. Forging keeps the wheel light without giving up the load rating the factory suspension geometry was tuned around.
The Audi Q3 SUV (UK) runs a 5x112 bolt pattern, 57.1mm center bore, and a 19x8.5J, front and rear, wheel from the factory. Our Flush Fitment reference is 20x9.0J ET35, which tucks the tire under the fender lip on a stock-height Audi Q3 SUV (UK). Our Maximum Aggressive reference is 20x9.5J ET30 — beyond that offset, expect rubbing against the inner fender liner under compression without further trimming.
Audi Q3 SUV (UK) OE Wheel Specs
The 2026 Audi Q3 SUV (UK) (SUV) uses a 5x112 bolt pattern with a 57.1mm center bore. Factory wheels are 19x8.5J F/R.
Why the factory spec works for most owners:
- Supports the vehicle's curb weight and load capacity
- Preserves ground clearance for everyday and light off-road use
- Balances ride comfort with cargo and passenger stability
- Maintains clearance for the factory suspension travel and brake package
ANKUSI builds these wheels — we are the forging factory, not a reseller. For the Audi Q3 SUV (UK) (2026) we drill the 5x112 pattern and cut the centre bore to 57.1mm on our own CNC line, so the wheel hub-centres on the car with no spacer rings, in whatever diameter, width and offset you specify.
Converting these ET figures to backspacing? Use the wheel offset and backspacing calculator.
The figures on this page are part of our open wheel fitment dataset — 10,093 vehicles, free to download, CC BY 4.0.
Offset & Backspacing Reference
Backspacing is calculated as wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance):
- OE: 19x8.5J ET43 → ~6.44″ backspacing
- Flush: 20x9.0J ET35 → ~6.38″ backspacing
- Max: 20x9.5J ET30 → ~6.43″ backspacing
Want to check a different width or offset before you order? Use our Offset & Backspacing Calculator to solve the numbers yourself, or looking for your exact Audi spec, or want a wheel built to a custom offset for your Audi Q3 SUV (UK)? Contact ANKUSI with your bolt pattern and offset target and we will confirm the correct forged wheel spec for your build.
Vehicles With the Same Hub as the Audi Q3 SUV (UK) (5x112, 57.1 mm Bore)
In our database, 407 other vehicle entries from 18 makes use exactly the same 5x112 bolt pattern and 57.1 mm center bore. Factory wheels from these cars bolt on and center on the hub without rings; offset and width still have to be checked.
5x112 is used by 21.6% of the vehicle pages in our English fitment guide (1,407 of 6,503); 29.0% of those also use a 57.1 mm center bore.
Hub-Centric Rings for a 57.1 mm Center Bore
A wheel with a center bore larger than 57.1 mm needs a hub-centric ring. The most common combinations:
| Wheel bore | Ring size |
|---|---|
| 60.1 mm | 60.1 → 57.1 mm |
| 63.4 mm | 63.4 → 57.1 mm |
| 64.1 mm | 64.1 → 57.1 mm |
| 65.1 mm | 65.1 → 57.1 mm |
| 73.1 mm | 73.1 → 57.1 mm |
ANKUSI forged wheels are bored to exactly 57.1 mm for this vehicle, so no ring is needed.
Frequently Asked Questions
What bolt pattern (PCD) does the Audi Q3 SUV (UK) use?
The 2026 Audi Q3 SUV (UK) uses a 5x112 bolt pattern.
How many lug bolts does the Audi Q3 SUV (UK) use?
The Audi Q3 SUV (UK) uses a 5-lug bolt pattern (5x112), so you need a 5-lug forged wheel to bolt straight on.
What is the center bore size on the Audi Q3 SUV (UK)?
The Audi Q3 SUV (UK)'s center bore is 57.1mm. If an aftermarket wheel has a larger center bore than this, hub-centric rings are recommended so the wheel centers on the hub itself rather than relying on the lug bolts alone.
What size are the factory (stock) wheels on the Audi Q3 SUV (UK)?
Factory wheels on the Audi Q3 SUV (UK) are 19x8.5J F/R.
What is the biggest wheel size I can fit on my Audi Q3 SUV (UK) without rubbing?
The most aggressive fitment we recommend without fender work is 20x9.5J at ET30 offset. Going beyond this typically causes rubbing under compression unless you roll the fenders or add camber correction.
What does a flush wheel fitment look like on the Audi Q3 SUV (UK)?
For a flush look with minimal to no rubbing, we recommend 20x9.0J at ET35 offset as a starting point on a stock or mildly lowered Audi Q3 SUV (UK).
Do I need wheel spacers for my Audi Q3 SUV (UK)?
No. ANKUSI forges each wheel to your exact target offset, including the flush or max specs above, so you get the correct fitment without stacking spacers. Spacers are typically only used to push out an existing OE-offset wheel without replacing it, which isn't necessary when you're ordering a custom-offset forged wheel.
How do I calculate wheel backspacing for my Audi Q3 SUV (UK)?
Backspacing (in inches) = wheel width (in) ÷ 2 + offset (mm) ÷ 25.4 + 0.5 (flange allowance). For example, the flush spec above works out to roughly 6.38" of backspacing.
What's the difference between wheel offset and backspacing?
Offset is the distance in millimeters from the wheel's true centerline to its mounting face (positive offset pulls the wheel in, negative pushes it out). Backspacing is the distance in inches from the mounting face to the back edge of the wheel barrel. They describe the same fitment from two different reference points, which is why ANKUSI lists both above — some shops and tuning guides quote offset, others quote backspacing.
Can I run staggered wheels (different sizes front and rear) on my Audi Q3 SUV (UK)?
The Audi Q3 SUV (UK) runs the same wheel size front and rear from the factory, so staggered fitment is not required. ANKUSI can still forge a staggered set (wider rear) on request if you want a more aggressive stance.
Wheel Installation Reference: Torque, Thread & TPMS
Thread & Fastener: M14x1.5, ball-seat lug bolt (13mm radius).
Factory Torque Spec: 120 Nm (89 ft-lb). Shared VW/Audi Group ball-seat bolt spec used across most 5x112 Audi models.
TPMS: TPMS (Tire Pressure Monitoring System) has been federally mandated on all new light vehicles sold in the US since the 2008 model year. If your wheels use OE-style sensors, have them transferred or cloned to the new wheels at installation.
Tire Pressure: Always set tire pressure to the value on your vehicle's tire placard (driver's doorjamb or glovebox), not the max PSI printed on the tire sidewall — this is trim- and tire-size-specific and stays the same reference point when you switch to a different wheel and tire combination.
Reference data compiled from published OEM service specifications and cross-checked against independent repair sources; always confirm against your owner's manual or door-jamb placard before installation.
Sources and Last Update
Data checked against: avtoreference.com, tirewheelguide.com.
This record is part of the open ANKUSI Wheel Fitment Dataset (DOI 10.5281/zenodo.23241521, CC BY 4.0).
Other cars on the same factory size: 19x8.5 wheels · 19 inch wheels.
Compiled by the ANKUSI Wheels engineering team, an IATF 16949 and ISO 9001 certified forged wheel factory in Guangzhou.
Bolt pattern and center bore on this page come from published fitment references and are still awaiting a second independent check. Last reviewed 2026-09-18. Spotted an error? Email info@ankusi.com and we will verify and correct it.
