17×9 Rims: Fitment Guide and Forged Options

A 17×9 rim is one of the few sizes that shows up across completely unrelated vehicles — a lifted Jeep Wrangler, a 6-lug F-150, an 8-lug Silverado HD, even a widebody sports car — and the reason it works everywhere is the same reason it trips people up: the diameter never changes, but the bolt pattern, hub bore and offset behind it are different on almost every one of those trucks and cars. Before you order a set, here is what actually decides whether a 17×9 fits your vehicle, and how we forge to your exact numbers instead of a generic bore.

Why 17×9 is the go-to size for lifted and widened builds

Nine inches of width at a 17-inch diameter is a sweet spot for two different jobs. On a trail truck it is wide enough to support a 35-inch tire without the sidewall doing all the work, while still leaving enough sidewall height on the tire itself to air down and absorb rock hits — which is why 17×9 shows up constantly on lifted Jeep Wrangler and full-size truck builds. On a street or track car, 17×9 is often the widest reasonable size that still clears factory brakes on a car that did not come with big rotors, so it becomes the go-to for a widebody or flush stance without a brake upgrade. Two very different goals, one shared diameter and width.

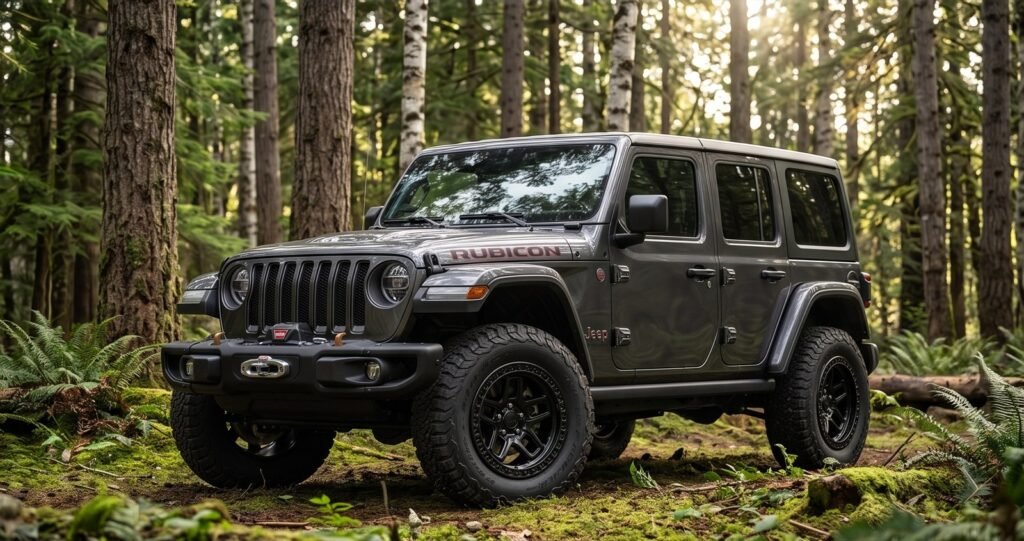

Jeep Wrangler: the most common 17×9 application

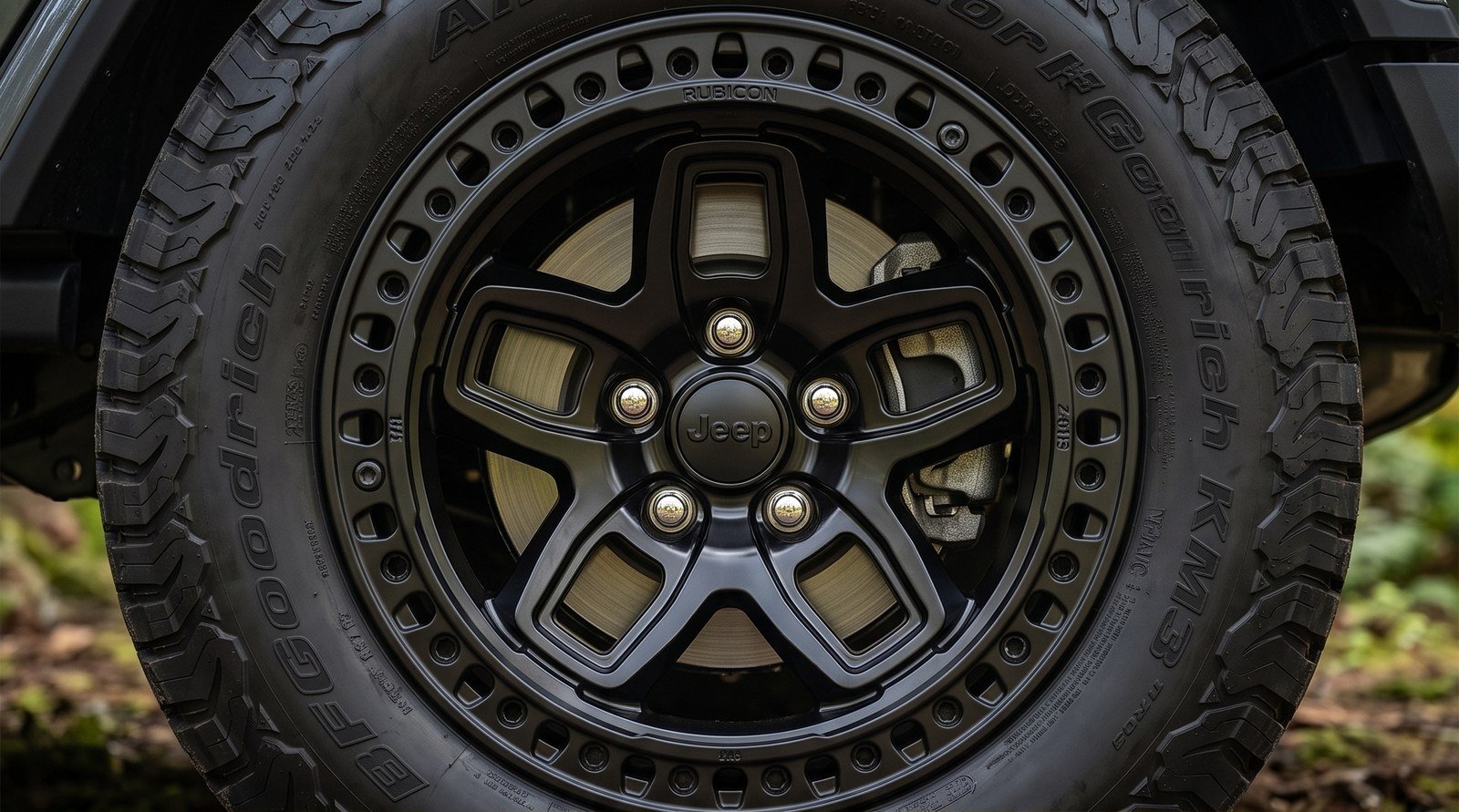

The JK (2007–2018) and JL (2018–present) Wrangler both run a 5×127 mm bolt pattern (5×5 inches) on a 71.5 mm center bore, and this is where most 17×9 rims sold in the aftermarket actually end up. Factory Wranglers ship on a modest 17×7.5 at +44 to +55 mm offset, with Rubicon trims stepping up to 17×8 or 17×8.5 in some model years. Once you move to a 17×9 for a 35-inch or larger tire, most owners drop the offset down toward 0 mm or slightly negative to push the wheel out far enough to clear the wider tire without the sidewall rubbing the fender flare at full lock. That is a meaningfully different offset than what shipped from the factory, which is exactly why bolting on any 17×9 you find online and hoping it clears is a bad plan — the offset has to be calculated against your specific lift height, tire size and steering geometry.

17×9 on 6-lug and 8-lug trucks

Full-size trucks are the other major home for this size. On the modern F-150, Expedition and Navigator (6×135 bolt pattern, 87.1 mm hub bore — we cover this platform in detail in our 6×135 rims fitment guide), a 17×9 is a common off-road size that leaves room for a tall all-terrain without the wheel poking past the fender. Heavy-duty trucks are a different story: Chevrolet Silverado 2500HD/3500HD and GMC Sierra 2500HD/3500HD (2011 and up) run an 8×180 pattern, while Ford Super Duty trucks run 8×170 — both are common 17×9 candidates for a work truck that still wants a wider stance, but the hub bore and lug thread on 8-lug HD trucks vary enough by model year that we always confirm the exact numbers against your VIN rather than assume. If you drive an 8-lug truck, tell us the year and trim when you request a quote and we will verify the bore before anything is cut.

17×9 on 5×120 and 5×100 platforms

Away from trucks, 17×9 also turns up on cars running the 5×120 pattern (modern GM performance cars, some BMWs) and the 5×100 pattern common on Subaru and VW/Audi platforms. On these applications 17×9 is usually a track-day or widebody choice rather than an off-road one — the extra width supports a wider, stickier tire for grip, and because we forge to order we can hold a tighter offset tolerance than a cast wheel needs to clear tight fender lips and big factory brake calipers.

Forged vs cast: why offset precision matters more at 17×9

A 17×9 wheel is wider than most factory wheels, which means more leverage on the hub and more unsprung weight sitting further out at the corner. A cast wheel built to a generic bore has to be made thicker to stay strong at that width, adding weight exactly where it hurts ride quality, steering feel and braking the most. Our wheels start as one solid block of 6061-T6 billet, compressed under a 10,000-ton press so the grain runs continuously through the spoke instead of the microscopic voids casting leaves behind — that lets us machine thinner, stronger sections and hold your exact offset instead of rounding to the nearest common spec. On a lifted truck running 35s or a track car chasing every millimeter of tire clearance, that precision is the difference between a wheel that tucks perfectly and one that rubs.

None of that happens at a company relabeling someone else’s casting. ANKUSI forges, machines and finishes every wheel in-house at our own factory in Guangzhou — CNC turning, multi-axis CNC milling and a dust-free automated paint line under one roof, at a production rate over 120,000 wheels a year. We hold IATF 16949 and ISO 9001 quality certification and test every design to JWL/VIA and DOT standards, with TÜV and SFI compliance available where a build calls for it. That is what lets us cut a 17×9 to a Jeep’s 71.5 mm bore one week and an 8-lug HD truck’s spec the next without drifting off either one.

Finishes for a 17×9 build

Matte and satin black remain the default on lifted trucks because they hide trail rash and disappear under an all-terrain tire, while bronze and gunmetal have become the go-to on overland-style builds for the contrast against a wrapped or painted body. On street and track cars, brushed and polished finishes show off the depth a wider wheel creates. We cut all of these in-house on a wheel already machined to your exact bore and offset, so the finish never forces a compromise on fitment.

Ordering a set of 17×9 rims that actually fit

Start with your vehicle, not the size chart: a Jeep Wrangler, a 6-lug truck and an 8-lug HD truck all use different bolt patterns and bores at the same 17×9 diameter. Tell us your exact make, model, year and tire size, and we confirm bolt pattern, bore and a safe offset range before we cut anything — if your platform’s bore varies by trim, we verify it against your VIN rather than guess. Our off-road forged wheel series covers the truck and Jeep side of this size, and our one-piece forged series covers the street and track builds. Every set is forged from 6061-T6 and cut to order. When you are ready to spec a set of forged 17×9 rims, contact us for a factory-direct quote with your vehicle and target tire size and we will confirm every number before we cut metal.
