Wheels / Drag Racing / Weld Racing 5-Spoke Mirror Milled Beadlock Forged Drag Racing Wheels - Ford Mustang / Chevrolet Corvette Fitment (5-Lug) – Design 21

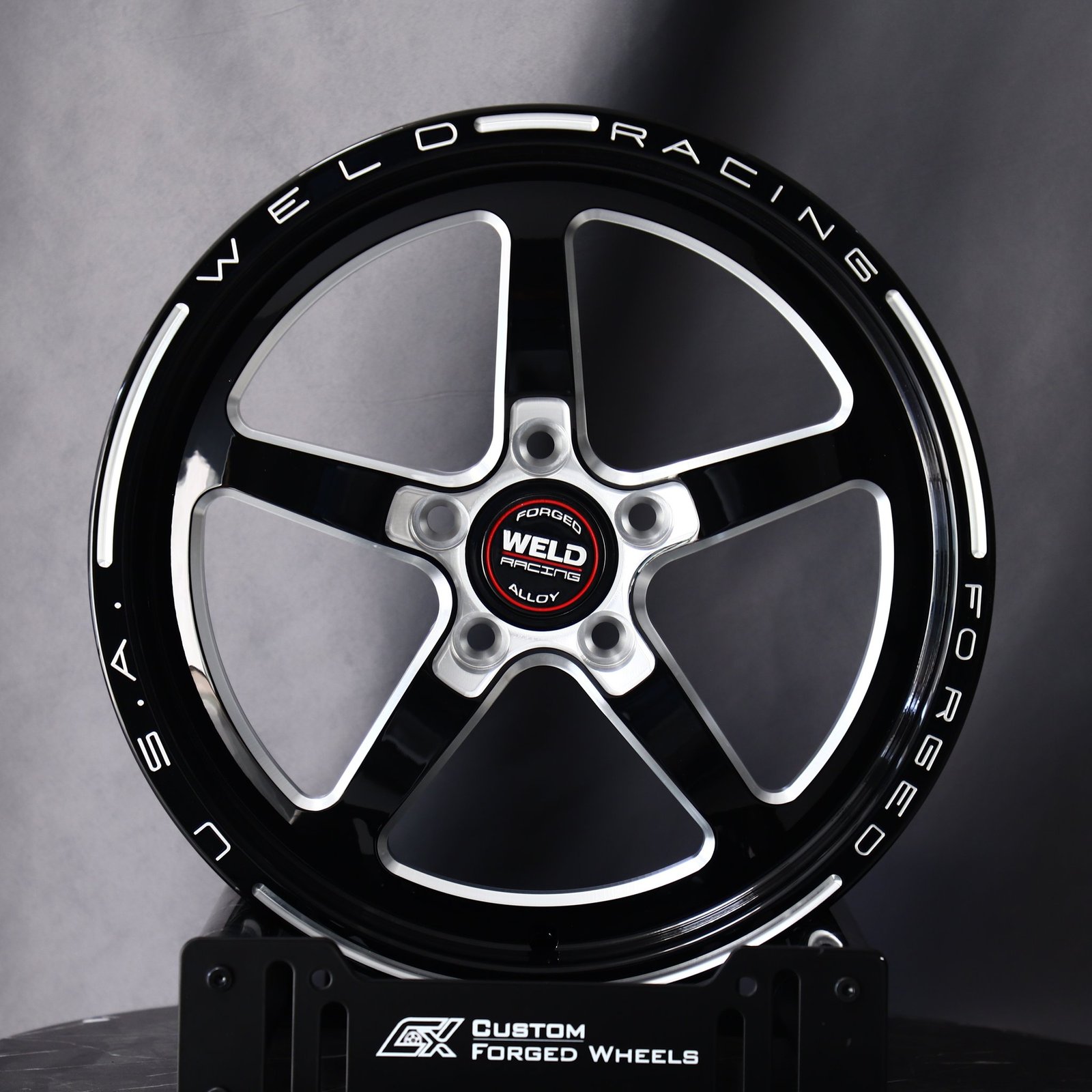

Ford Mustang wheels – Weld Racing 5-Spoke Mirror Milled Beadlock, front view

Drag Racing Forged Wheels

Weld Racing 5-Spoke Mirror Milled Beadlock Forged Drag Racing Wheels - Ford Mustang / Chevrolet Corvette Fitment (5-Lug) – Design 21

Weld Racing forged wheels in Custom Finish with a 5-spoke mirror milled face, forged to order at ANKUSI's Guangzhou plant. Bolt pattern, centre bore, diameter, width and offset are all machined for your exact vehicle — this listing covers 5-lug applications.

Category	Drag Racing
Bolt Pattern	5x114.3, 5x115, 5x120.65
Material	Forged Aluminum
Finish	Custom Finish
Reference price	From $180 per wheel Approximate. Final quote depends on size, finish and quantity.
Made to order	Custom size, offset, PCD & finish

Every ANKUSI wheel is forged to order. Send your vehicle and target specs and we'll confirm exact fitment before production.

Product Details

Weld Racing forged wheels finished in Custom Finish, built around a 5-spoke mirror milled face. Each wheel is forged from a solid 6061-T6 aluminium billet on ANKUSI's own 10,000-tonne press in Guangzhou, then CNC-machined, heat-treated and finished in-house under IATF 16949 and ISO 9001.

Fitment

Commonly ordered for Ford Mustang (5x114.3, 70.5mm centre bore); Chevrolet Corvette (5x120.65, 70.3mm centre bore); Dodge Challenger (5x115, 71.6mm centre bore). Every set is cut to order, so we machine the bolt pattern, centre bore and offset to match your car exactly — send us the year, model and brake setup and we confirm the spec before anything is cut.

Specification

Construction: forged 6061-T6 aluminium
Bolt pattern: 5-lug, machined to order
Diameter and width: cut to order
Offset: calculated for your vehicle, flush to aggressive
Finish: Custom Finish

Single sets through to full container orders. Tell us your vehicle and the stance you are after and we will quote.

Ford Mustang wheels and Chevrolet Corvette wheels: bolt patterns this design is cut for

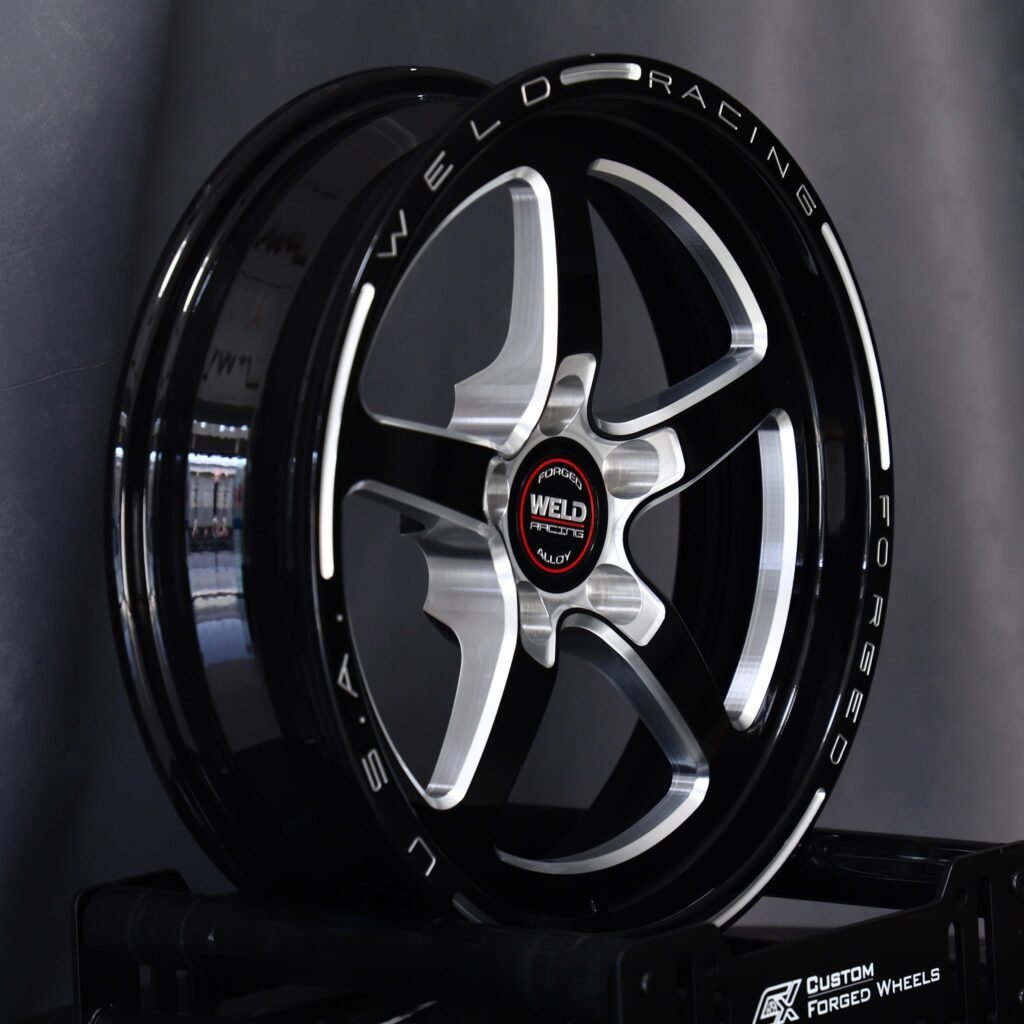

This Weld Racing 5-Spoke Mirror Milled Beadlock design is forged blank and machined to order, so the same wheel is made as 5x114.3 wheels or 5x115 / 5x120.65 wheels with the centre bore, width and offset your car needs. The vehicles below share the bolt pattern; send us your year and model and we confirm the exact spec before production.

Ford Mustang wheels – 5x114.3, 70.5 mm centre bore
Chevrolet Corvette wheels – 5x120.65, 70.3 mm centre bore
Dodge Challenger – 5x115, 71.5 mm centre bore (factory 20x9.5J at ET24 offset, front and rear)
Dodge Charger – 5x115, 71.5 mm centre bore (factory 20x11.0J at ET24 offset, front and rear)
Chevrolet Camaro 5th Gen – 5x120.65, 70.3 mm centre bore (factory 16x8.0J at ET50 offset, front and rear)
Tesla Model 3 – 5x114.3, 64.1 mm centre bore
Tesla Model Y – 5x114.3, 64.1 mm centre bore (factory F: 21x9.5J R: 21x10.5J)

Fitment Reference

Factory bolt pattern, center bore and wheel sizes by generation for the vehicles this design is most often ordered for. We machine the bolt pattern and center bore to your exact car.

Vehicle	Bolt pattern	Center bore	Factory wheels
Ford Mustang (2025)	5x114.3	70.5 mm	19x9.0J at ET50 offset, front and rear
Ford Mustang Shelby GT500 (2022)	5x114.3	70.5 mm	F: 20x11.0J R: 20x11.5J
Ford Mustang Shelby GT350R (2020)	5x114.3	70.5 mm	F: 19x11.0J R: 19x11.5J
Corvette Grand Sport X (2027)	5x120	66.9 mm	F 20x10.0J ET40 / R 21x13.0J ET50
Chevrolet Corvette Z06 (2023)	5x120	66.9 mm	F: 20x10.0J R: 21x13.0J
Chevrolet Corvette (2008)	5x120.65	70.3 mm	F: 18x8.5J R: 19x10.0J

Questions about this wheel

Will these forged wheels fit my Ford Mustang?

Yes. These rims are forged to order, so we machine the bolt pattern (5x114.3, 5x115, 5x120.65 for the vehicles listed) and the centre bore to your exact car. Send us the year, model and brake setup and we confirm fitment before production starts.

What sizes can I order?

Diameter, width and offset are cut to order on a 5-lug hub, from a factory-flush fit to an aggressive stance. Tell us the size you want and we check it against your car.

How much do these wheels cost?

The reference price starts from $180 per wheel. The final quote depends on size, finish and quantity, and we send it after confirming your fitment.

Can I choose a different color or finish?

Yes. Every wheel is finished to order. Tell us the color, polish or two-tone finish you want.

Is the beadlock ring included?

Yes. This is a beadlock design, so the bolted outer ring that clamps the tyre bead is part of the wheel.

Can custom forged wheels be returned?

Because each set is forged and machined to your order, we do not accept returns. That is why we confirm the fitment and specifications with you before production.
